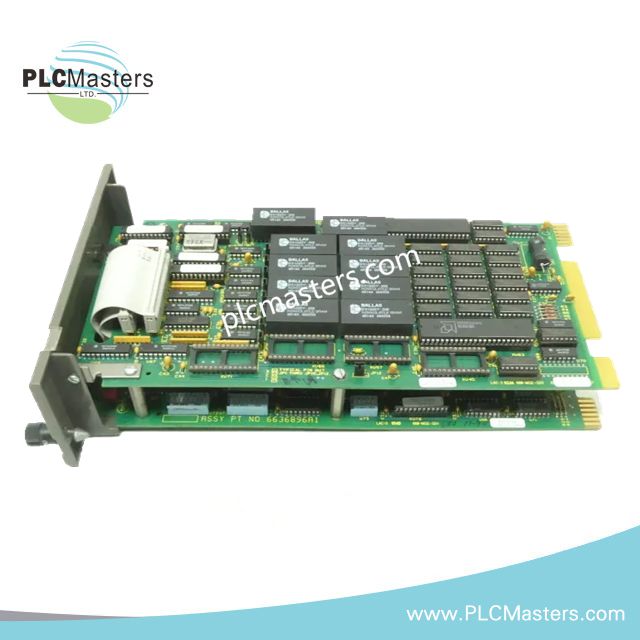

ABB INICT01 Infi 90 Bailey Transfer Module

Overview

The ABB INICT01 Transfer Module connects ABB’s Bailey Infi 90 and Symphony Plus DCS to external computers or SCADA systems. It serves as a gateway between the InfiNet fieldbus network and external devices. This module supports bidirectional data exchange for monitoring, configuration, and diagnostics. Moreover, its rugged design and redundant architecture ensure high reliability in critical industrial environments.

Technical Specifications

• Model Number: INICT01

• Function: InfiNet-to-Computer Transfer Module

• Communication Protocols: InfiNet (1 Mbps), Modbus RTU, ASCII

• Interface Ports:

• 1 × InfiNet port

• 2 × RS-485 ports

• Power Supply: 24 V DC ±15% with redundant inputs

• Operating Temperature: –40°C to +70°C

• Humidity Range: 5%–95% RH (non-condensing)

• Isolation Protection: 2500 Vrms galvanic isolation

• Surge Protection: Built-in transient voltage suppression

• Mounting Style: DIN rail or rack-mounted

• Dimensions (HxWxD): 210 × 105 × 250 mm (approx.)

• Weight: 0.6 kg

• Diagnostic Features: LED indicators for power, link, and error status

• Redundancy: Dual-channel communication and power inputs

• Software Configuration: ABB Control Builder M
