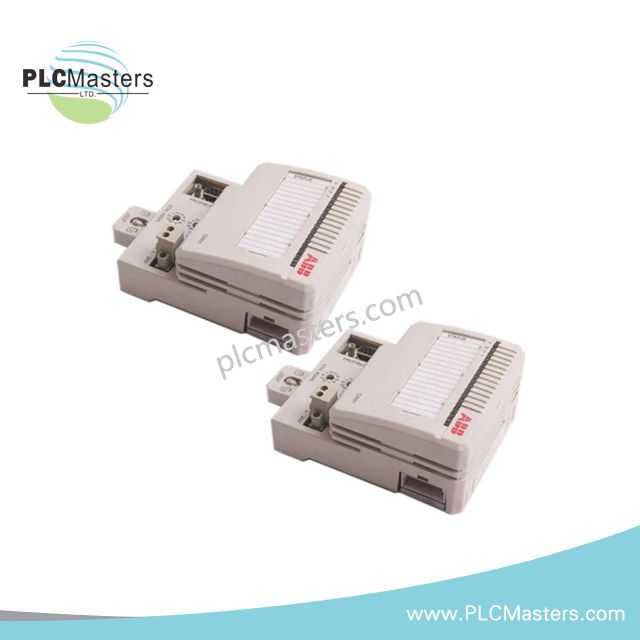

ABB NTRD02-A Digital I/O Termination Unit
$258.00
$520.00
Description
Product Description
The ABB NTRD02-A is a high-reliability Digital Input/Output Termination Unit engineered for industrial automation systems. Designed for both distributed control systems (DCS) and PLC-based architectures, this module ensures stable signal connectivity, robust protection, and seamless integration with ABB controllers and field devices.
Technical Specifications
| Specification | Details |
|---|---|
| Digital Inputs | 16 channels, voltage range 24 VDC, opto-isolated |
| Digital Outputs | 16 channels, relay/solid-state compatible, 24 VDC/0.5 A |
| Communication Interfaces | Profibus DP, Ethernet TCP/IP |
| Dimensions | 100 × 50 × 20 mm |
| Weight | 1 kg |
| Protection Features | Short-circuit protection, overload detection, overvoltage safeguard |
| Mounting | DIN-rail or panel mount compatible |
| Certifications | CE, RoHS |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% RH, non-condensing |
Key Features
-
Dual-function I/O: Handles both digital input and output signals for flexible automation control.
-
Integrated Protection: Prevents damage from electrical faults, improving system uptime.
-
Compact Footprint: 100 × 50 × 20 mm size simplifies installation in tight control panels.
-
Industrial-grade Durability: Rugged enclosure suited for harsh operational environments.
-
Seamless Compatibility: Directly integrates with ABB control systems and field devices.
-
Global Compliance: Fully certified to CE and RoHS standards.
Applications
-
PLC and DCS systems requiring secure digital I/O termination
-
Factory automation, energy management, and infrastructure monitoring
-
Integration with ABB field devices for control, monitoring, and signaling
FAQ / Comparison
Q: Can the NTRD02-A handle high-speed digital signals?
A: Yes, it supports fast digital switching compatible with PLC scan cycles.
Q: How does it differ from ABB NTRAO02-A?
A: The NTRAO02-A is focused on analog signal termination, while the NTRD02-A is fully digital with 16 inputs and 16 outputs.
Q: What protection mechanisms are included?
A: Integrated short-circuit, overload, and overvoltage protection safeguards both module and system components.
