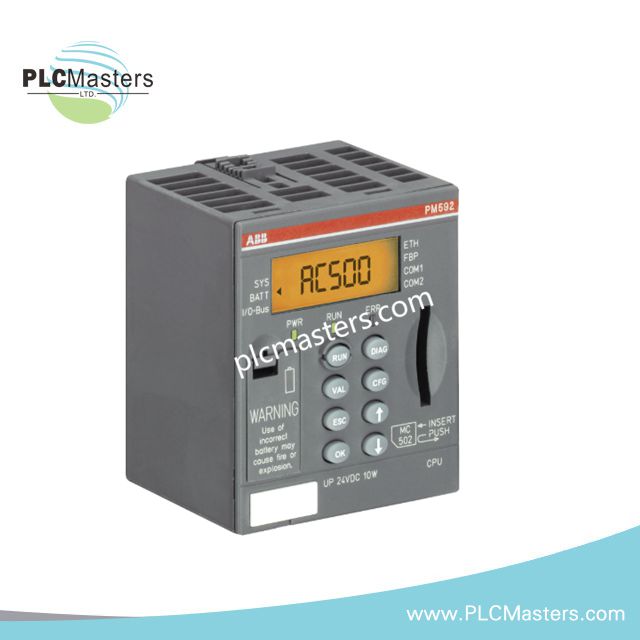

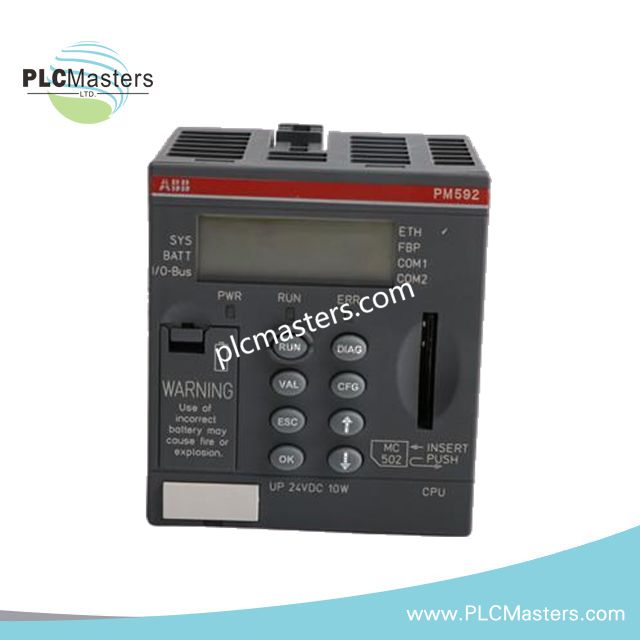

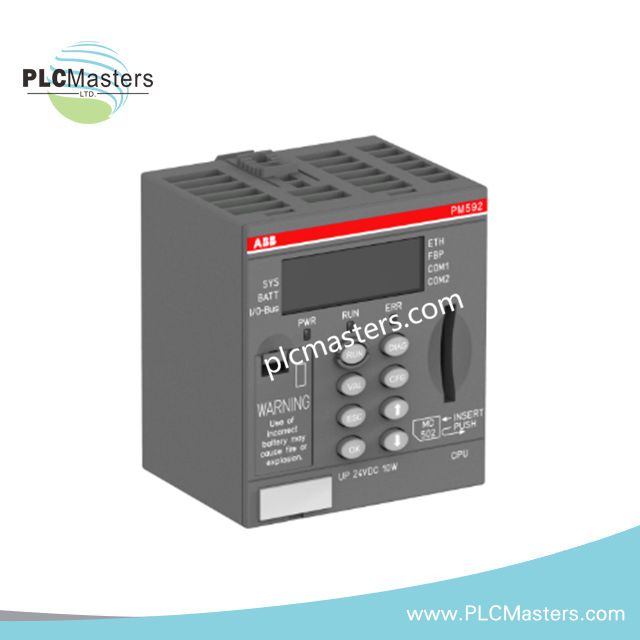

ABB PM592-ETH | 1SAP150200R0271 | AC500 Processor Module
$258.00
$520.00
Description
Overview
The PM592-ETH 1SAP150200R0271 is a high-performance CPU module from ABB’s AC500 PLC lineup. Engineered for demanding industrial applications, it delivers fast processing, extensive connectivity, and reliable real-time control. The module is ideal for complex automation projects requiring multitasking, large-scale data handling, and integration with modern industrial networks.
Technical Specifications
| Attribute | Details |
|---|---|
| Product ID | 3ABD00029646 |
| Type Designation | PM592-ETH |
| Product Type | AC500 Processor Module |
| Processor | ARM Cortex-A72 quad-core, 2.0 GHz, supporting hard real-time scheduling and multitasking |
| Memory | 512 MB RAM with ECC, 1 GB Flash program storage |
| Additional Storage | 4 GB onboard flashdisk, SD card slot up to 256 GB |
| Communication Interfaces | 2 × Ethernet (10/100/1000 Mbps, PROFINET/EtherCAT/Modbus TCP/OPC UA), 2 × RS232/RS485, FBP interface, 2 × USB 3.1 Gen2 (10 Gbps) |
| Display | Integrated LCD display for diagnostics and monitoring |
| Power Supply | 24 VDC ±15%, supports redundant supply |
| Operating Temperature | 0 … +60 °C |
| Storage Temperature | -40 … +70 °C |
| Protection Class | IP20 (cabinet installation required) |
| Dimensions | 120 × 120 × 100 mm |
| Weight | 0.153 kg |
| Controller Cycle Time | 0.000002 ms |
Key Features
-
Quad-core CPU optimized for real-time industrial control
-
Multiple interfaces for serial, Ethernet, and fieldbus communication
-
Supports PROFINET, EtherCAT, Modbus TCP, OPC UA protocols
-
High-capacity onboard memory with SD card expansion
-
Integrated display for system diagnostics and monitoring
-
Robust operation in wide temperature ranges for industrial environments
Applications
Ideal for distributed control systems, manufacturing automation, real-time data processing, and integration with AC500 expansion modules. Suitable for high-performance PLC applications in process, energy, and factory automation.
FAQ
Q: Can the module operate in harsh industrial environments?
A: Yes, with an IP20 rating, 0–60 °C operating temperature, and robust design, it is suited for control cabinets in industrial settings.
Q: What industrial protocols does PM592-ETH support?
A: PROFINET, EtherCAT, Modbus TCP, and OPC UA are fully supported.
Q: Can memory be expanded?
A: Yes, via the SD card slot supporting up to 256 GB.
