ABB PP235 3BSC690102R2 Process Panel HMI Interface
$258.00
$520.00
Description
Overview

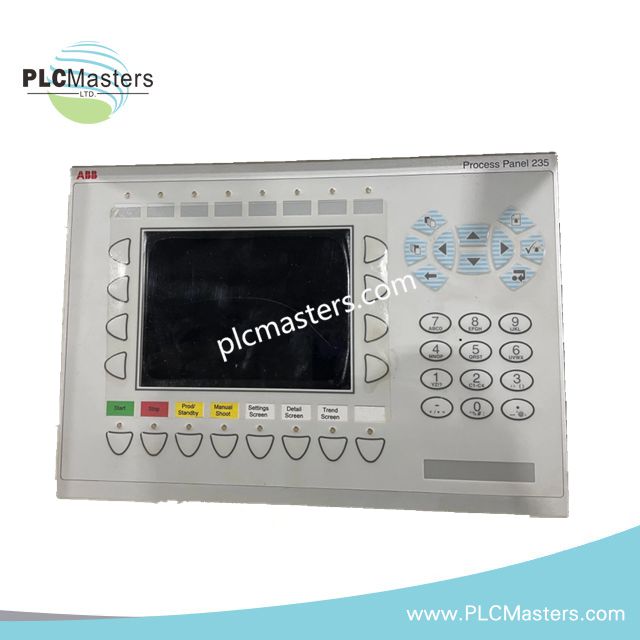

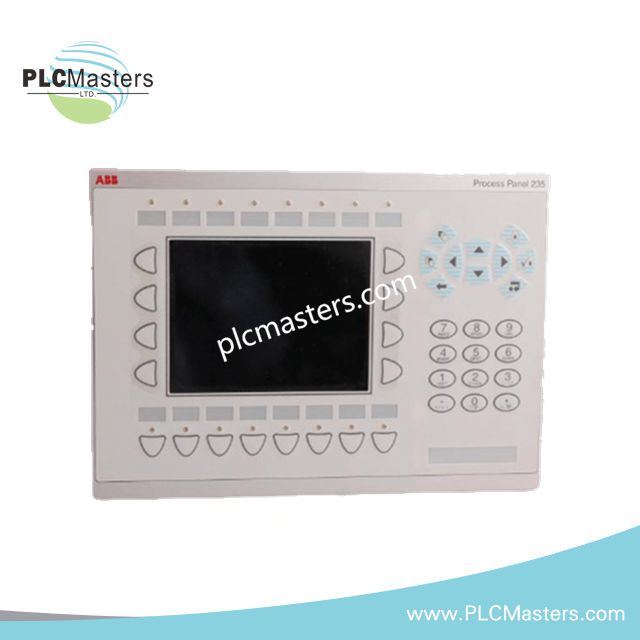

The PP235 (3BSC690102R2) process panel from ABB is a compact operator interface designed for integration with legacy control systems in the Panel 800 series. Built for industrial environments, this panel provides a dependable human-machine interface for monitoring and controlling automation processes in distributed control systems and SCADA infrastructures.
The unit is commonly supplied as a replacement component for existing installations where maintaining compatibility with earlier ABB control platforms is essential. Its hardware function keys and industrial communication interfaces allow reliable operator interaction without requiring extensive system redesign.
Key Technical Specifications
| Specification | Details |
|---|---|
| Model | PP235 (3BSC690102R2) |
| Manufacturer | ABB |
| Product Category | Operator Process Panel |
| Display Size | 5.7-inch operator interface |
| Input Interface | Integrated function keys for operator commands |

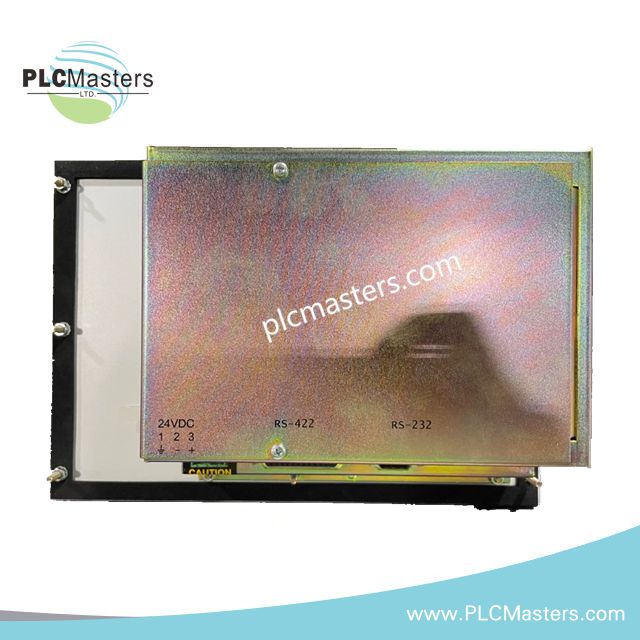

| Communication Interfaces | RS232, RS485, Ethernet |
| System Compatibility | ABB Panel 800 series control platforms |
| Installation Type | Panel-mounted operator interface |
| Package Dimensions | 20 × 18.7 × 10 cm |
| Weight | 1.64 kg |
| Compliance | Designed for service and maintenance of pre-2017 installations |
| Customs Tariff Code | 8471410000 |
Functional Characteristics
Operator-Focused Interface
The panel integrates a dedicated function-key layout, enabling direct operator interaction with process controls and system parameters.
Industrial Communication Compatibility
Multiple communication options, including serial and Ethernet interfaces, allow connection with controllers, DCS nodes, and supervisory systems.
Compact Mechanical Design
Its small footprint supports installation in existing control cabinets where panel space is limited.
Legacy System Support
The PP235 (3BSC690102R2) is frequently used as a spare component for maintaining installed ABB automation infrastructure.
Typical Application Areas
This process panel is typically used in environments where established control platforms remain operational and require reliable operator interfaces.
Common industries include:
-
Power generation and turbine control systems
-
Semiconductor manufacturing facilities
-
Electronics production plants
-
Chemical and process industries
-
Legacy ABB distributed control systems
FAQ
Is the PP235 still used in modern installations?
This panel is mainly deployed as a replacement component for existing systems rather than for new installations.
Can the panel communicate with standard PLC or DCS networks?
Yes. With RS232, RS485, and Ethernet interfaces, it can connect to a range of industrial control devices depending on the system configuration.
What is the recommended replacement if the model becomes unavailable?
ABB suggests upgrading to the PP836A series panel when system compatibility and project requirements allow.
