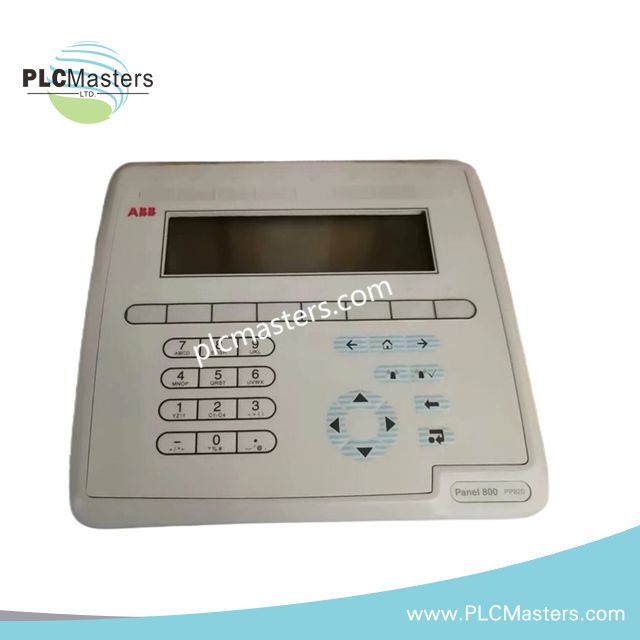

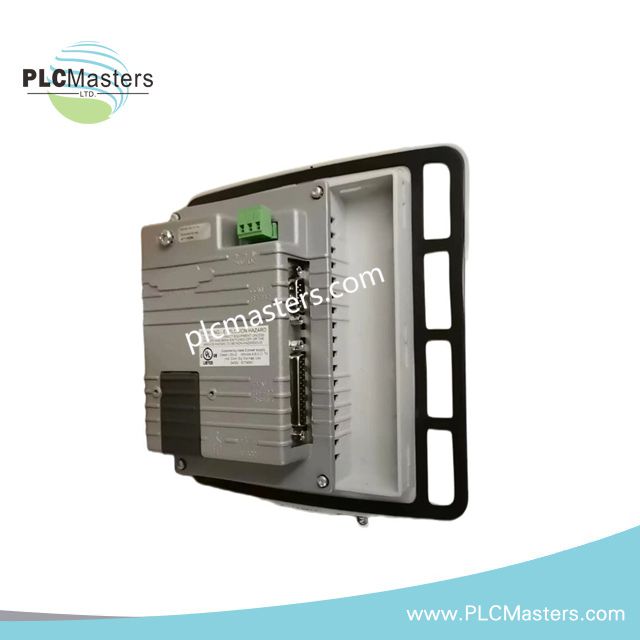

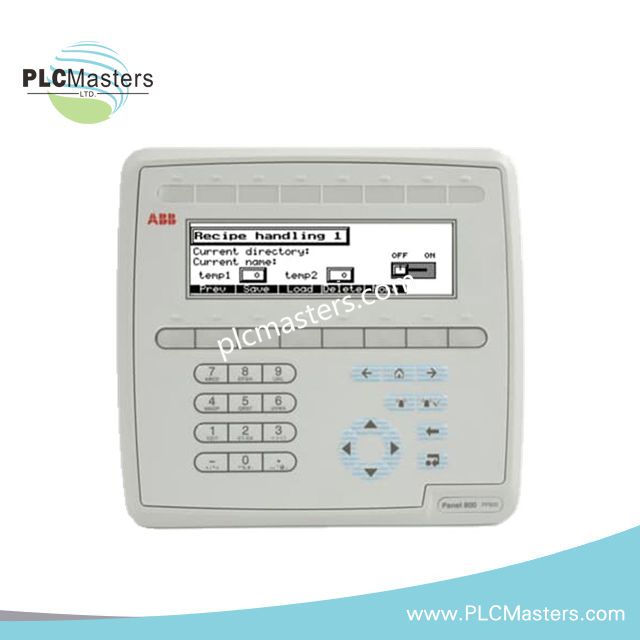

ABB PP820 3BSE042243R1 Operator Panel

Overview

The ABB PP820 Operator Panel is a rugged HMI designed for industrial automation and process control. It enables operators to monitor, control, and interact with machinery efficiently. Moreover, the panel integrates seamlessly with ABB and third-party PLCs, providing versatile system compatibility. Its durable metal housing and IP65/IP66 rating ensure reliable performance even in harsh industrial environments. In addition, programmable function keys allow operators to execute critical actions such as start, stop, reset, or emergency stop quickly.

Key Features

• Robust metal housing resistant to shock, vibration, and corrosion.

• Clear FSTN monochrome LCD display for precise visualization of process data.

• Customizable function keys for flexible control and operational efficiency.

• High-performance 32-bit CPU at 400 MHz for fast and responsive operation.

• 64 MB memory supports complex HMI configurations and data storage.

• Supports Modbus, Profinet, and integration with ABB AC800M and AC500.

• Compact panel-mount design for easy installation in industrial cabinets.

• Operates reliably across –10 °C to +60 °C temperature and 10–95% humidity.

Technical Specifications

• Display Type: FSTN monochrome LCD

• Resolution: 260 × 64 pixels

• Processor: 32-bit CPU, 400 MHz

• Memory Capacity: 64 MB

• Input Voltage: 24 VDC

• Power Consumption: 5 W

• Operating Temperature: –10 °C to +60 °C

• Operating Humidity: 10% to 95% non-condensing

• Dimensions: 202 × 187 × 6 mm

• Weight: 1.4 kg

• Mounting: Standard panel cut-out for panel-mount installation

• Communication Protocols: Modbus, Profinet, ABB AC800M, AC500, third-party PLCs

• Configuration Tools: ABB Control Builder and Panel Builder software

Typical Applications

• Factory automation for monitoring and machine supervision.

• Power generation and distribution for real-time operational control.

• Petrochemical and chemical plants requiring robust HMI interfaces.

• Water and wastewater treatment facilities for process monitoring.

• Packaging, material handling, and industrial conveyor systems.

FAQ

Q1: Can the PP820 integrate with non-ABB PLCs?
Yes, it supports Modbus and Profinet, allowing integration with third-party PLCs.

Q2: What is the operating temperature range?
The panel operates reliably from –10 °C to +60 °C.

Q3: Are the function keys customizable?
Yes, each key can be programmed for start, stop, reset, or emergency operations.

Q4: How is the PP820 mounted?
It uses standard panel-mount cut-out dimensions for secure installation.

Q5: What protection does the panel provide against dust and water?
It has an IP65/IP66 rating, making it dust-tight and resistant to water exposure.
