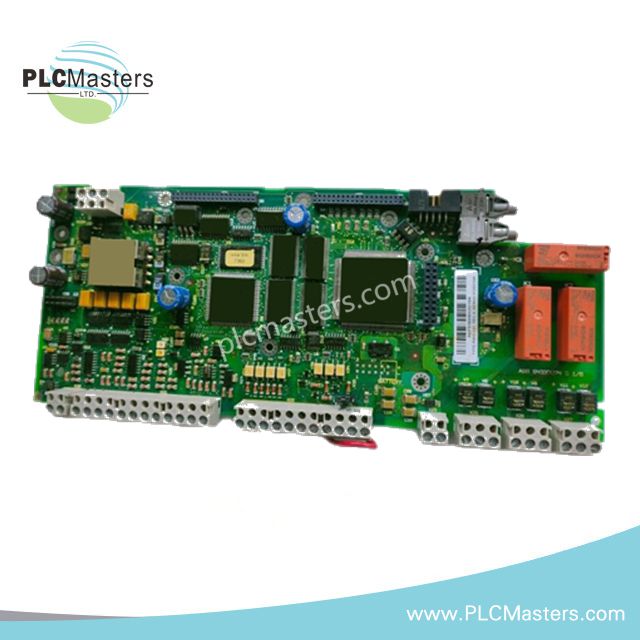

ABB RMIO-02C Power Control Board

Overview

The ABB RMIO-02C is a high-performance power control board built for industrial applications. It belongs to the trusted ACS800 series, offering seamless integration with ABB drives. The board ensures reliable control, precise data handling, and enhanced I/O capabilities. ABB engineered it for tough environments, fast signal processing, and long-term stability.

Technical Specifications

• Product Type: Power Control Board

• Series Compatibility: ABB ACS800

• Power Rating: Handles up to 50 kW

• Operating Voltage: 200V – 500V AC

• Input Type: 3-phase AC current

• Material: Aluminum alloy for strength and heat dissipation

Dimensions and Weight

• Dimensions: 2.2 cm × 12.4 cm × 12.6 cm


• Weight: 0.1 kg

Environmental Conditions

• Operating Temperature: -10°C to +55°C

• Maintenance Interval: Every 10,000 hours

Connectivity and I/O

• Connector Standard: IEC 60309

• Interface Ports: 3 female connectors

• Extended I/O: Supports additional I/O for the ACS800

• Relay Outputs: Provide secure industrial switching

• Pin Headers: Simplify external module integration

Performance Hardware

• Processor Chipset: Built with Intel chipset

• Functionality: Ensures rapid and stable data processing
