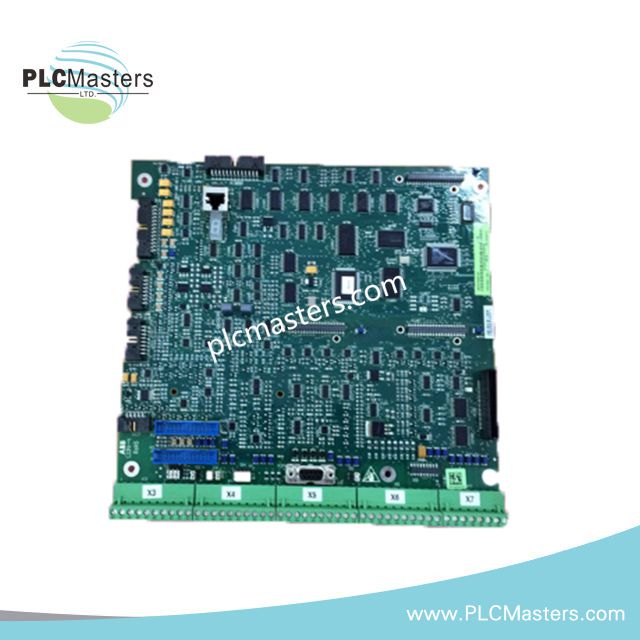

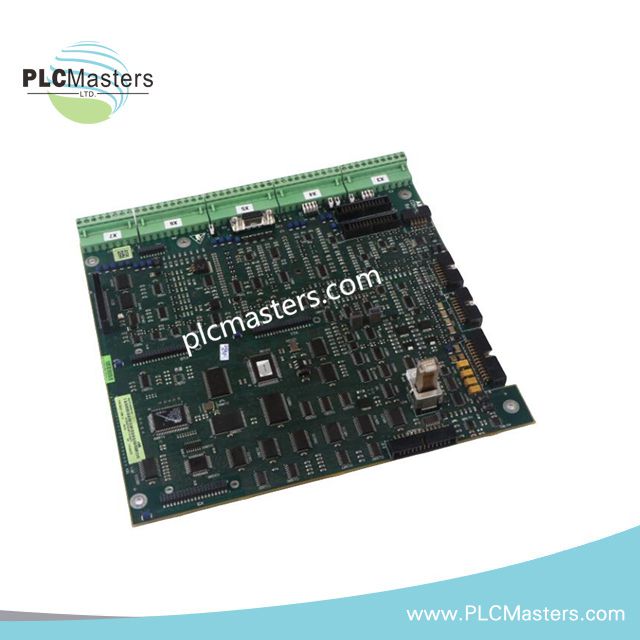

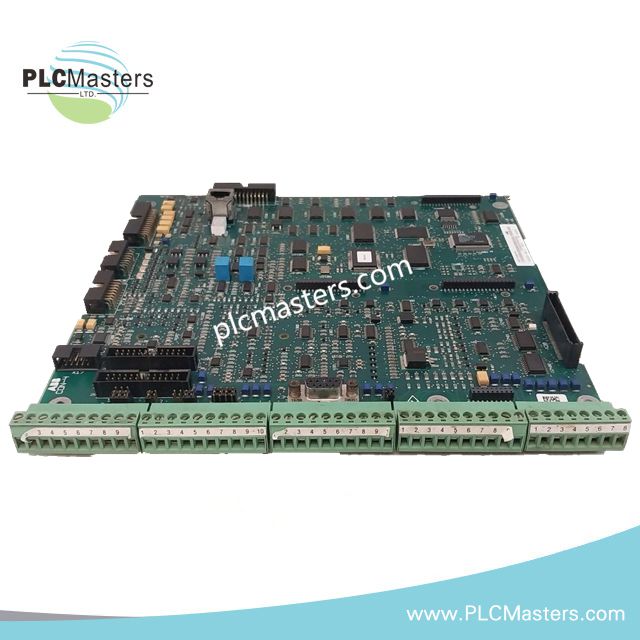

ABB SDCS-CON-4-COAT-ROHS Coated DC Drive Control Board
$258.00
$520.00
Description
Overview
The ABB SDCS-CON-4-COAT-ROHS is a robust, conformally coated interface module designed for ABB SDCS (Static DC Converter System) drives. It ensures reliable signal communication between the drive controller and external automation devices such as PLCs, sensors, and actuators, while offering enhanced resistance to moisture, dust, and corrosive environments.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 3ADT313900R1501 |
| Model | SDCS-CON-4-COAT-ROHS |
| System Compatibility | ABB SDCS DC Drive Systems |
| Input Power | 12 VDC typical (dependent on drive integration) |
| Dimensions | 150 × 100 × 30 mm |
| Weight | 0.52 kg |
| Operating Temperature | –40 °C to +85 °C |
| Protection | Conformal coating for moisture, dust, and corrosion resistance |
| Compliance | RoHS Directive (EU) |
Key Features
-
Conformal Coating: Provides long-term protection in harsh industrial environments including high humidity and chemical exposure.
-
Signal Interfacing: Facilitates stable communication between DC drive controllers and external devices.
-
Continuous Reliability: Engineered for uninterrupted operation in demanding industrial DC drive applications.
-
Environmental Compliance: Fully RoHS-compliant, free from restricted hazardous substances.
Applications
-
Industrial DC Drives: Core control module for ABB SDCS series.
-
Heavy Industry: Steel mills, chemical processing plants, and paper manufacturing facilities.
-
Automation Integration: Bridges signals between drives and PLCs, sensors, or actuators.
-
Marine & Offshore: Operates reliably in high humidity or corrosive environments.
FAQ
Q: Can this module be used with non-ABB drives?
A: No, compatibility is limited to ABB SDCS series. Using it with other drives may lead to malfunction.
Q: Does the conformal coating eliminate all maintenance?
A: It reduces maintenance needs, but connectors should still be inspected periodically for optimal performance.
