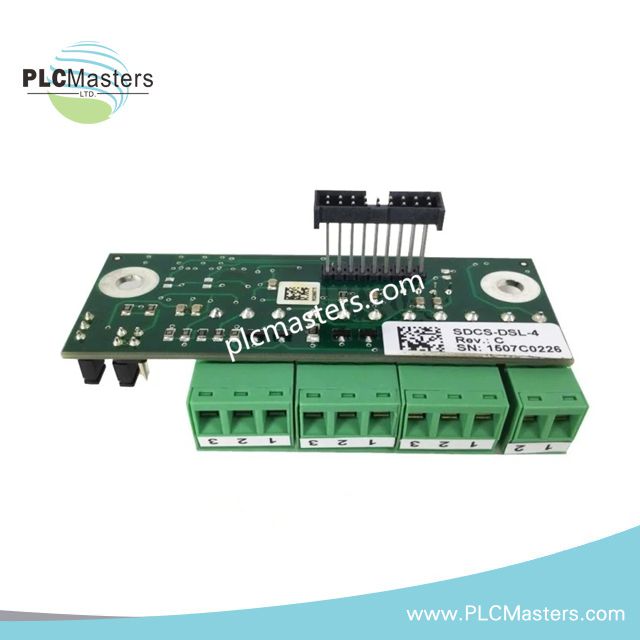

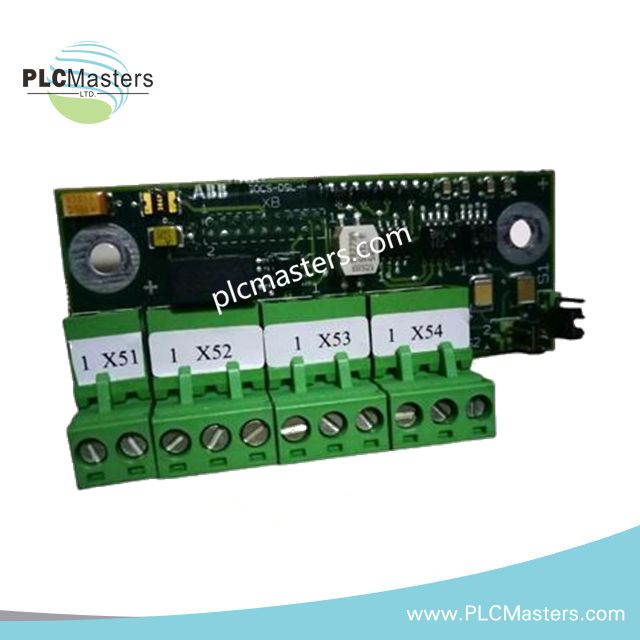

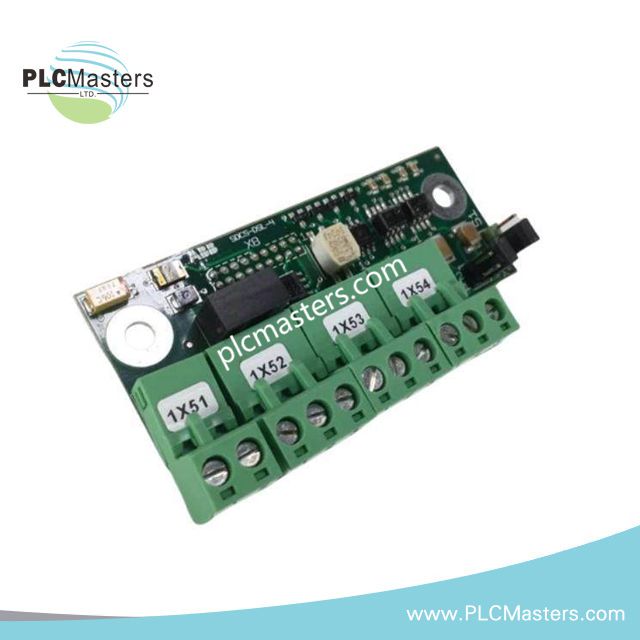

ABB SDCS-DSL-4 Serial Communication Interface Board
$198.00
$430.00
Description
Overview
The ABB SDCS-DSL-4 is a high-performance serial communication interface board. It connects ABB DCS800 drives to field devices. The board enables real-time data exchange using the DCSLink protocol. It ensures precise motor coordination and inter-drive synchronization. This module is essential for master-follower drive applications and fieldbus integration. Shielded twisted-pair cables enhance noise immunity and signal reliability. Users configure the board via ABB DriveWare or CoDeSys software. Its compact design fits into ABB drive units, sizes D1–D7.
Technical Specifications
-
Model: SDCS-DSL-4
-
Part Number: 3ADT200005R0001
-
Function: Serial Communication Interface Board
-
Protocol Supported: DCSLink
-
Communication Type: RS422 / RS485
-
Supported Drive Series: ABB DCS800
-
Applications: Master-follower synchronization, inter-drive communication, fieldbus integration
-
Pulse Configuration: Supports 12-pulse rectifier setups
-
Installation: Integrated into ABB drive units (sizes D1–D7)
-
Cable Requirements: Shielded twisted-pair cables recommended for noise immunity
-
Software Configuration: Via ABB DriveWare or CoDeSys
-
Dimensions: Standard module size, fits into drive control units
-
Operating Temperature: -10°C to 55°C (14°F to 131°F)
-
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
-
Protection: IP20
