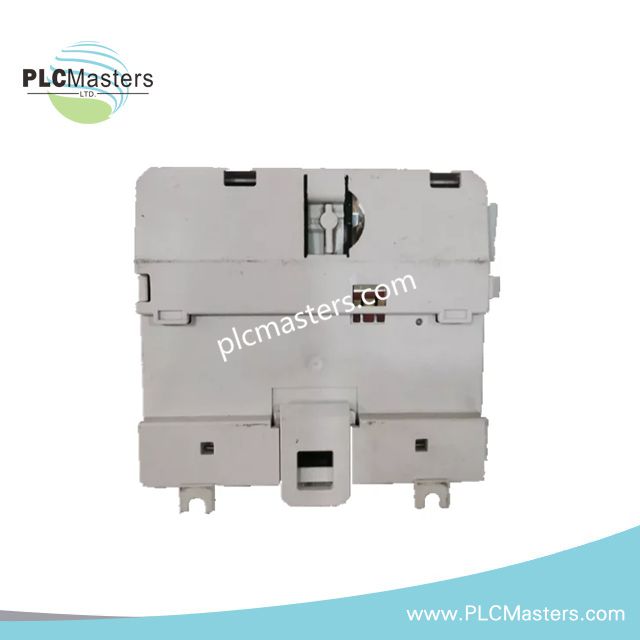

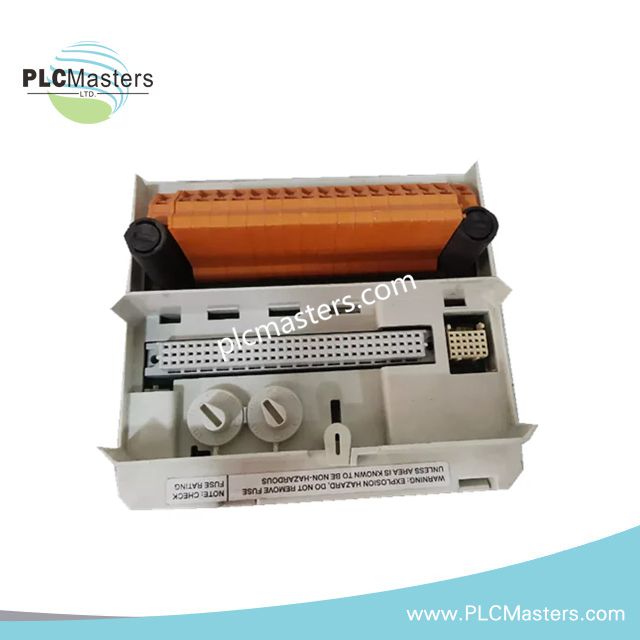

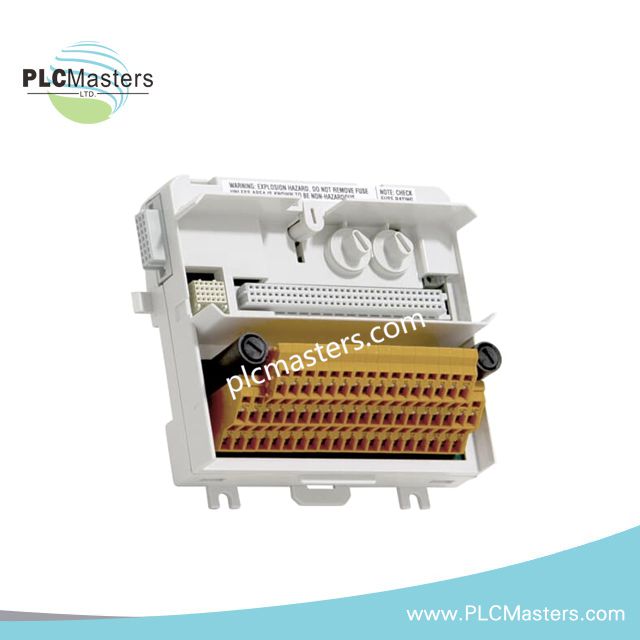

ABB TU833 3BDH000395R0001 Termination Unit
$258.00
$520.00
Description
Product Description
The ABB TU833 (3BDH000395R0001) is a precision termination unit engineered for the ABB AC800M controller series, providing a reliable interface for S800 I/O modules via the CI830F communication interface. Designed for robust industrial environments, this unit ensures stable data transfer, mechanical support, and efficient wiring for distributed automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Supported Communication Module | CI830F |
| Bus Type | S800 I/O bus |
| I/O Connections | Up to 16 channels (2 terminals per channel) |
| Process Power | 4 A (single), 6.3 A total per module |
| Field Wiring Terminals | Crimp Snap-in connectors, one wire per terminal |
| Acceptable Wire Sizes | Solid/Stranded: 0.2–2.5 mm² (24–12 AWG) |
| Stripping Length | 6 mm |
| Maximum Current per Channel | 2 A |
| Maximum Process Connection Current | 5 A |
| Mounting | DIN rail, bidirectional |
| Dimensions | 126 × 64 × 105 mm (including connectors) |
| Weight | 0.28 kg |
| Operating Temperature | 0 to +55 °C (+32 to +131 °F) |
| Storage Temperature | –40 to +70 °C (–40 to +158 °F) |
| Environmental Rating | IP20 |
| Standards & Certifications | CE, UL 61010-1, EN 61010-2-201, cULus C1 Div 2, ATEX Zone 2, Marine: DNV-GL, BV, LR |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Pollution Degree | 2 (IEC 60664-1) |
| Corrosion Protection | ISA-S71.04: G3 |
| Equipment Class | Class I (Earth Protected, IEC 61140) |
Key Features
-
Provides secure and precise communication between AC800M controllers and distributed S800 I/O modules
-
Compact DIN rail design optimizes control cabinet space
-
Easy plug-in connections for rapid replacement or maintenance
-
Industrial-grade durability for continuous operation in harsh conditions
-
Supports scalable I/O expansion for complex process control systems
Applications
Ideal for use in chemical processing, power generation, semiconductor manufacturing, and other automated process control systems requiring reliable distributed I/O connectivity.
FAQ
Q: Can TU833 handle redundant I/O setups?
A: The unit supports single-channel I/O; redundancy depends on the connected CI830F modules.
Q: Is the TU833 compatible with all S800 I/O modules?
A: It supports a wide range including AI810, AI815, AI820, AI830, AO810, AO820, DI810, DI814, DO810, DO815, DP820, and DP840.
Q: What is the maximum ambient operating temperature?
A: Approved for operation up to +55 °C, with standard industrial protection.
