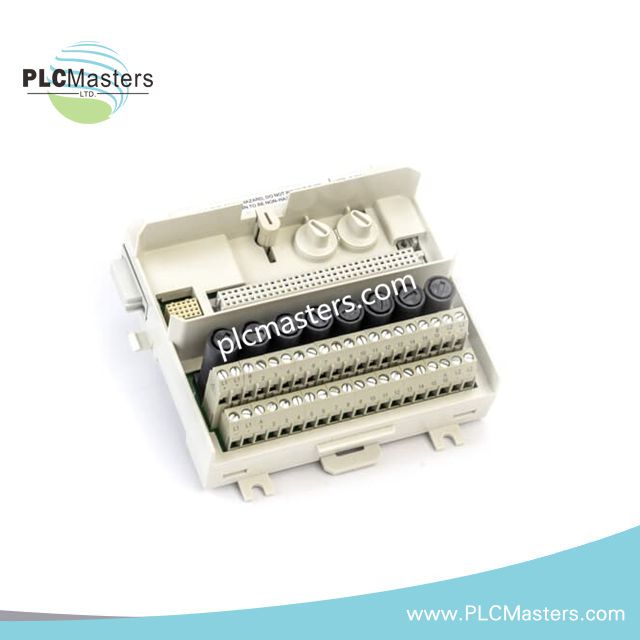

ABB TU838 3BSE008572R1 Terminal Block Module

ABB TU838 Terminal Block Module

Article Number: 3BSE008572R1
Type: Extended

General Information

• Connection: Terminal block

• Channels: 16

• Voltage: 50 V

• Mounting: Both directions

• Maximum Ambient Temperature: 55 ºC (131 °F)

• Use With I/O Modules: AI810, AI815, AI845, DI810, DI811, DI814, DI830, DI831, DI840, DO814

• Process Connections: 40

• I/O Configuration: Single I/O, supports up to 16 channels

• Sensor & Process Power:

• 8 fused sensor power outlets

• 4 Process power

• 12 Process power (0 V)

Electrical Specifications

• Maximum Current per I/O Channel: 3 A

• Maximum Current per Process Connection: 10 A

• Acceptable Wire Sizes:

• Solid: 0.2 – 4 mm²

• Stranded: 0.2 – 2.5 mm² (24 – 12 AWG)

• Recommended Torque: 0.5 – 0.6 Nm

• Stripping Length: 7 mm

• Dielectric Test Voltage: 500 V a.c.

Environment and Certifications

• CE Mark: Yes

• Electrical Safety Standards: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201

• Hazardous Location Certifications:

• C1 Div 2 cULus

• C1 Zone 2 cULus

• ATEX Zone 2

• Marine Certifications: ABS, BV, DNV-GL, LR

• Operating Temperature: 0 to +55 °C (32 to 131 °F) — approvals for +5 to +55 °C

• Storage Temperature: -40 to +70 °C (-40 to +158 °F)

• Pollution Degree: 2 (IEC 60664-1)

• Corrosion Protection: ISA-S71.04: G3

• Relative Humidity: 5 to 95 %, non-condensing

• Protection Class: IP20 (IEC 60529)

• Mechanical Operating Conditions: IEC/EN 61131-2

• EMC Compliance: EN 61000-6-4, EN 61000-6-2

• Overvoltage Categories: IEC/EN 60664-1, EN 50178

• Equipment Class: Class I (earth protected, IEC 61140)

Dimensions & Weight

• Width: 126 mm (5 in.) including connector, 120.5 mm edge-to-edge installed

• Depth: 64 mm (2.52 in.) including terminals

• Height: 110 mm (4.3 in.)

• Weight: 0.26 kg (0.57 lbs)
