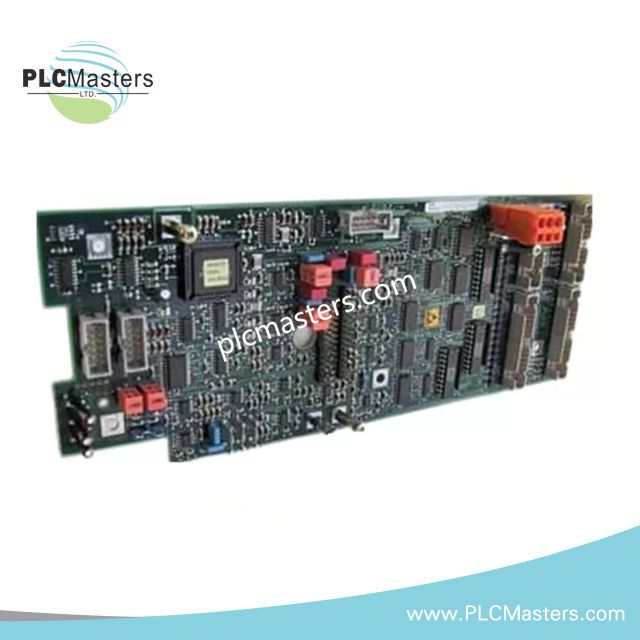

ABB UNS1860B 3BHB001336R0001 Interface & Processor Board
$258.00
$520.00
Description
Overview
The ABB UNS1860B (3BHB001336R0001) is a high-performance industrial interface and processor board designed for ABB automation and drive systems. Engineered for demanding environments, it provides versatile analog and digital I/O, PROFIBUS DP/V1 communication, and robust electrical isolation, ensuring reliable operation in control cabinets and field installations.
This dual-purpose board can function as either a dedicated interface or a processor module depending on configuration, making it ideal for flexible system integration.
Technical Specifications
| Feature | Specification |
|---|---|
| Operating Voltage | 220 V AC |
| Communication Protocol | PROFIBUS DP/V1 |
| Analog Inputs | 8 channels: voltage, current, RTD, thermocouple |
| Digital I/O | 8 channels, 24 VDC sink/source |
| Isolation | Integrated galvanic isolation for signal and ground protection |
| Dimensions | 295 × 70 × 220 mm |
| Weight | 0.5 kg |
| Mounting | Panel-mount compatible |
| Certifications | CE, UL |
| Operating Temperature | Industrial range: –40 °C to +70 °C |
| Storage Temperature | –40 °C to +70 °C |
| Enclosure | Industrial-grade with isolation protection |
Key Features
-
Dual functionality: Operates as interface or processor board.
-
Flexible I/O support: Handles multiple analog signals (voltage, current, RTD, thermocouple) and digital channels.
-
Industrial connectivity: PROFIBUS DP/V1 ensures seamless communication with ABB drives and controllers.
-
Noise protection: Electrical isolation safeguards against ground loops and signal interference.
-
Compact design: Optimized for space-limited panels.
Applications
-
Drive control systems for ABB industrial motors and drives
-
Process automation in chemical, energy, and water treatment plants
-
Precision measurement systems for analog sensor integration
-
Distributed Control Systems (DCS) requiring I/O expansion
FAQ
Q: Can the UNS1860B handle both analog and digital signals simultaneously?
A: Yes, it supports 8 analog channels and 8 digital I/O channels concurrently.
Q: Is the board suitable for high-temperature industrial environments?
A: Yes, it is rated for –40 °C to +70 °C operation.
Q: How does it integrate with ABB drives?
A: PROFIBUS DP/V1 protocol ensures direct communication with ABB AC and DC drive controllers.
Q: Are there similar ABB models?
A: Comparable models include ABB UNS1860A and UNS1860C, which differ in I/O capacity and form factor.
