Allen-Bradley 1440-TB-B XM Terminal Base Module

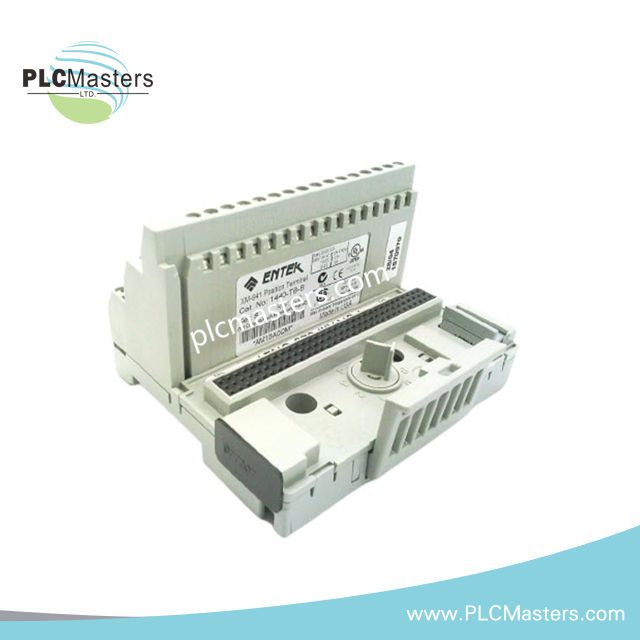

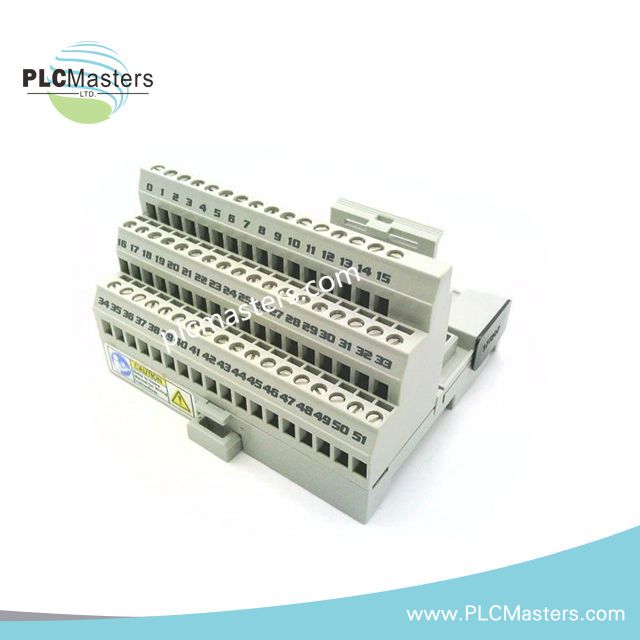

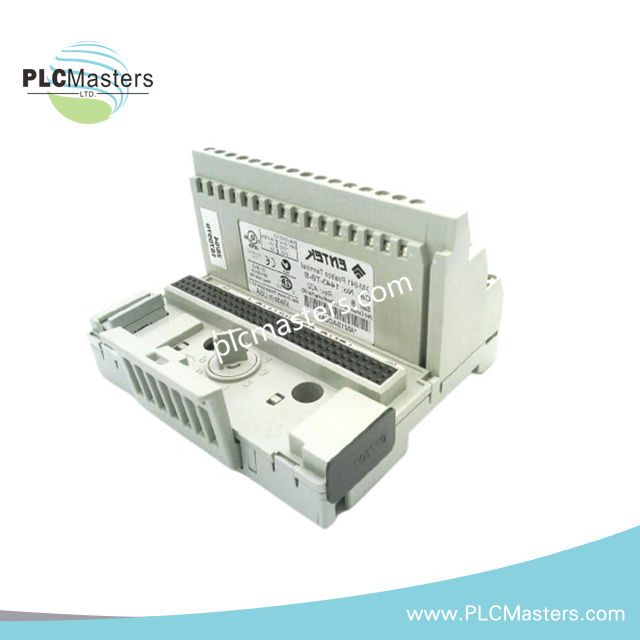

Configured for mounting, power distribution, and DeviceNet signal routing in XM condition monitoring networks, the Allen-Bradley 1440-TB-B (1440-TB Terminal Base Module) provides direct electrical execution. The module supports XM-220 and XM-320 measurement modules through screw clamp field terminations, expansion circuit continuity, and 24 VDC backplane power distribution across XM series assemblies.

Suffix Breakdown & Model Matrix

The provided documentation identifies the unit as a fixed configuration terminal base module. No additional suffix segmentation or configurable ordering matrix is specified for the 1440-TB-B model.

Hardware Specifications

DeviceNet Backplane and Expansion Circuit Integration

The 1440-TB-B terminal base distributes DeviceNet communication and field power between interconnected XM modules through integrated expansion interconnect paths. The base assembly passes 24 VDC primary supply and DeviceNet bus continuity without requiring external jumper wiring between adjacent modules.

XM module expansion density depends on aggregate DeviceNet current loading and total backplane power demand. Screw clamp terminations maintain direct conductor retention under vibration conditions common in rotating machinery monitoring installations. Module replacement procedures require isolation of field power before removing mounted XM hardware from the terminal base.

Frequently Asked Questions

Q: Does the 1440-TB-B support hot-swapping of XM modules while energized?
A: The supplied documentation does not define hot-swap capability. Standard field practice requires removal of system power before installing or removing XM modules from the terminal base.

Q: What communication network is passed through the terminal base?
A: The module passes DeviceNet communication and DeviceNet power between connected XM measurement modules.

Q: Can the terminal base operate as a standalone monitoring module?
A: No. The 1440-TB-B functions as a mechanical and electrical support platform for compatible XM series measurement modules.

Field Installation Guidelines

• Mount the terminal base on grounded DIN rail or rigid panel surfaces to reduce vibration-induced terminal movement.

• Separate DeviceNet communication cabling from high-voltage motor conductors to reduce electromagnetic coupling.

• Tighten screw clamp terminals according to conductor size and terminal manufacturer practices to prevent intermittent signal continuity.

• Verify 24 VDC supply polarity before energizing attached XM modules.

• Maintain shield grounding at a single designated grounding location to minimize ground loop current paths.

• Inspect expansion interconnect alignment before inserting adjacent XM modules into the terminal base assembly.
