Allen-Bradley 1444-TSCX02-02RB Tachometer Signal Conditioner Expansion Module
$123.00
$320.00
Description

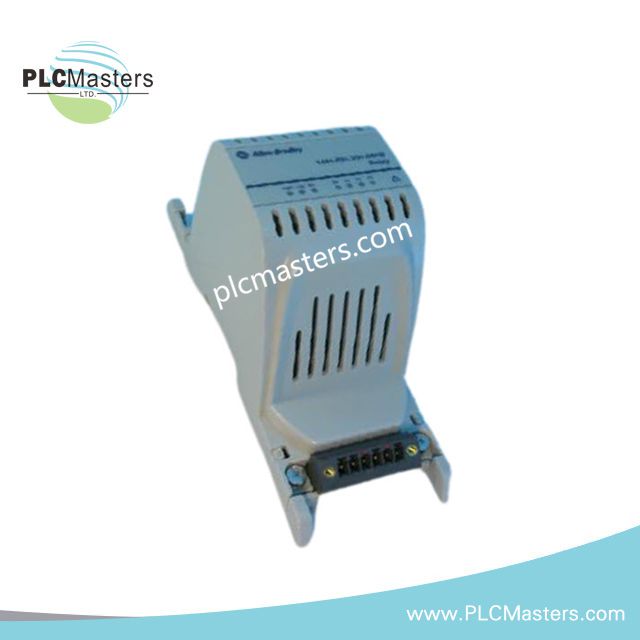

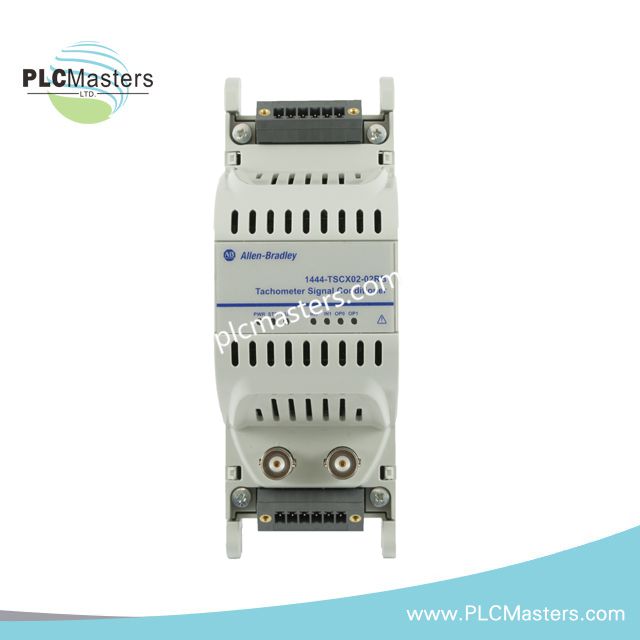

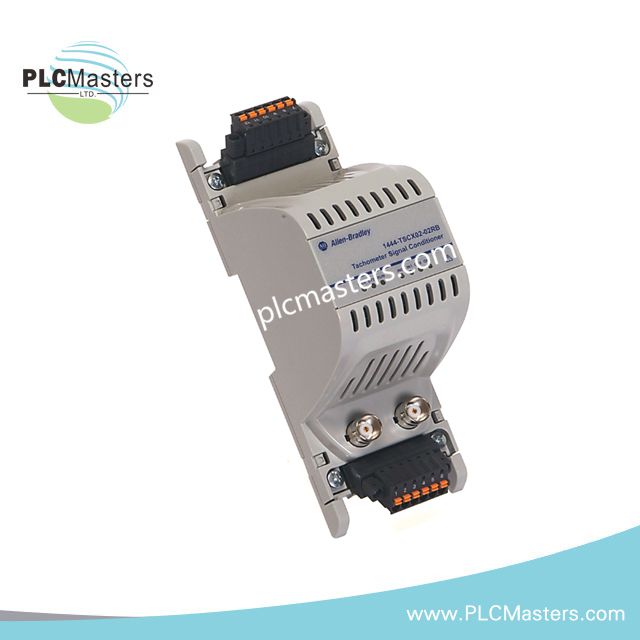

Allen-Bradley 1444-TSCX02-02RB Tachometer Signal Conditioner Expansion Module
Configured for tachometer signal conditioning in the Dynamix 1444 Integrated Machinery Monitoring System, the Allen-Bradley 1444-TSCX02-02RB (1444-TSCX02-02RB Tachometer Signal Conditioner Expansion Module) provides direct electrical execution for speed, phase, and rotational signal processing across Dynamix 1444 platforms.
Suffix Breakdown & Model Matrix
-
2 tachometer input channels
-
2 TTL buffered speed outputs
-
4 conditioned outputs
-
2 local bus outputs
-
Requires terminal base (B) and removable plug connectors
-
Must be connected to a 1444 series Dynamic Measurement Module
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1444-TSCX02-02RB |
| Brand | Allen-Bradley |
| Weight | 1.46 lbs |
| Dimensions | 65 × 54 × 154 mm |
| Operating Temp | -25 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Supply Voltage | 18–32 V DC |
| Module Type | Tachometer Signal Conditioner Expansion Module |
| Input Channels | 2 |
| Supported Sensors | TTL signals, eddy current probes, NPN/PNP proximity switches, magnetic pickups |
| Buffered Outputs | 2 TTL speed outputs |
| Conditioned Outputs | 4 |
| Communication Network | 1444 series local bus |
| Speed Measurement Range | 1 RPM to 1,200,000 RPM depending on configured range |
| Accuracy | ±0.2 RPM to ±160 RPM depending on speed range |
| Mounting | DIN-35 rail |
| Vibration Resistance | 2 m/s² up to 500 Hz |
| Certifications | CE, C-UL-US, RCM, ATEX, IECEx, KC |
| Compliance | IEC 60068, IEC 61000 |
| Safety Rating | SIL 2 |
| Industry Compliance | API 670 |
Deterministic Speed Signal Processing Architecture
The 1444-TSCX02-02RB supports Profinet / EtherNet/IP deterministic networks through synchronized local bus communication with Dynamix 1444 monitoring modules. Internal conditioning circuitry processes raw tachometer signals from multiple sensor technologies while maintaining stable pulse shaping and phase reference timing. Firmware compatibility across the 1444 platform permits expansion without modification to primary measurement module configuration.
Frequently Asked Questions (FAQ)
Q: Can the module operate independently without a Dynamic Measurement Module?
A: No. The 1444-TSCX02-02RB must be connected to a compatible Dynamix 1444 Dynamic Measurement Module through the local bus.
Q: Which tachometer sensor types are supported?
A: The module accepts TTL voltage signals, eddy current probe systems, magnetic pickups, and NPN/PNP proximity sensors.
Q: Does the module provide raw signal outputs in addition to conditioned outputs?
A: Yes. Two buffered TTL outputs are available for external monitoring or diagnostic use.
Field Installation Guidelines
-
Install the module on the specified terminal base (B) before energizing the system.
-
Route tachometer signal cables separately from relay and motor power wiring.
-
Use shielded cabling for low-level speed sensor signals and terminate shields at one grounding point only.
-
Verify local bus connector alignment before applying supply voltage.
-
Maintain enclosure vibration limits within specified operating conditions to prevent intermittent terminal contact.
