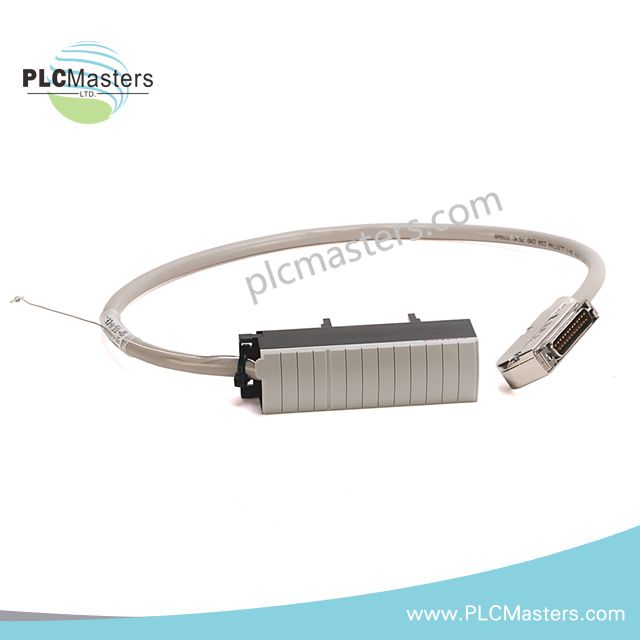

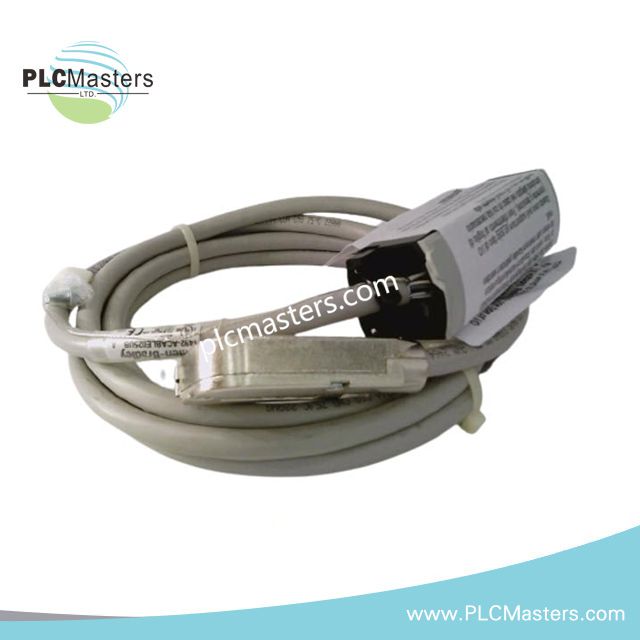

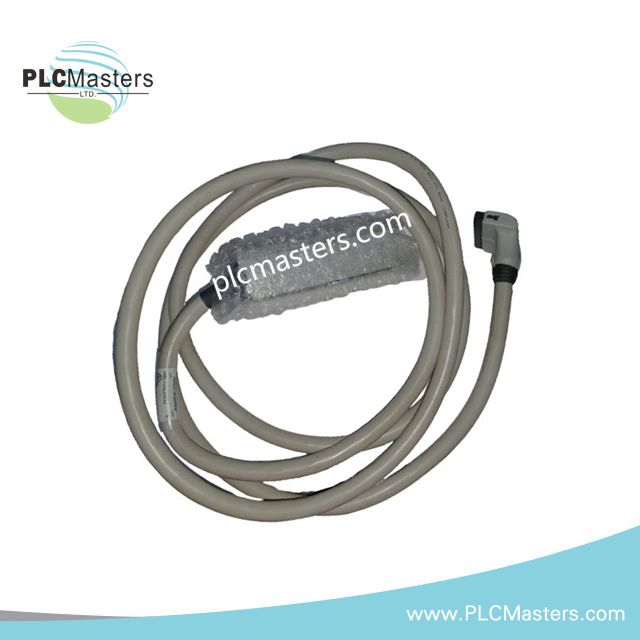

Allen-Bradley 1492-ACABLE025UB 1492 I/O Wiring Systems Pre-assembled Cable
$123.00
$320.00
Description
Allen-Bradley 1492-ACABLE025UB 1492 I/O Wiring Systems Pre-assembled Cable
The Allen-Bradley 1492-ACABLE025UB, also cataloged as the 1492-ACABLE025UB Pre-assembled I/O Cable, operates as a dedicated hardware component for connecting PLC I/O modules to terminal blocks or interface modules within Rockwell Automation control architectures. The cable provides shielded signal paths for analogue I/O, RTD, and thermocouple modules, ensuring consistent electrical performance over 2.5 meters.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1492-ACABLE025UB |
| Brand | Allen-Bradley |
| Product Series | 1492 I/O Wiring Systems |
| Product Type | Pre-assembled I/O Cable |
| Origin | USA |
| Cable Length | 2.5 meters |
| Connector Type | D-sub style to terminal block interface |
| Shielding | Yes, for noise immunity |
| Voltage Rating | 300 V |
| Current Rating | 1 A per conductor |
| Conductor Size | 24 AWG |
| Insulation Material | PVC |
| Color | Black |
| Operating Temperature | -20 deg C to +75 deg C |
| Weight | 1.41 lbs |
| Compliance | UL, CSA, CE certified |
| Compatible Modules | Bulletin 1756 analogue I/O / RTD / thermocouple input modules |
Industrial Control Network Compatibility
The 1492-ACABLE025UB maintains proper backplane bus communication velocity compliance and is compatible with deterministic EtherNet/IP networks. Shielding mitigates cross-talk between channels and ensures that analogue signals from 1756 I/O modules remain within specified noise margins. Connector alignment is keyed to prevent miswiring during installation.
Frequently Asked Questions
Q: Can this cable be used with non-1756 analogue I/O modules?
A: It is designed specifically for Bulletin 1756 analogue I/O, RTD, and thermocouple input modules; electrical characteristics may not match other modules.
Q: Does the shielding provide full immunity to industrial electrical noise?
A: Shielding reduces EMI and cross-talk but proper grounding of the shield is required at the controller and panel side for optimal performance.
Q: Is hot-swapping supported with this cable?
A: No. The cable is intended for static module connections and should be disconnected only when the system is powered down.
Field Installation Guidelines
Route the 2.5-meter cable without sharp bends or mechanical strain. Connect D-sub interface to the controller first, ensuring keyed alignment. Connect the terminal block side to the corresponding I/O module input points. Ground the shield at one end to prevent ground loops. Maintain separation from high-voltage power cables to reduce interference. Avoid twisting or kinking the cable during installation, and verify secure termination at both ends before system energization.
