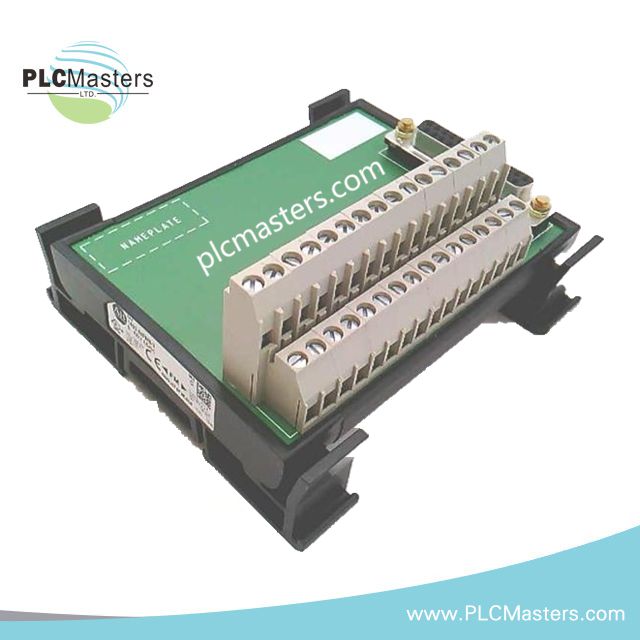

Allen-Bradley 1492-AIFM8-3 Digital/Analog Programmable Controller Wiring System

The Allen-Bradley 1492-AIFM8-3 serves as the primary 1492-AIFM8-3 Digital/Analog Programmable Controller Wiring System utilized to execute multi-channel analog and discrete signal feed-through termination across Allen-Bradley controller interface platforms.

Hardware Specifications

Firmware Flash Compatibility

The 1492-AIFM8-3 is structured for deterministic signal transition between field wiring and programmable controller I/O assemblies. The module supports I/O density scaling through grouped multi-channel termination architecture. Mechanical terminal organization permits structured channel separation during controller firmware migration or cabinet-level I/O replacement procedures.

Frequently Asked Questions (FAQ)

Q: Does the 1492-AIFM8-3 provide signal isolation between channels?
A: The supplied specifications do not identify channel-to-channel isolation or galvanic isolation characteristics.

Q: Can the module support both analog and discrete wiring termination?
A: Yes. The hardware is specified as a digital/analog programmable controller wiring system with multi-channel feed-through capability.

Q: What is the allowable current loading for the complete module?
A: The maximum total current capacity for the module is 12 A, with individual circuits limited to 2 A per channel.

Field Installation Guidelines

• Install the module inside grounded industrial control enclosures with sufficient spacing for cable routing.

• Separate low-level analog signal conductors from high-voltage AC wiring paths.

• Verify terminal tightening torque according to panel wiring standards before energization.

• Route shield drains to a single grounding reference point to minimize induced electrical noise.

• Confirm channel labeling prior to field termination to avoid cross-wiring between controller I/O points.

• Inspect feed-through terminal continuity during commissioning and maintenance intervals.
