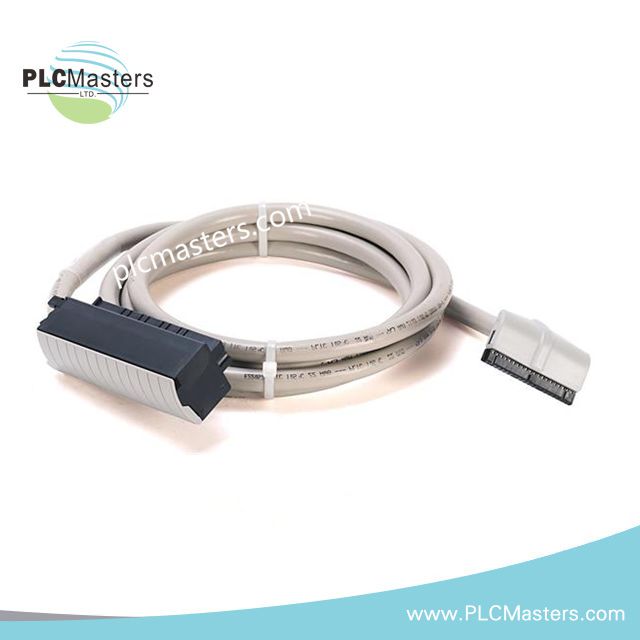

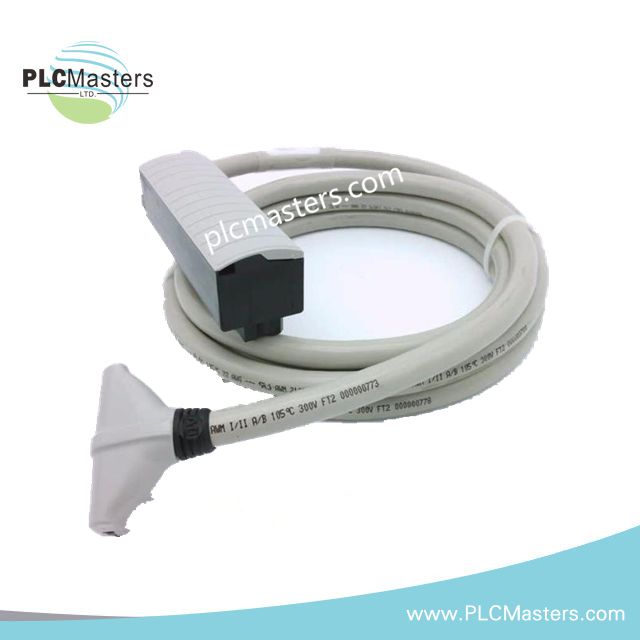

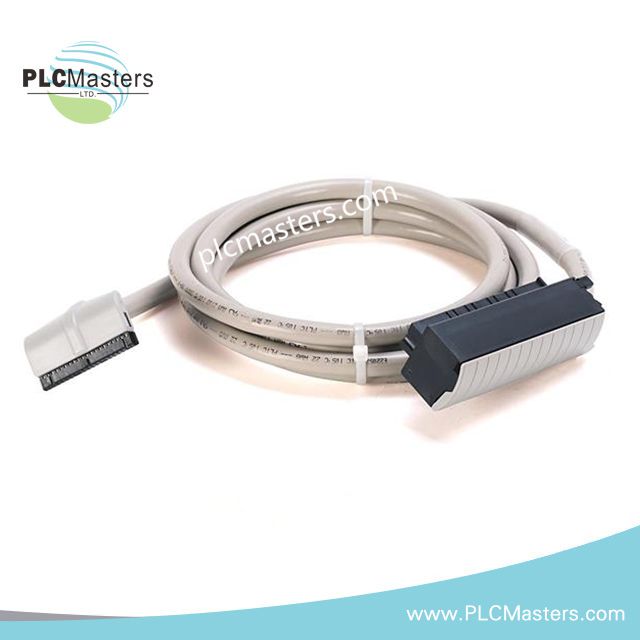

Allen-Bradley 1492-CABLE025Y Pre-Wired Digital Cable

Configured for digital I/O signal transmission in ControlLogix wiring systems, the Allen-Bradley 1492-CABLE025Y (1492-CABLE pre-wired digital cable) provides direct electrical execution between IFM termination assemblies and 1756 digital I/O modules.

Suffix Breakdown & Model Matrix

The supplied documentation identifies the model as a fixed-length pre-wired cable assembly within the Bulletin 1492 Wiring System product line. No alternate suffix matrix or configurable conductor variants are specified in the provided data.

Hardware Specifications

EtherNet/IP Deterministic Wiring Characteristics

The cable assembly uses fixed conductor mapping to maintain deterministic digital channel continuity between interface modules and ControlLogix I/O hardware. The 40-conductor structure supports grouped signal routing for isolated 16-point digital modules without manual point-to-point field termination.

Pre-wired construction reduces installation variability associated with individual conductor landing and minimizes channel assignment errors during hardware replacement. Connector geometry and conductor spacing are intended to preserve stable signal transmission across high-density control cabinet layouts.

Physical routing practices influence electrical noise exposure. Separation from VFD output conductors, relay switching bundles, and motor feeder cables reduces coupled transient interference on adjacent digital signal paths.

Frequently Asked Questions

Q: Is the 1492-CABLE025Y compatible with analog I/O modules?
A: The supplied documentation specifies compatibility with 1756 digital I/O modules and isolated 16-point I/O assemblies.

Q: Can the cable be extended beyond the factory length?
A: The unit is supplied as a fixed-length pre-wired cable assembly. Additional inline connections may alter conductor impedance and connector continuity characteristics.

Q: Does the cable require firmware matching before installation?
A: No. The cable functions as a passive interconnect device and does not contain programmable electronics or flash memory components.

Field Installation Guidelines

Route the cable through dedicated low-voltage control wiring paths and maintain physical separation from high-current AC power conductors. Avoid sharp bending near connector transitions to prevent mechanical stress on conductor termination points.

Verify full connector seating and retention engagement before energizing the I/O rack. Unsupported cable weight should not be transferred directly to module-side connectors in high-vibration enclosures.

Where multiple digital cable assemblies are installed in parallel, maintain organized cable segregation and identification labeling to simplify channel tracing during maintenance operations.
