Allen-Bradley 1492-CM1771-LD001 1492 I/O Wiring Conversion System Swing-Arm Conversion Module
$123.00
$320.00
Description

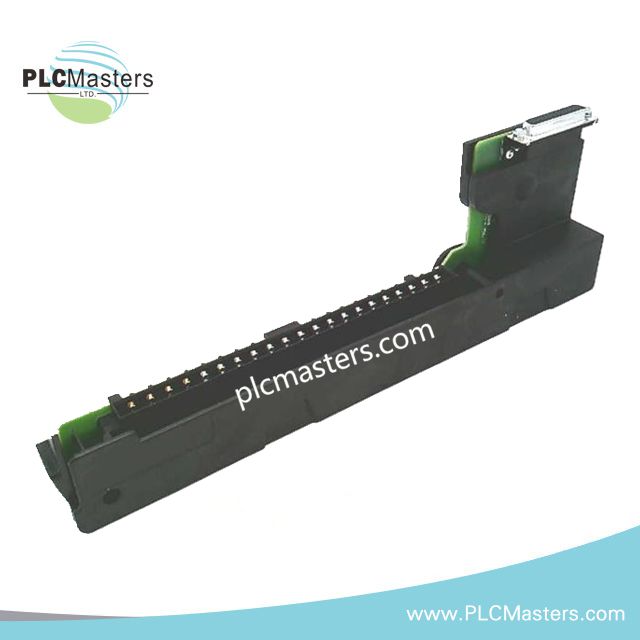

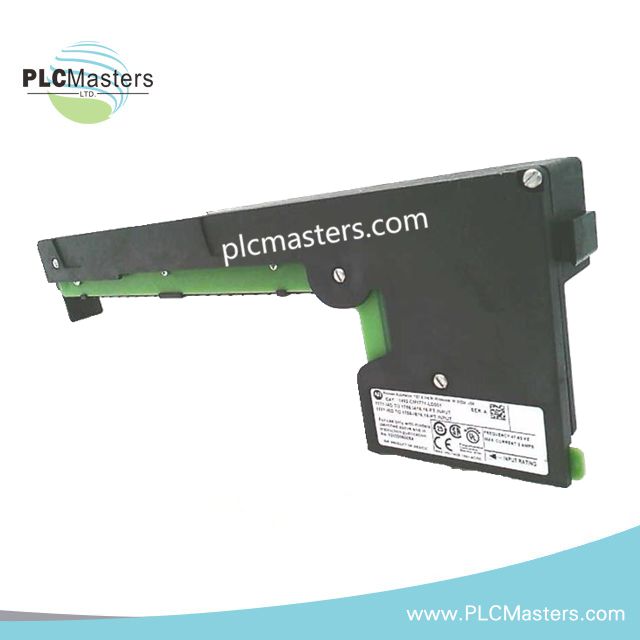

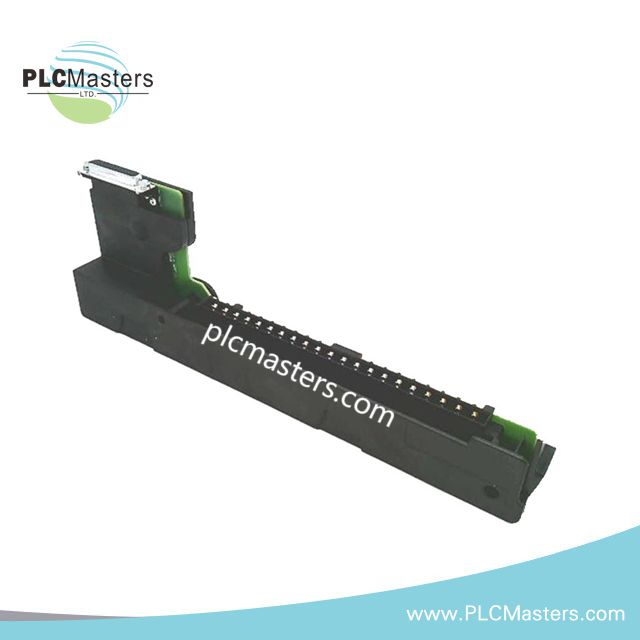

Allen-Bradley 1492-CM1771-LD001 1492 I/O Wiring Conversion System Swing-Arm Conversion Module
The Allen-Bradley 1492-CM1771-LD001, also cataloged as the 1492-CM1771-LD001 swing-arm conversion module, operates as a dedicated hardware component for PLC-5 to ControlLogix digital input migration within Allen-Bradley ControlLogix conversion systems. The module maintains existing 1771 swing-arm field terminations while redirecting signal paths toward 1756-series removable terminal block interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1492-CM1771-LD001 |
| Brand | Allen-Bradley |
| Origin | United States |
| Product Type | Swing-Arm Conversion Module |
| Series | 1492 I/O Wiring Conversion System |
| Compatible Legacy Modules | 1771-IAD, 1771-IBD |
| Compatible ControlLogix Modules | 1756-IA16, 1756-IB16 |
| Conversion Type | Swing-arm conversion using existing field wiring |
| Installation Method | Conversion mounting assembly |
| Wiring Method | Pre-wired 1492 conversion cables |
| Operating Temp | 0 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Pollution Degree | 2 |
| Certifications | CE, UL, C-UL-US, FM |
| Weight | Approx. 0.44 lbs |
| Dimensions | Not specified |
| Power Consumption | Passive conversion module; no internal power consumption |
| Lifecycle Status | Active |
EtherNet/IP Migration and I/O Density Scaling
The 1492-CM1771-LD001 supports staged PLC platform migration where legacy 1771 field wiring assemblies remain mechanically intact during transition to ControlLogix architectures. By preserving original swing-arm terminations, the module reduces cabinet rework activity and minimizes conductor identification errors during I/O replacement procedures.
The conversion assembly is designed for compatibility with high-density 1756 digital input modules while maintaining original field conductor allocation. Signal continuity depends on correct mating between the conversion module, pre-wired 1492 interface cable, and associated removable terminal block assembly. Installation sequencing should maintain channel mapping consistency between the legacy PLC-5 addressing structure and the target ControlLogix slot configuration.
Frequently Asked Questions
Q: Does the 1492-CM1771-LD001 require field rewiring during migration?
A: No. The module is designed to retain the existing 1771 swing-arm field terminations while redirecting the I/O connection through the conversion assembly and pre-wired interface cable.
Q: Can the conversion module be installed while the PLC chassis remains energized?
A: Standard industrial practice is to isolate rack and field power before removing or inserting swing-arm assemblies to prevent unintended input state transitions or connector arcing.
Q: Does the module perform signal conversion or electrical isolation?
A: No active signal conditioning or isolation circuitry is specified. The assembly functions as a passive physical conversion interface between compatible legacy and ControlLogix I/O hardware.
Field Installation Guidelines
-
Verify compatibility between the installed 1771 input module and the target 1756 module before mounting the conversion assembly.
-
Maintain original field wire identification labels during migration to preserve input channel traceability.
-
Route pre-wired 1492 interface cables separately from motor feeder and VFD output conductors to reduce induced electrical noise.
-
Inspect swing-arm contacts for oxidation, deformation, or looseness before reuse in the conversion assembly.
-
Confirm removable terminal block seating and connector latch engagement before energizing the ControlLogix rack.
-
Perform point-to-point input verification after commissioning to validate channel mapping integrity between legacy and converted hardware.
