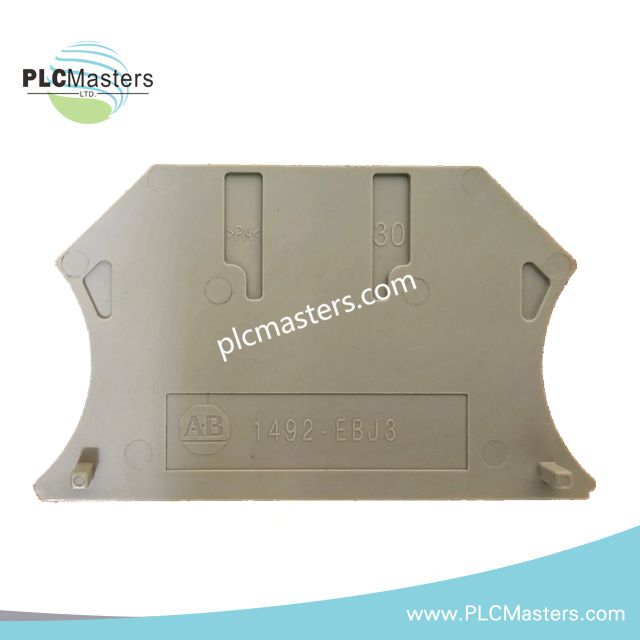

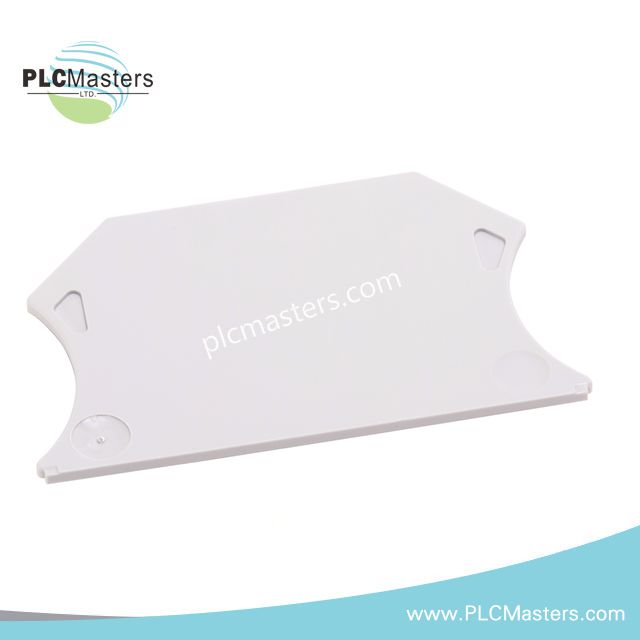

Allen-Bradley 1492-EBJ3 End Barrier

The Allen-Bradley 1492-EBJ3, also cataloged as the 1492-EBJ3 End Barrier, operates as a dedicated hardware component for electrical insulation and terminal group separation within 1492 terminal block assemblies. The component mounts at the end of compatible terminal block rows to establish physical isolation between conductive sections and adjacent panel components.

Suffix Breakdown & Model Matrix

The catalog number 1492-EBJ3 is specified as a fixed product designation. No manufacturer-defined suffix structure or configurable model matrix is provided in the supplied documentation.

Hardware Specifications

I/O Density Scaling and Panel Segmentation

In high-density terminal block installations, end barriers are used to define electrical boundaries between adjacent terminal groups. The 1492-EBJ3 provides a physical insulating partition that assists panel organization when multiple signal types, voltage classes, or control circuits are terminated within a common enclosure. The component performs a mechanical isolation function and contains no active electronics or communication circuitry.

Frequently Asked Questions

Q: Does the 1492-EBJ3 require electrical power or backplane connections?
A: No. The 1492-EBJ3 is a passive insulating barrier with no electrical connections or power requirements.

Q: Can the barrier be installed after terminal blocks have been mounted?
A: Installation depends on the terminal block assembly arrangement. Verify adequate access and mounting clearance before inserting the barrier into an existing terminal group.

Q: Does the 1492-EBJ3 affect signal transmission characteristics?
A: No. The component provides mechanical and electrical separation only. It does not process, filter, or modify electrical signals.

Field Installation Guidelines

• Confirm compatibility with the installed 1492 terminal block series before installation.

• Position the barrier at the end of the designated terminal block group to establish physical separation.

• Ensure the barrier is fully seated within the mounting profile of the terminal assembly.

• Maintain clear identification of terminal groups after barrier installation.

• Inspect the polyamide surface for cracks, deformation, or mechanical damage prior to use.

• Follow enclosure grounding and conductor routing practices appropriate for the installed terminal system.
