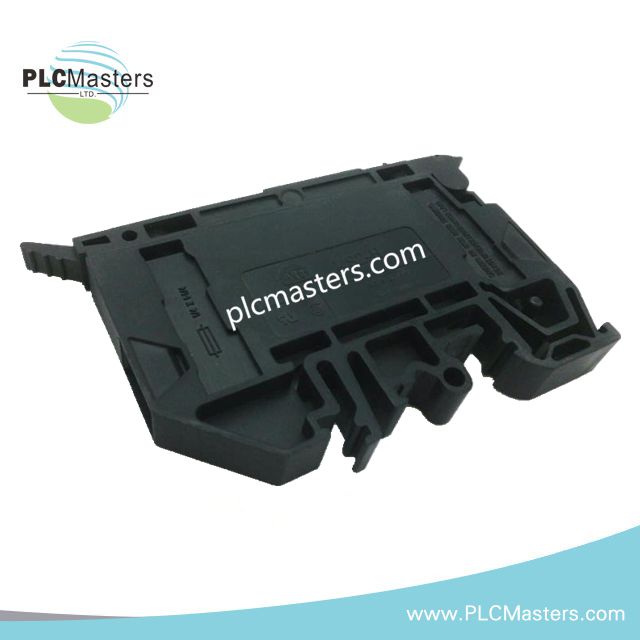

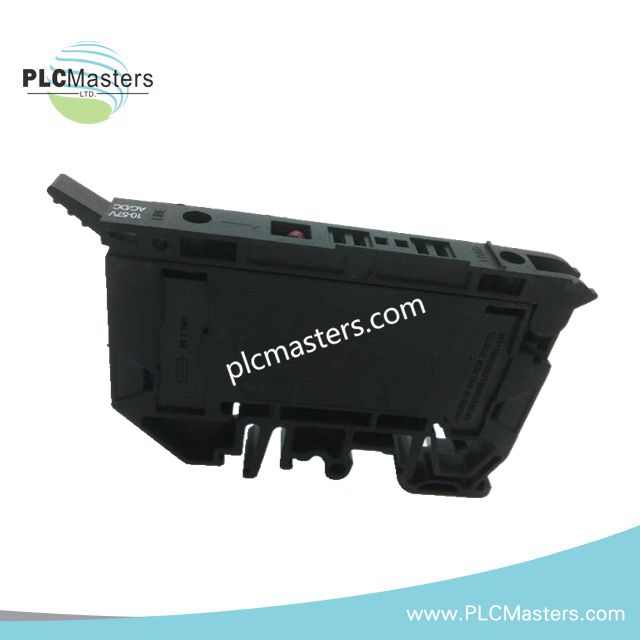

Allen-Bradley 1492-H5 Fuse Terminal Block

Configured for protected field wiring termination and fuse status indication in control panel assemblies, the Allen-Bradley 1492-H5 (1492-H5 Fuse Terminal Block) provides direct electrical execution. The unit is a single-circuit, screw-type terminal block with integrated LED fuse indication, supporting conductor termination, circuit protection, and visual diagnostic feedback within Allen-Bradley 1492 terminal block installations.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single catalog number, 1492-H5. No official suffix breakdown or ordering matrix information is provided in the source material.

Hardware Specifications

I/O Density and Panel Wiring Integration

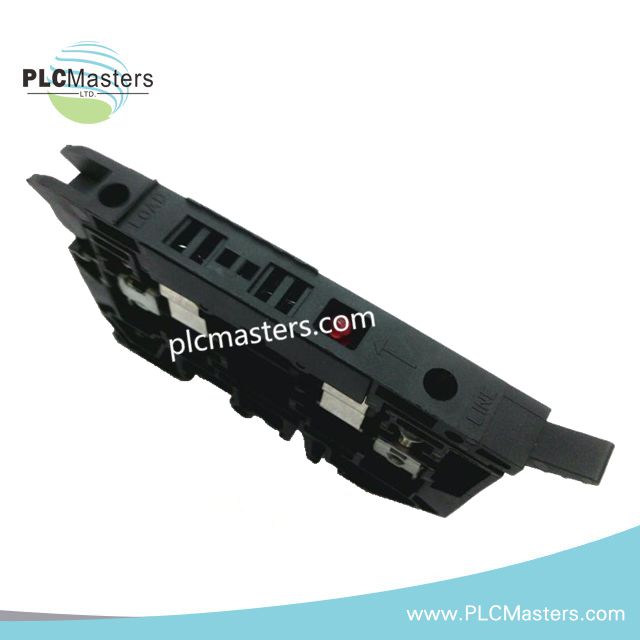

The 1492-H5 belongs to the Allen-Bradley 1492 terminal block family, which is designed for high-density control panel construction. The narrow housing width allows multiple termination points to be installed on standard DIN rails while maintaining conductor separation and fuse accessibility. Integrated LED indication enables visual identification of fuse status without removing wiring connections or terminal accessories.

Frequently Asked Questions

Q: Does the 1492-H5 support hot replacement of fuses?
A: Fuse replacement should be performed only after the associated circuit has been isolated and verified de-energized according to plant electrical safety procedures.

Q: What type of conductor termination is used on the 1492-H5?
A: The terminal block uses screw-clamp terminations and accepts conductors from #30 AWG through #12 AWG within the specified torque range.

Q: Can the 1492-H5 be installed alongside other 1492 series terminal blocks?
A: Yes. The unit is DIN rail mounted and is intended for integration with compatible Allen-Bradley 1492 series terminal block assemblies, end barriers, retainers, and marking accessories.

Field Installation Guidelines

• Mount the terminal block on a compatible DIN rail before conductor termination.

• Verify that the selected fuse size matches the terminal block specification and application requirements.

• Strip conductors to the specified length and tighten terminal screws within the documented torque range.

• Route control wiring separately from high-energy power conductors where practical.

• Install end anchors and end barriers where required to maintain terminal group stability and insulation separation.

• Confirm LED indication operation after circuit energization and fuse installation.

• Follow applicable grounding and enclosure wiring practices defined by site electrical standards.
