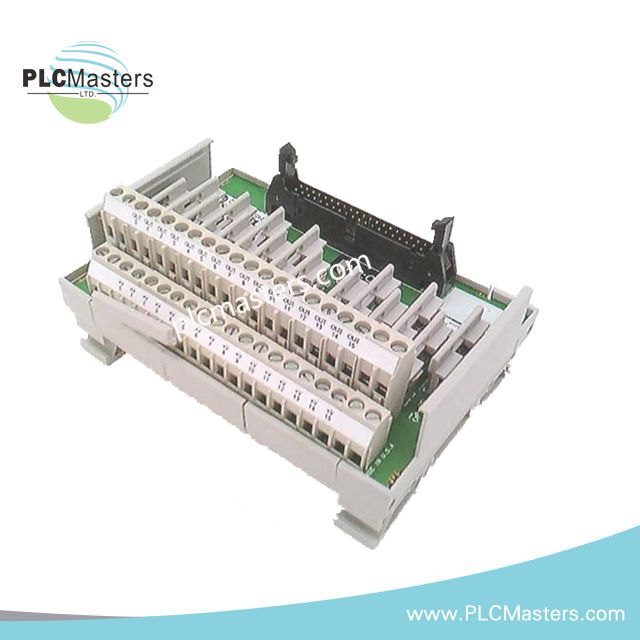

Allen-Bradley 1492-IFM20F-F24A-2 Fusible Digital Interface Module
$123.00
$320.00
Description
Allen-Bradley 1492-IFM20F-F24A-2 Fusible Digital Interface Module
The Allen-Bradley 1492-IFM20F-F24A-2, also cataloged as the 1492-IFM20F Fusible Digital Interface Module, operates as a dedicated hardware component for managing 20-point field I/O circuits with blown fuse indication within ControlLogix and compatible PLC networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1492-IFM20F-F24A-2 |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.40 lbs |
| Dimensions | Height: 83.06 mm, Width: 109.98 mm, Depth: 70.61 mm |
| Operating Temp | 0…60 deg C |
| Power Consumption | 24 V AC/DC, 2 A max per circuit, 12 A max per module |
| Number of Circuits | 20-point fusible interface |
| Fuse Type | 5 × 20 mm fuse clips (fuses not supplied) |
| Indicator | Blown fuse LED indicators |
| Connector Type | 20-contact female cable connector |
| Wire Size | 12–22 AWG (0.2–4 mm²) |
| Mounting | DIN rail |
| Certifications | CE, UL, C-UL-US, FM, IECEx compliant |
Profinet / EtherNet/IP Deterministic Networks
The module interfaces with PLC backplanes and deterministic Profinet/EtherNet/IP networks, ensuring minimal propagation delay for digital I/O signals. Signal integrity is maintained via channel-to-channel isolation, reducing cross-talk in dense panel installations. Firmware flash compatibility allows replacement without disrupting existing network configurations.
Frequently Asked Questions (FAQ)
Q: Can fuses be replaced while the module remains powered?
A: No, the module does not support hot-swap fuse replacement. Power must be removed before servicing fuses.
Q: What is the maximum load per circuit?
A: Each circuit supports up to 2 A, with a maximum of 12 A per module.
Q: How does the blown fuse indication work?
A: Individual LED indicators illuminate corresponding to blown fuses, providing immediate diagnostic visibility.
Field Installation Guidelines
-
Mount on a standard DIN rail, ensuring proper orientation and spacing for ventilation.
-
Route signal and power wiring separately to minimize EMI interference.
-
Ground shielding at a single point per IEC 61131 standards.
-
Ensure wire sizes match 12–22 AWG specifications to maintain proper clamp and electrical contact.
-
Confirm 24 V AC/DC supply is within 10–30 V operational range before energizing module.
