Allen-Bradley 1492-IFM40F-F24D-2 Fusible Digital Interface Module
$123.00
$320.00
Description

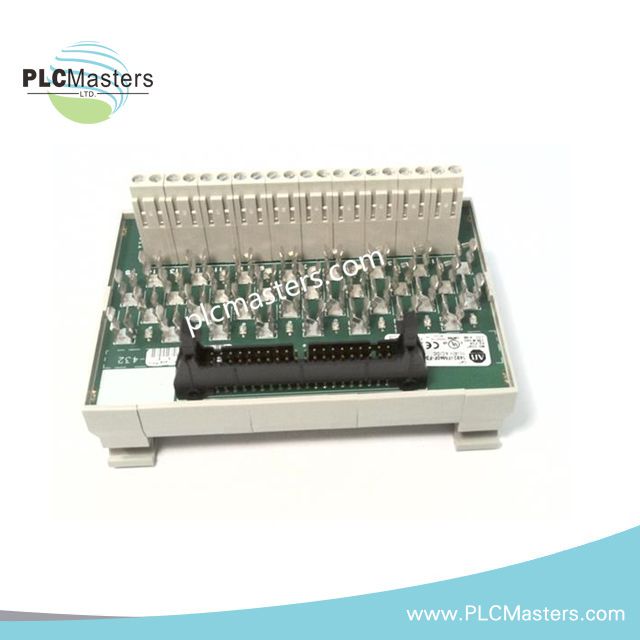

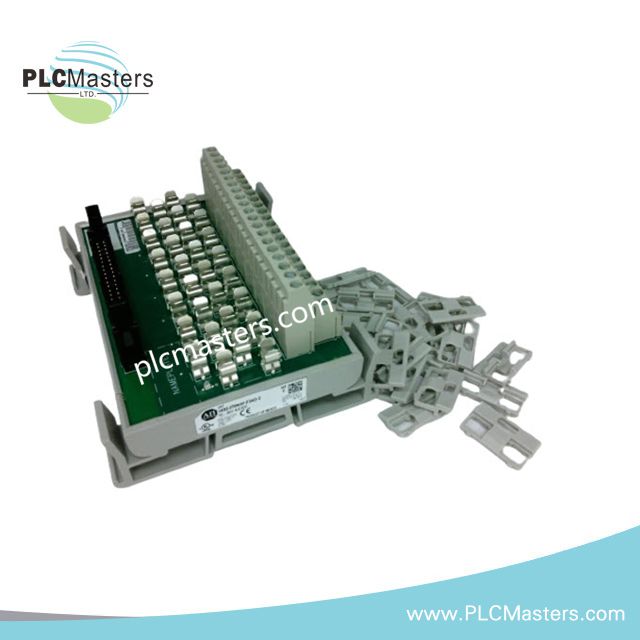

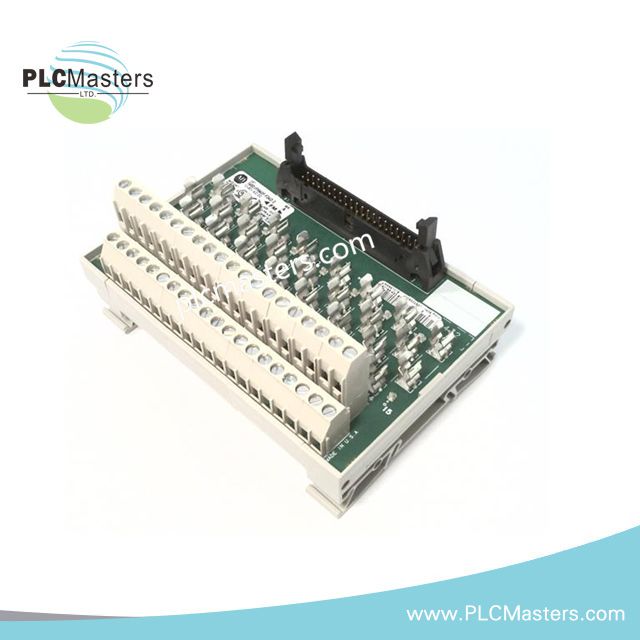

Allen-Bradley 1492-IFM40F-F24D-2 Fusible Digital Interface Module
Configured for fused digital signal distribution in ControlLogix wiring systems, the Allen-Bradley 1492-IFM40F-F24D-2 (1492-IFM40F Fusible Digital Interface Module) provides direct electrical execution between PLC I/O channels and field terminations. The module incorporates 40 interface points, 24 V AC/DC blown fuse indication, and additional output terminals for field wiring management.
Suffix Breakdown & Model Matrix
The available documentation identifies 1492-IFM40F-F24D-2 as a fixed catalog configuration with the following documented characteristics:
-
40-point isolated fusible digital IFM
-
5 x 20 mm fuse clips
-
24 V AC/DC blown fuse indicators
-
Extra terminals for outputs
-
40-contact interface connection
No official manufacturer suffix decoding is provided in the supplied data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1492-IFM40F-F24D-2 |
| Brand | Allen-Bradley |
| Weight | 0.85 lbs |
| Dimensions | Approx. Height: 83 mm, Width: 180 mm, Depth: 70 mm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Not specified |
| Number of Circuits | 40-point fusible interface |
| Voltage Rating | 24 V AC/DC (10-30 V operating range) |
| Current Rating | 2 A max per circuit, 12 A max per module |
| Fuse Type | 5 x 20 mm fuse clips |
| Indicator Type | Blown fuse LED indicators |
| Connector Type | 40-contact female cable connector |
| Wire Size | 12-22 AWG (0.2-4 mm2) |
| Mounting | DIN rail |
| Relative Humidity | 5-95 % RH |
| Pollution Degree | 2 |
| Storage Temperature | -40 to 85 deg C |
| Certifications | CE, UL, C-UL-US, FM, IECEx |
Firmware Flash Compatibility
Within ControlLogix migration projects, the 1492-IFM40F-F24D-2 functions as a physical wiring interface independent of controller firmware revisions. The module maintains fixed terminal assignments and cable-based I/O routing, allowing firmware updates within the PLC platform without requiring modification of the IFM hardware. Compatibility is determined by the associated prewired connection system and target I/O module configuration.
Frequently Asked Questions
Q: Does the module include fuse elements from the factory?
A: No. The module is equipped with 5 x 20 mm fuse clips. Fuse elements must be installed separately.
Q: What is the maximum current loading allowed?
A: The module is rated for up to 2 A per circuit with a total module limit of 12 A.
Q: Can field wiring remain connected during fuse replacement?
A: The documentation does not define live-maintenance operation. Standard industrial practice is to isolate power before replacing fuse elements or servicing field wiring.
Field Installation Guidelines
-
Secure the module on a correctly grounded DIN rail assembly.
-
Verify that conductor sizes remain within the specified 12-22 AWG range.
-
Maintain separation between low-level control wiring and higher-energy power conductors.
-
Confirm correct fuse ratings before energizing protected circuits.
-
Tighten all terminal connections according to applicable panel assembly procedures.
-
Route prewired interface cables to prevent excessive mechanical stress on the 40-contact connector.
-
Label field terminations and output circuits before commissioning to simplify maintenance activities.
