Allen-Bradley 1492-XIM2024-16RF Relay Interface Module
$123.00
$320.00
Description

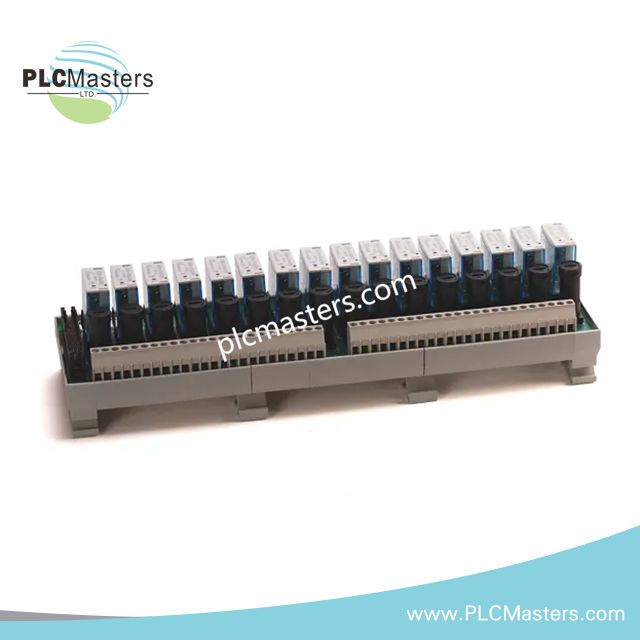

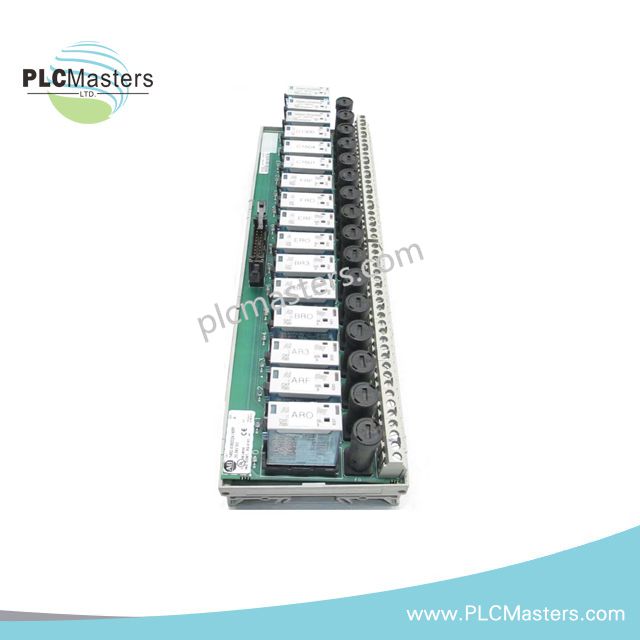

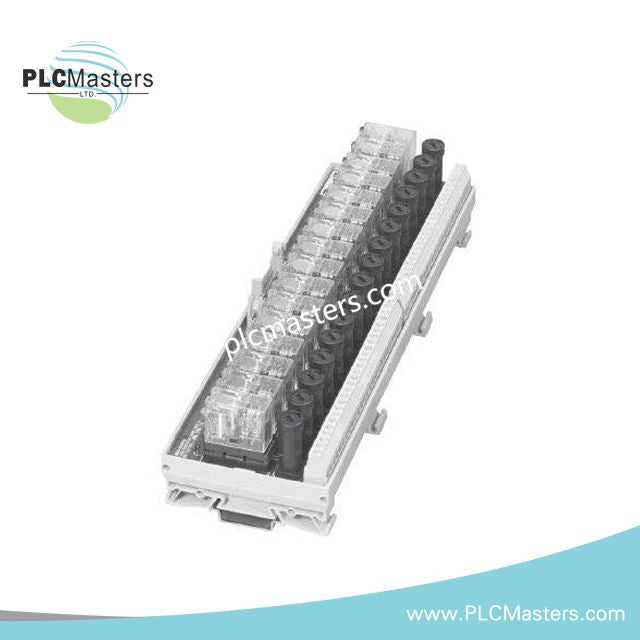

Allen-Bradley 1492-XIM2024-16RF Relay Interface Module
The Allen-Bradley 1492-XIM2024-16RF, also cataloged as the 1492-XIM2024-16RF Relay Interface Module, operates as a dedicated hardware component for isolated 24 VDC input signal interfacing and wiring conversion within ControlLogix migration and digital I/O distribution systems. The module incorporates 16 relays with fused protection and provides a 20-pin master interface for field signal termination and relay isolation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1492-XIM2024-16RF |
| Brand | Allen-Bradley |
| Product Type | Relay Interface Module |
| Series | 1492-XIM |
| Interface Type | 20-pin Relay Master Digital IFM |
| Input Channels | 16 isolated inputs |
| Relay Quantity | 16 relays |
| Voltage Rating | 24 VDC |
| Fuse Type | Resistive fuse per channel |
| Current Rating per Circuit | Typically 2 A |
| Module Current Capacity | Approximately 12 A max |
| Indicators | LED status and fuse condition indicators |
| Mounting | DIN-rail mountable |
| Operating Temp | 0 deg C to 60 deg C |
| Storage Temp | Up to 85 deg C |
| Certifications | CE, UL, C-UL-US, FM |
| Compatibility | PLC-5 to ControlLogix migration applications |
| Weight | 1.55 lb |
I/O Density Scaling and Wiring Conversion Architecture
The 1492-XIM2024-16RF supports I/O migration projects by consolidating 16 isolated input circuits into a structured relay interface assembly. The 20-pin master interface reduces field rewiring requirements when replacing legacy PLC hardware. Individual relay channels and fused protection permit separation of field circuits while maintaining organized signal routing between existing plant wiring and modern ControlLogix I/O platforms.
The module functions as an interface layer and does not modify PLC scan execution, controller communications, or network determinism. System performance remains dependent on the connected ControlLogix controller and associated I/O modules.
Frequently Asked Questions
Q: Does the 1492-XIM2024-16RF provide channel-to-channel isolation?
A: The module is specified with 16 isolated input channels utilizing relay interface circuitry and individual fused protection.
Q: Can blown fuse conditions be identified without disconnecting field wiring?
A: Yes. LED indicators are provided to assist maintenance personnel in identifying input activity and fuse status during inspection.
Q: Does the module require firmware updates?
A: No. The 1492-XIM2024-16RF is an interface module and no firmware upgrade requirements are specified in the available documentation.
Field Installation Guidelines
-
De-energize all connected field circuits before installation or maintenance activities.
-
Mount the unit on a properly grounded DIN rail according to panel layout requirements.
-
Separate low-voltage signal wiring from higher-energy conductors to minimize electrical interference.
-
Verify polarity of all 24 VDC input connections before energization.
-
Confirm that replacement fuses match the original electrical characteristics specified for the application.
-
Maintain access to LED indicators to simplify diagnostic and maintenance procedures.
-
Route relay interface wiring to avoid excessive mechanical stress on terminal connections and cable assemblies.
-
Follow grounding and shielding practices specified for the associated ControlLogix and field I/O equipment.
