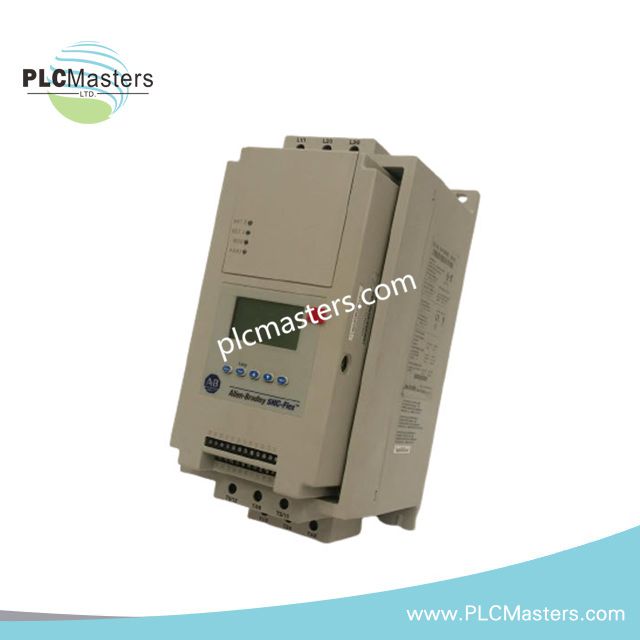

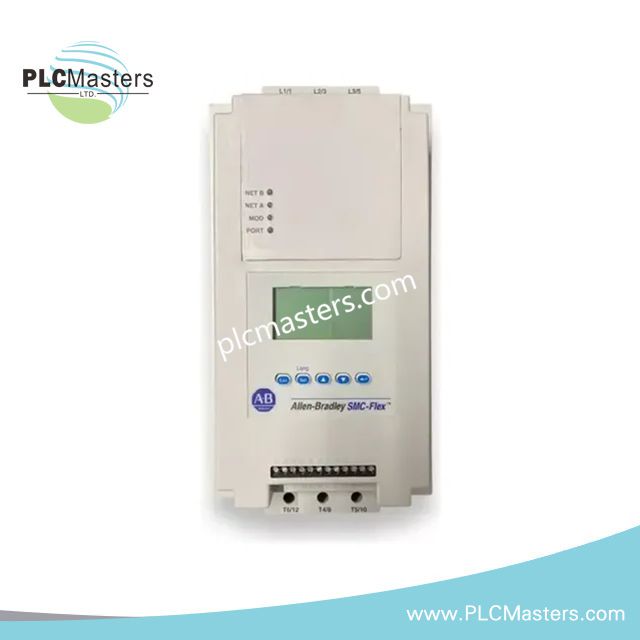

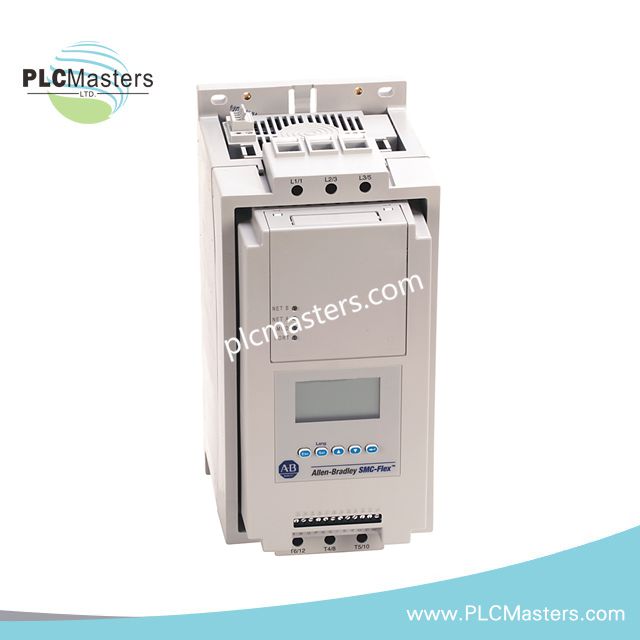

Allen-Bradley 150-F25NBD Smart Motor Controller

The Allen-Bradley 150-F25NBD serves as the primary 150-F25NBD Smart Motor Controller utilized to execute controlled motor acceleration, deceleration, and protection functions across SMC-Flex motor control platforms. The unit manages soft starting and stopping of three-phase motors while providing overload protection, phase monitoring, and optional communication interfaces for supervisory control systems.

Suffix Breakdown & Model Matrix

The manufacturer documentation provided identifies a fixed catalog number, 150-F25NBD. No official suffix decomposition or ordering matrix is specified in the supplied data; therefore, no further breakdown is provided.

Hardware Specifications

Firmware Flash Compatibility and Industrial Network Integration

The 150-F25NBD is designed for integration into deterministic industrial control architectures. Optional communication modules allow connectivity with EtherNet/IP and other Rockwell Automation network infrastructures. Firmware-based parameter storage supports configuration retention for motor protection, current limit, acceleration, and deceleration profiles. During maintenance activities, compatibility between controller firmware revisions and installed communication modules should be verified to maintain consistent operational behavior.

Frequently Asked Questions

Q: Does the 150-F25NBD provide motor overload protection without external devices?
A: Yes. The controller includes integrated overload protection along with phase loss, phase imbalance, and under/overvoltage monitoring functions.

Q: Is hot-swapping supported for communication modules or controller wiring?
A: The supplied documentation does not specify hot-swap capability. Power isolation and lockout procedures should be followed before installing or removing field wiring or communication accessories.

Q: Can acceleration and deceleration characteristics be adjusted?
A: Yes. The SMC-Flex platform supports configurable acceleration, deceleration, and current limit parameters for motor starting and stopping control.

Field Installation Guidelines

• Mount the controller inside a protected control enclosure suitable for the specified IP20 rating.

• Verify incoming line voltage and control voltage before energizing the unit.

• Separate motor power conductors from low-voltage control and communication wiring to reduce electrical interference.

• Use properly sized conductors and terminal torque values according to the manufacturer installation manual.

• Ensure enclosure grounding is completed before commissioning.

• Confirm motor full-load current settings match the connected motor nameplate data.

• Perform functional testing of soft-start, soft-stop, and protection functions prior to placing equipment into continuous operation.

• Maintain ambient temperature within the specified operating range and prevent condensation within the enclosure.
