Allen-Bradley 1585JM4TBJM2 Industrial Ethernet Cable
$123.00
$320.00
Description

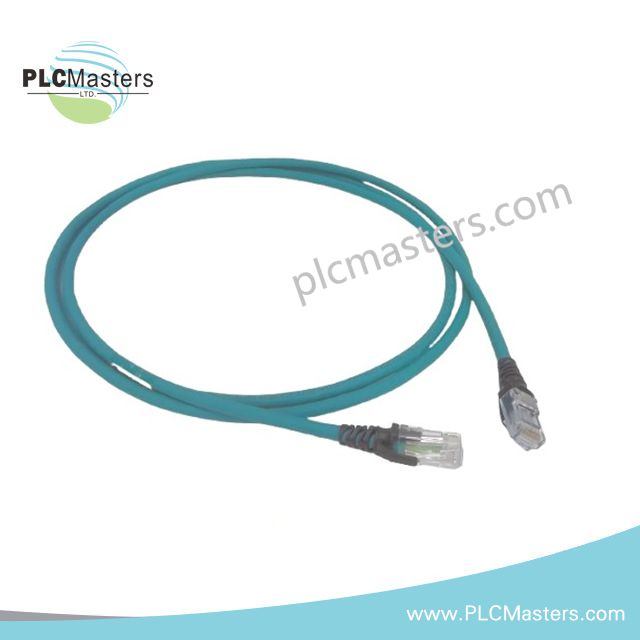

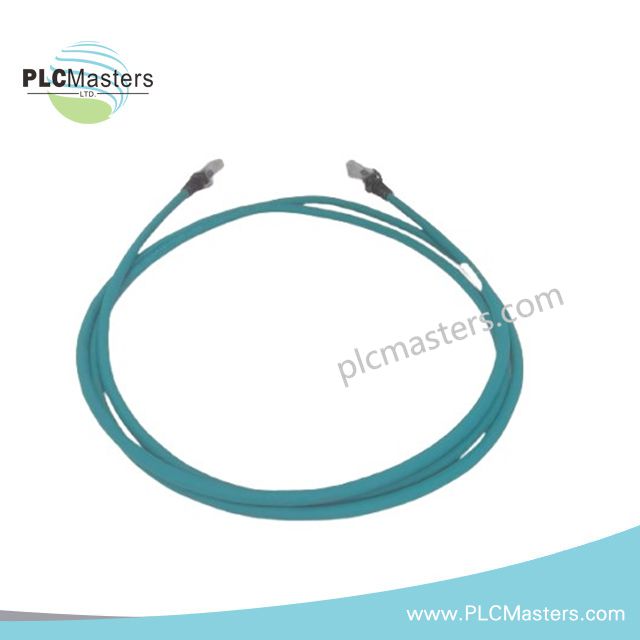

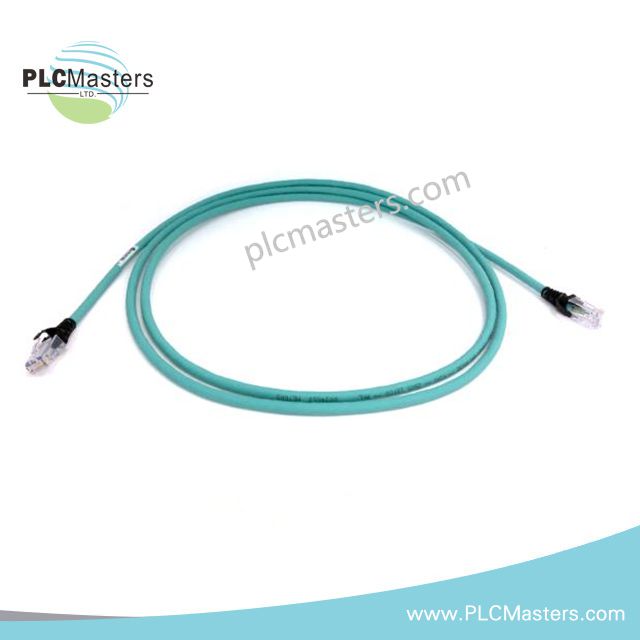

Allen-Bradley 1585JM4TBJM2 Industrial Ethernet Cable
The Allen-Bradley 1585JM4TBJM2, also cataloged as the 1585JM4 Double-Ended Industrial Ethernet Cable, operates as a dedicated hardware component for robust Ethernet/IP signal transmission within factory automation networks. It provides direct electrical connectivity between devices in harsh industrial conditions using M12 D-coded interfaces.
Suffix Breakdown & Model Matrix
The suffix JM2 denotes a standard 2-meter cable length. No further official decomposition of the 1585JM4TBJM2 model is documented; the base designation 1585JM4 identifies the Bulletin 1585 series of industrial hardened Ethernet cables.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1585JM4TBJM2 |
| Brand | Allen-Bradley |
| Origin | Rockwell Automation |
| Product Type | Double-Ended Industrial Ethernet Cables |
| Series | Bulletin 1585 |
| Connector Type | M12 D-coded, 4-pin, male-to-male |
| Cable Type | Twisted pair, shielded |
| Length | 2 meters |
| Data Rate | 10/100 Mbps Ethernet |
| Protocol Support | Ethernet/IP |
| Environmental Rating | IP67 |
| Operating Temperature | -40 to +75 deg C |
| Material | Industrial-grade thermoplastic jacket |
| Weight | 0.20 lbs |
| Compliance | CE, UL, CSA, RoHS |
Profinet / EtherNet/IP Deterministic Networks
The 1585JM4TBJM2 is engineered for deployment in deterministic industrial networks. Shielded twisted pair conductors, combined with M12 D-coded connectors, reduce signal degradation under vibration and electromagnetic interference. The cable maintains consistent 10/100 Mbps Ethernet performance across Ethernet/IP topologies, supporting device-to-device communication and control traffic without packet loss in industrial environments.
Frequently Asked Questions
Q: Can the 1585JM4TBJM2 operate in extreme cold conditions?
A: Yes. The cable is rated for continuous operation from -40 to +75 deg C, with the thermoplastic jacket maintaining flexibility and mechanical integrity.
Q: Is this cable suitable for outdoor or washdown environments?
A: The cable meets IP67 standards, providing dust-tight protection and resistance to water ingress, suitable for harsh industrial and occasional wet conditions.
Q: Are M12 connectors compatible with standard Ethernet ports?
A: The M12 D-coded 4-pin connectors are specifically designed for industrial Ethernet and Ethernet/IP devices; adapters may be required to connect to RJ45 interfaces.
Field Installation Guidelines
-
Verify M12 connector alignment to prevent pin damage during mating.
-
Maintain cable bend radius in accordance with industrial-grade twisted pair specifications to prevent internal conductor stress.
-
Route cables separately from high-voltage lines to minimize electromagnetic interference.
-
Ensure proper grounding and shield termination at both ends to optimize signal integrity.
-
Inspect jackets and connectors for cuts or abrasions prior to installation.
-
Secure cables using industrial-rated clamps or cable ties, avoiding over-tightening that may deform the cable jacket.
