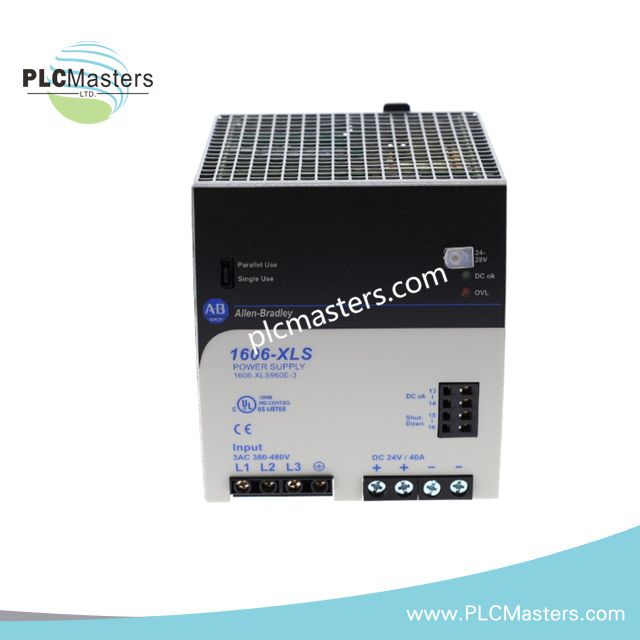

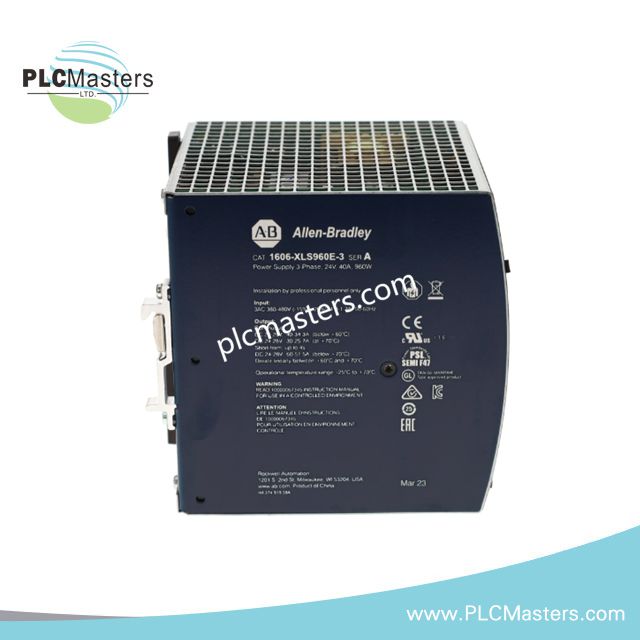

Allen-Bradley 1606-XLS960E-3 Performance Power Supply
$123.00
$320.00
Description
Allen-Bradley 1606-XLS960E-3 Performance Power Supply
The Allen-Bradley 1606-XLS960E-3 serves as the primary 1606-XLS960E-3 Power Supply utilized to execute regulated 24-28 VDC power conversion across industrial control system platforms. The unit converts three-phase 380-480 VAC input power into a stabilized DC output with up to 960 W capacity and supports DIN-rail installation within control enclosures.
Suffix Breakdown & Model Matrix
The supplied documentation identifies 1606-XLS960E-3 as a fixed catalog number within the 1606-XLS Performance Power product family. No official suffix decomposition is specified in the provided data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1606-XLS960E-3 |
| Brand | Allen-Bradley |
| Series | 1606-XLS |
| Product Type | Switched Mode Power Supply |
| Rated Output Power | 960 W |
| Input Voltage | 380-480 VAC, 3-phase, 50/60 Hz |
| DC Input Option | 600 VDC |
| Nominal Input Current | 1.65 A |
| Inrush Current | 4.5 A maximum |
| Output Voltage | Adjustable 24-28 VDC |
| Output Current | 40 A at 24 VDC; 34.3 A at 28 VDC |
| Efficiency | >= 95.2 % |
| Ripple Voltage | <= 100 mVpp |
| Hold-Up Time | >= 20 ms |
| Mounting | DIN-35 Rail |
| Protection Features | Overload, Short-Circuit, Overvoltage |
| IP Rating | IP20 |
| Certifications | UL 508, IEC/EN 60950, EN 50178, CE |
| Dimensions | 124 x 110 x 127 mm |
| Weight | 1.5 kg |
| Operating Temp | Not specified in supplied data |
| Origin | Not specified in supplied data |
| Power Consumption | Input dependent, rated output 960 W |
Firmware Flash Compatibility and Power System Integration
Within distributed PLC and automation architectures, the 1606-XLS960E-3 functions as a DC power source for controllers, communication modules, and field I/O assemblies. The regulated 24-28 VDC output supports stable backplane and peripheral power distribution. When deployed with approved redundancy accessories, the unit can participate in redundant DC supply architectures while maintaining output isolation between parallel power sources.
Frequently Asked Questions
Q: Does the 1606-XLS960E-3 support hot replacement during operation?
A: The supplied documentation does not specify hot-swap capability. Power isolation and de-energization procedures should follow the equipment manufacturer's maintenance requirements before replacement.
Q: What output current is available at different output voltage settings?
A: The power supply delivers up to 40 A at 24 VDC and up to 34.3 A at 28 VDC while remaining within its 960 W power rating.
Q: What protection mechanisms are integrated into the unit?
A: The power supply includes overload protection, short-circuit protection, and overvoltage protection functions as specified by the manufacturer.
Field Installation Guidelines
-
Mount the unit on a DIN-35 rail with adequate mechanical support.
-
Maintain enclosure ventilation to allow heat dissipation around the power supply housing.
-
Verify phase connections and input voltage before energizing the device.
-
Route DC output conductors separately from high-noise switching or motor power cables where practical.
-
Tighten field wiring terminals according to the manufacturer's installation instructions.
-
Confirm grounding continuity between the power supply, panel ground, and enclosure grounding system.
-
Allow sufficient clearance around ventilation openings and avoid obstructing airflow paths.
