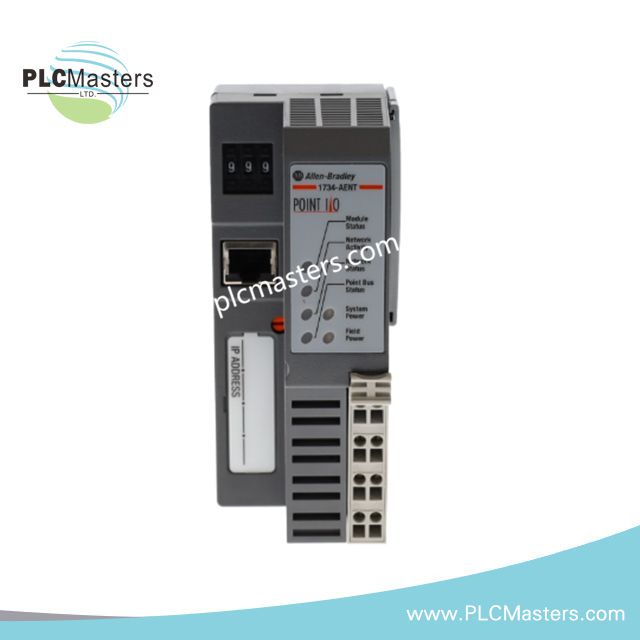

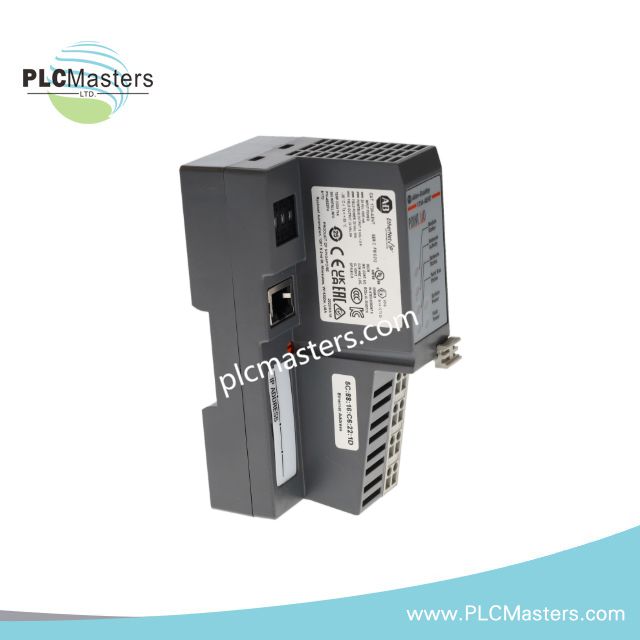

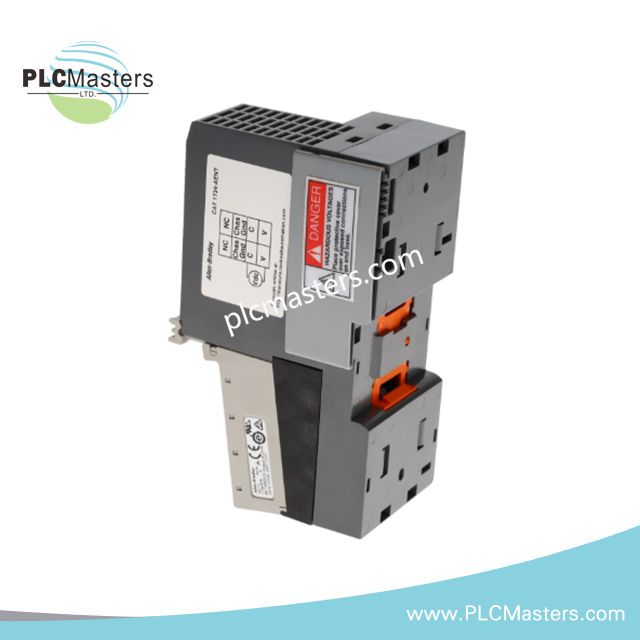

Allen-Bradley 1734-AENT EtherNet/IP Adapter Module
$123.00
$320.00
Description
Product Description
The 1734-AENT EtherNet/IP adapter is part of the Allen-Bradley POINT I/O distributed I/O platform, developed for high-speed industrial Ethernet communication between field I/O devices and Logix-based control systems. This compact adapter module enables POINT I/O assemblies to interface with EtherNet/IP networks using standard twisted-pair Ethernet media.
Designed for DIN rail installation, the 1734-AENT supports both 10 Mbps and 100 Mbps Ethernet transmission speeds with automatic half-duplex and full-duplex operation. The module delivers reliable communication performance for decentralized automation architectures while minimizing panel space requirements.
The adapter provides integrated field power bus distribution and supports up to 10 A field-side current capacity, making it suitable for a wide range of industrial I/O expansion applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | POINT I/O 1734 |
| Model Number | 1734-AENT |
| Product Type | EtherNet/IP Adapter Module |
| Communication Protocol | EtherNet/IP |
| Ethernet Speed | 10/100 Mbps |
| Duplex Modes | Half-Duplex / Full-Duplex |
| Network Media | Twisted Pair Ethernet |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 10 to 28.8 VDC |
| Maximum Inrush Current | 6 A for 10 ms |
| Maximum Power Consumption | 4.5 W at 28.8 VDC |
| Maximum Power Dissipation | 15.5 W |
| Thermal Dissipation | 9.5 BTU/hr |
| Isolation Voltage | 1800 VDC for 60 Seconds |
| Field Power Bus Voltage | 24 VDC Nominal |
| Field Power Bus Voltage Range | 10 to 28.8 VDC |
| Maximum Field Bus Current | 10 A |
| Mounting Type | DIN Rail |
| Enclosure Style | Open-Type |
| Terminal Type | Screw Clamp |
| Housing Color | Grey |
| Weight | 0.23 kg |
Functional Features
-
Supports distributed POINT I/O architectures
-
Compatible with EtherNet/IP industrial networks
-
Automatic 10/100 Mbps communication detection
-
Supports half- and full-duplex Ethernet operation
-
Compact housing for space-constrained panels
-
DIN rail mounting for simplified installation
-
Integrated field power bus capability
-
Industrial isolation protection for stable operation
-
Designed for Logix-based PLC systems and remote I/O networks
Typical Applications
The 1734-AENT module is commonly installed in:
-
Distributed control systems
-
Factory automation panels
-
Remote I/O stations
-
Packaging equipment
-
Conveyor systems
-
Material handling systems
-
Machine automation networks
-
Process control installations
FAQ
What is the purpose of the 1734-AENT module?
The module functions as an EtherNet/IP communication adapter for Allen-Bradley POINT I/O systems, connecting remote I/O assemblies to industrial Ethernet networks.
Does the module support both 10 Mbps and 100 Mbps Ethernet?
Yes. The adapter automatically supports both 10 Mbps and 100 Mbps communication rates.
What mounting method is used?
The module is designed for standard DIN rail installation.
Can the 1734-AENT be used with CompactLogix controllers?
Yes. The adapter is compatible with CompactLogix and ControlLogix systems using EtherNet/IP communication.
What type of network media is required?
Standard twisted-pair Ethernet cabling is supported.
