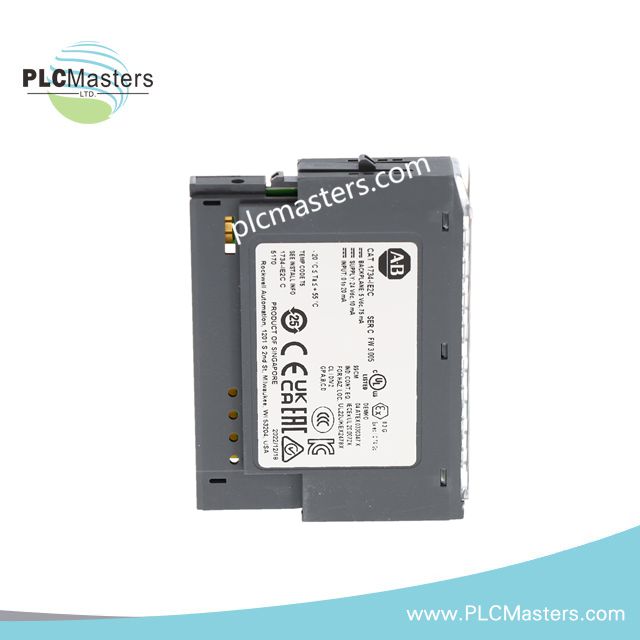

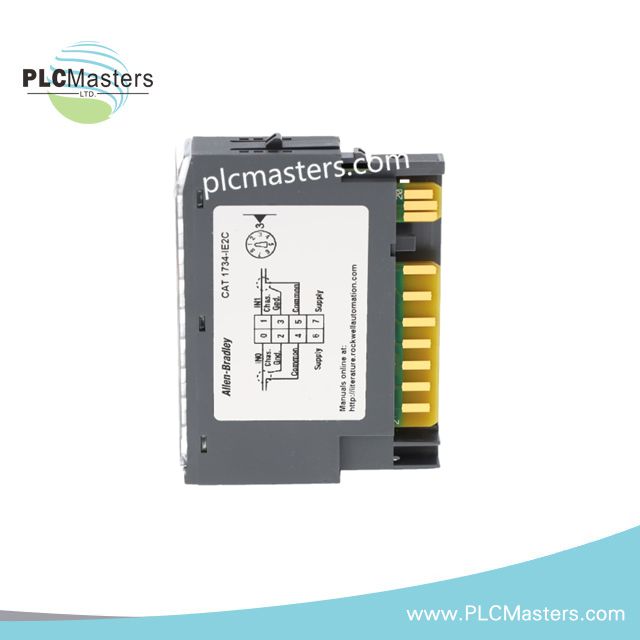

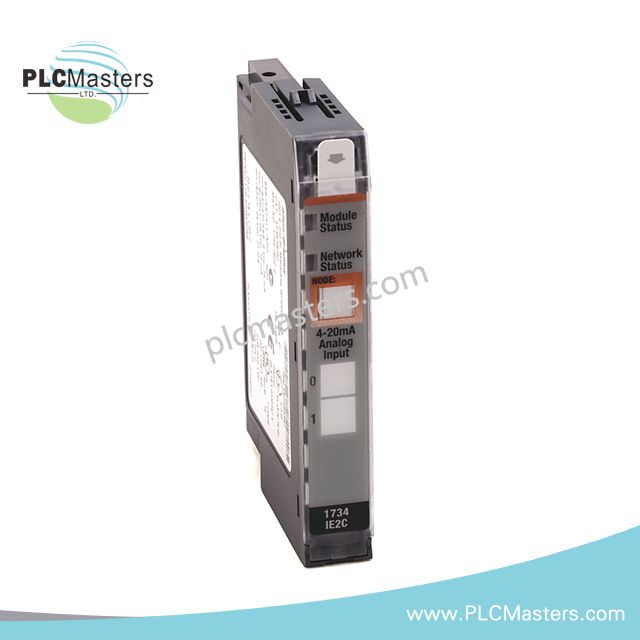

Allen-Bradley 1734-IE2C/C POINT I/O Analog Current Input Module
$123.00
$320.00
Description
Allen-Bradley 1734-IE2C/C POINT I/O Analog Current Input Module
The Allen-Bradley 1734-IE2C/C, also cataloged as the 1734-IE2C Analog Current Input Module, operates as a dedicated hardware component for analog current signal acquisition within POINT I/O networks. The module accepts two single-ended current input channels, supports 0-20 mA and 4-20 mA measurement ranges, and converts field signals into digital process data through the POINT I/O backplane.
Suffix Breakdown & Model Matrix
| Model | Description |
|---|---|
| 1734-IE2C/C | POINT I/O Analog Current Input Module |
No additional suffix decoding information is provided in the supplied documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1734-IE2C/C |
| Brand | Allen-Bradley |
| Product Type | Analog Current Input Module |
| Product Series | POINT I/O Bulletin 1734 |
| Input Channels | 2 Single-Ended Current Inputs |
| Input Range | 0-20 mA, 4-20 mA |
| Resolution | 16-Bit Signed |
| Power Supply | 24 VDC |
| Diagnostics | Over-Range and Under-Range Detection |
| Input Filters | Selectable |
| Mounting Method | DIN Rail |
| Protection Rating | IP20 |
| Operating Temp | -20 deg C to +55 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | Up to 95% Non-Condensing |
| Certifications | IECEx, Supplier Declaration of Conformity |
Backplane Bus Data Exchange
The 1734-IE2C/C transfers digitized analog input values through the POINT I/O backplane for processing by the associated network adapter and controller. The module supports distributed analog acquisition while maintaining compact I/O density within the POINT I/O platform. Input filtering functions can be configured to reduce the influence of transient electrical noise before data transmission to the control system.
Frequently Asked Questions
Q: Which analog signal ranges are supported by the module?
A: The module supports 0-20 mA and 4-20 mA current input ranges on two independent single-ended channels.
Q: What diagnostic functions are available?
A: The supplied specifications identify over-range and under-range detection for monitoring abnormal input signal conditions.
Q: Does the module include configurable signal filtering?
A: Yes. Selectable input filters are provided to assist in reducing measurement fluctuations caused by electrical noise or process disturbances.
Field Installation Guidelines
-
Install the module on a compatible POINT I/O terminal base and DIN rail assembly before applying field power.
-
Verify polarity and loop wiring of all current transmitters before energizing the circuit.
-
Route analog signal wiring separately from motor feeders, contactor wiring, and variable frequency drive output cables.
-
Ground cable shields according to plant instrumentation standards to minimize induced noise.
-
Configure the correct input range before commissioning field instruments.
-
Validate loop current values using calibrated test equipment during startup procedures.
-
Inspect terminal connections periodically to maintain signal integrity and prevent measurement errors.
