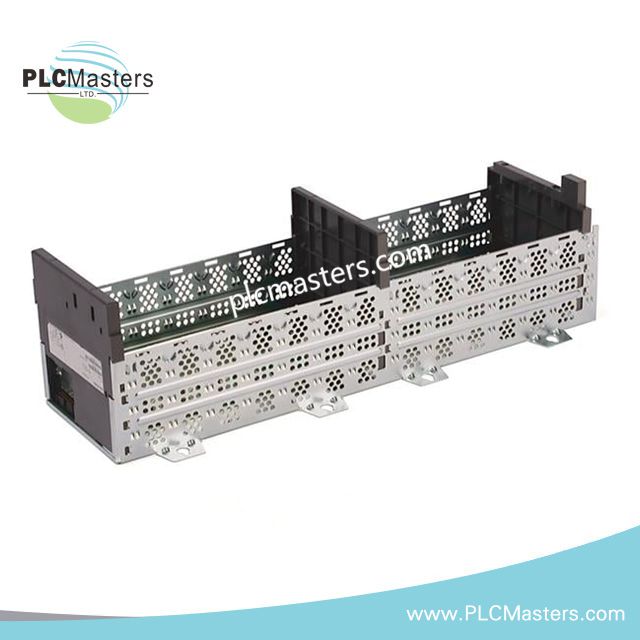

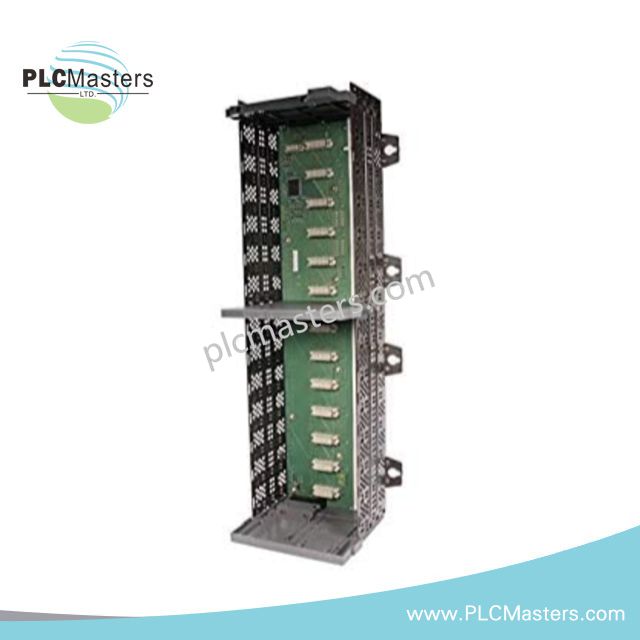

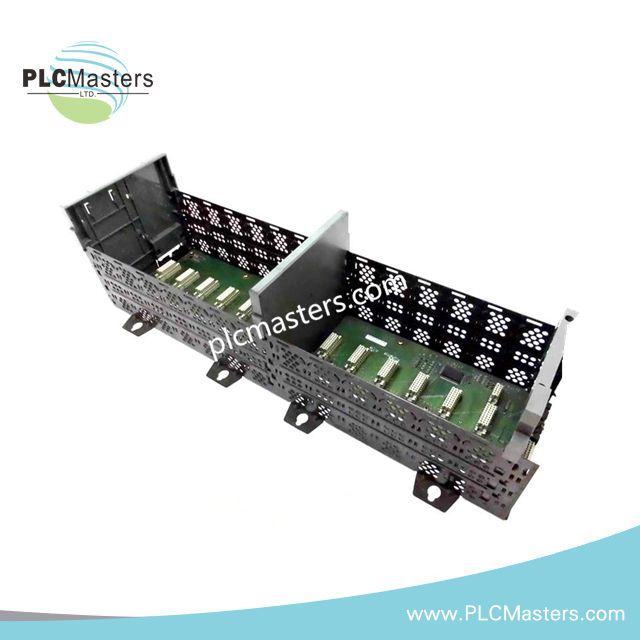

Allen-Bradley 1746-A13 SLC 500 13 Slot PLC Chassis
$123.00
$320.00
Description
Product Description
The 1746-A13 from Allen-Bradley is a 13-slot chassis designed for the SLC 500 control platform, providing a structured backplane for housing processors, power supplies, and I/O modules. It serves as the central mounting and communication platform for SLC systems, enabling reliable data exchange between installed modules.
This chassis is intended for panel-mounted installations and supports flexible system expansion, including vertical chassis linking using an interconnect cable. With a robust backplane design and defined current capacity, it ensures stable operation across a wide range of industrial control applications.
The 1746-A13 accommodates standard 1746-series modules and is suitable for medium-scale control systems requiring multiple I/O points and communication modules.
Key Technical Specifications
System Configuration
-
Number of Slots: 13 module positions
-
Compatible Modules: SLC 500 (1746 series) I/O, CPU, and power supply modules
-
Expansion Capability: Supports vertical chassis interconnection via 1746-C9 cable
-
Maximum Vertical Distance: up to 152 mm (6 inches) between chassis
Backplane Capacity
-
Backplane Current:
-
10 A @ 5.1V DC
-
2.88 A @ 24V DC
Mechanical Specifications
-
Mounting Type: Panel mount
-
Mounting Tabs: 8 integrated tabs
-
Dimensions: standard SLC 500 chassis form factor
-
Weight: 1.84 kg
Environmental Conditions
-
Operating Temperature: 0°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Relative Humidity: 5% to 95% (non-condensing)
Functional Features
-
Centralized backplane for module communication and power distribution
-
Supports multi-chassis configurations for system expansion
-
Rugged design suitable for industrial control panels
-
Compatible with a wide range of SLC 500 modules
Applications
-
Machine control systems
-
Manufacturing automation lines
-
Material handling systems
-
Packaging and processing equipment
FAQ
Q: Can multiple chassis be connected together?
A: Yes, vertical expansion is supported using a 1746-C9 cable, allowing multiple chassis to operate within a single system.
Q: What modules can be installed in this chassis?
A: It supports all standard 1746-series SLC 500 modules, including processors, I/O modules, and communication interfaces.
Q: Is this chassis rack-mounted or panel-mounted?
A: The 1746-A13 is designed for panel mounting using integrated mounting tabs.
