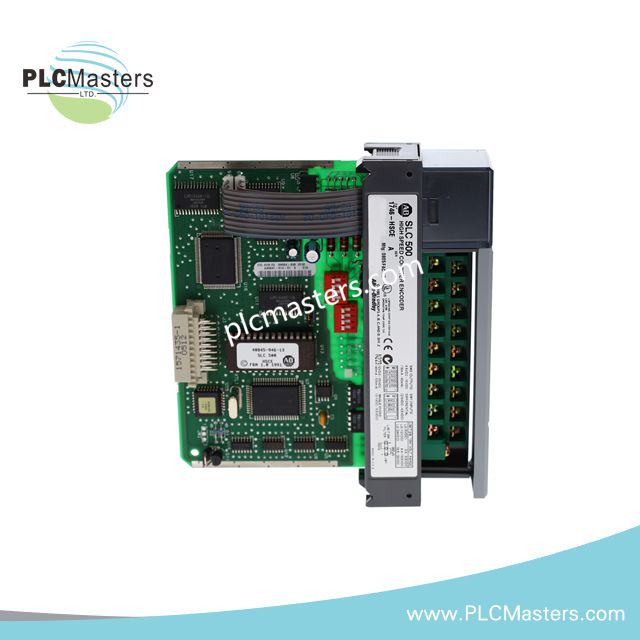

Allen-Bradley 1746-HSCE SLC 500 High-Speed Counter Module
$123.00
$320.00
Description
Product Description
The 1746-HSCE is a dedicated high-speed counter module engineered for the Allen-Bradley SLC 500 PLC platform. Designed for high-frequency motion and position monitoring applications, this module provides one bidirectional counter channel capable of processing quadrature, pulse/direction, and up/down encoder signals with high accuracy.
The Allen-Bradley 1746-HSCE supports multiple operating modes including range, rate, and sequencer functions, making it suitable for advanced counting, positioning, and speed measurement tasks in automated machinery and motion control systems.
Equipped with four open-collector outputs and multi-voltage compatibility, the module integrates easily with industrial encoders, sensors, and control devices operating at 5V DC, 12V DC, or 24V DC levels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | SLC 500 |
| Product Type | High-Speed Counter Module |
| Model Number | 1746-HSCE |
| UPC | 662073893684 |
| Counting Channels | 1 Bidirectional Channel |
| Input Signal Types | Quadrature, Pulse/Direction, Up/Down |
| Number of Inputs | 4 High-Speed Inputs |
| Number of Outputs | 4 Outputs |
| Output Configuration | Open Collector Outputs |
| Supported Operating Modes | Range Mode, Rate Mode, Sequencer Mode |
| Supported Encoder Interface | Incremental Encoder Compatible |
| Output Voltage Ratings | 5V DC, 12V DC, 24V DC |
| Sequencer Mode Throughput | 1.8 ms |
| Range Mode Throughput | 3.9 ms |
| Isolation Voltage | 1500V Tested |
| Power Consumption | 1.2 W at 5.1V DC |
| Backplane Compatibility | SLC 500 Chassis |
| Type | High-Speed Counting and Motion Feedback |
| Weight | 0.55 lb |
Key Features
-
Single-channel bidirectional high-speed counter
-
Supports quadrature encoder inputs
-
Compatible with pulse/direction and up/down counting modes
-
Four integrated open-collector outputs
-
Multi-voltage encoder support from 5V DC to 24V DC
-
Fast throughput for high-speed automation processes
-
Electrical isolation for improved system protection
-
Designed for SLC 500 modular PLC systems
Supported Input Modes
The 1746-HSCE can process several industrial encoder and counter signal formats:
-
Quadrature encoder signals
-
Pulse and direction inputs
-
Up/down pulse counting
-
Rate measurement
-
Sequencer operations
-
Range-based positioning control
Typical Applications
-
Conveyor position tracking
-
Rotary encoder feedback systems
-
Packaging machine synchronization
-
Cut-to-length machinery
-
Industrial speed monitoring
-
Material handling automation
-
Motion control interfaces
-
Automated assembly equipment
FAQ
What encoder types are compatible with the 1746-HSCE?
The module supports incremental encoders using quadrature, pulse/direction, and up/down signal formats.
How many outputs are available on the module?
The module includes four open-collector digital outputs for control and signaling functions.
Can the 1746-HSCE operate with 24V DC encoders?
Yes. The module supports encoder and output voltage levels at 5V DC, 12V DC, and 24V DC.
Which PLC platform is compatible with this module?
The 1746-HSCE is specifically designed for Allen-Bradley SLC 500 control systems.
