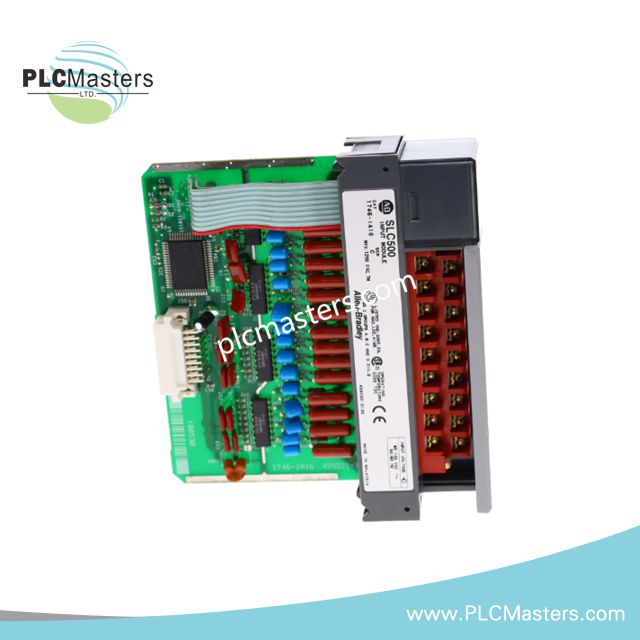

Allen-Bradley 1746-IA16 SLC 500 Digital Input Module
$123.00
$320.00
Description
Product Description

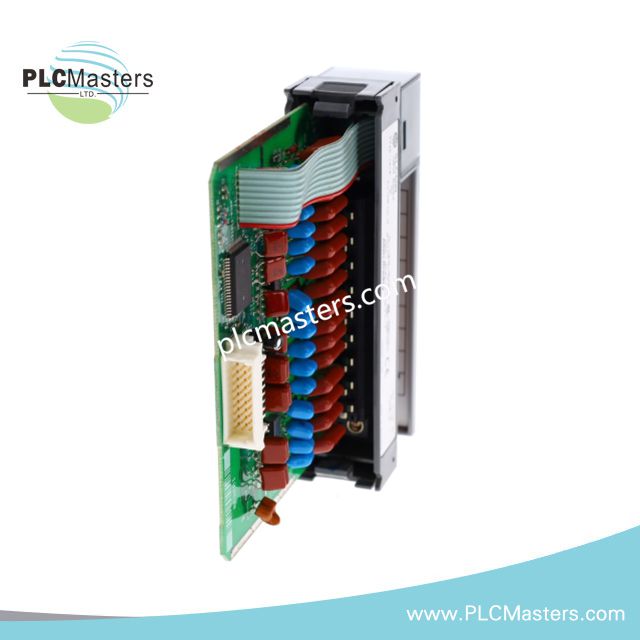

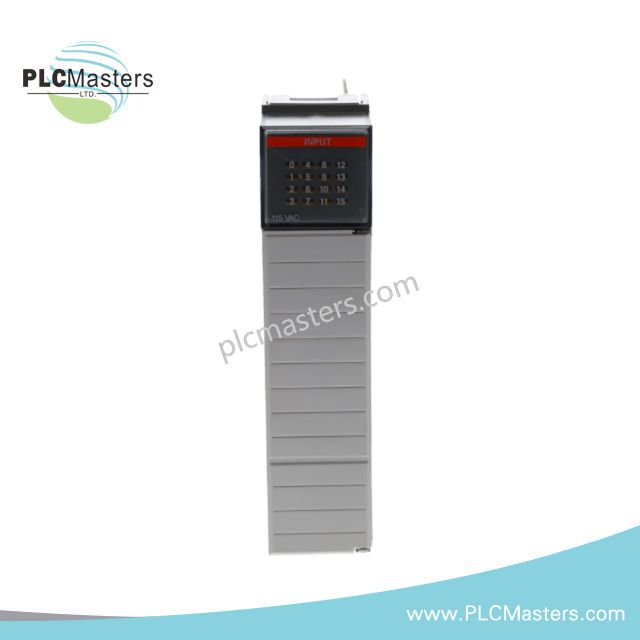

The 1746-IA16 by Allen-Bradley is a 16-channel AC digital input module developed for the SLC 500 programmable controller platform. Designed for reliable signal acquisition in industrial control systems, this module accepts 100/120V AC discrete input signals from field devices such as pushbuttons, selector switches, auxiliary contacts, and sensors.
Built for rack-mounted SLC 500 systems, the module integrates directly into the chassis backplane and provides LED-based channel diagnostics for fast troubleshooting and commissioning. The removable terminal block design simplifies wiring maintenance and replacement procedures in production environments.
The Allen-Bradley 1746-IA16 is commonly used in manufacturing lines, material handling systems, process automation cabinets, and machine control applications where stable AC input monitoring is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | SLC 500 |
| Model Number | 1746-IA16 |
| Module Type | Digital AC Input Module |
| Input Channels | 16 Points |
| Input Voltage Category | 100/120V AC |
| Operating Voltage Range | 85–132V AC |
| Nominal Frequency | 47–63 Hz |
| Minimum Input Signal Current | 10 mA |
| Maximum Off-State Current | 2 mA |
| Maximum Inrush Current | 0.8 A |
| Backplane Current Consumption | 85 mA at 5V DC |
| Total Backplane Load | Approx. 0.37 A |
| Heat Dissipation | 4.8 W Maximum |
| Heat Dissipation Per Point | 0.27 W |
| Isolation | Optically Isolated Inputs |
| Status Indicators | Individual LED Indicators |
| Terminal Type | Screw Clamp Terminal |
| Wiring Interface | Removable Terminal Block |
| Mounting Method | Rack Mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Weight | 0.6 lbs |
Key Functional Features
-
16 isolated AC input channels for discrete field signal monitoring
-
Compatible with SLC 500 chassis architectures
-
LED status indication for each input point
-
Designed for 85–132V AC industrial control circuits
-
Removable terminal block for simplified maintenance
-
High noise immunity suitable for electrically demanding environments
-
Reliable operation under continuous industrial duty cycles
Typical Applications
The 1746-IA16 module is frequently installed in:
-
Conveyor and packaging systems
-
Industrial machine control panels
-
Water and wastewater automation
-
Factory process monitoring
-
Material handling equipment
-
Motor control and auxiliary signal interfacing
FAQ
What type of signals does the 1746-IA16 accept?
This module is designed for standard 100/120V AC discrete input signals from industrial field devices including switches, relays, and contact outputs.
Is the 1746-IA16 compatible with all SLC 500 processors?
Yes. The module is compatible with standard SLC 500 chassis systems using supported Allen-Bradley SLC processors and power supplies.
Does the module include input diagnostics?
Yes. Each input channel includes a dedicated LED indicator for real-time status monitoring and troubleshooting.
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
