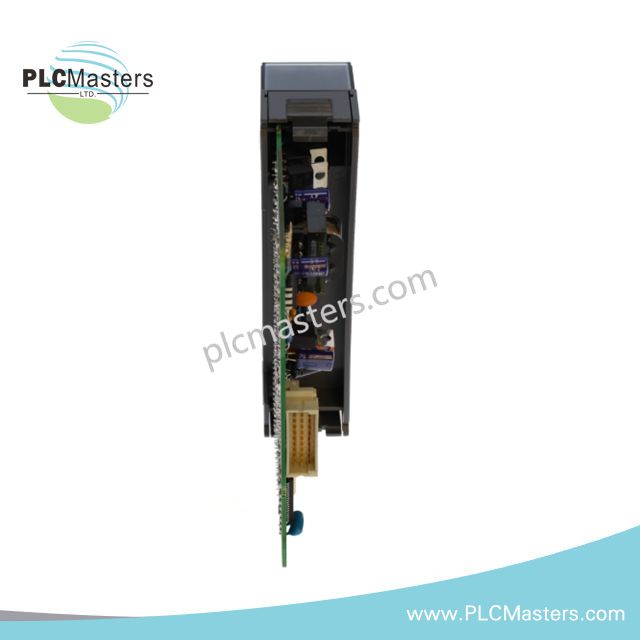

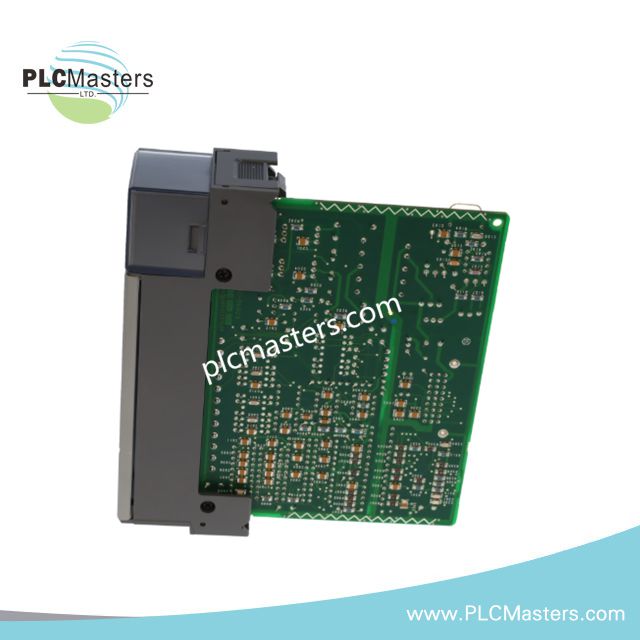

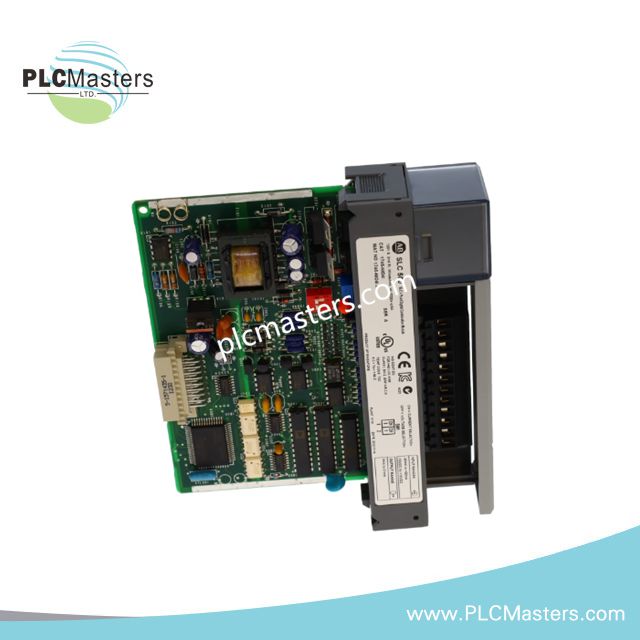

Allen-Bradley 1746-NIO4I SLC 500 Analog Combination Module
$123.00
$320.00
Description
Allen-Bradley 1746-NIO4I SLC 500 Analog Combination Module
Configured for mixed analog signal acquisition and analog output execution in SLC 500 I/O architectures, the Allen-Bradley 1746-NIO4I (1746-NIO4I Analog Combination Module) provides direct physical/electrical interface between field current/voltage signals and PLC backplane processing channels.
Suffix Breakdown & Model Matrix
The 1746-NIO4I designation does not contain structured functional suffix segmentation. The model is identified as a single cataloged SLC 500 analog combination module without optional ordering suffix branches.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1746-NIO4I |
| Brand | Allen-Bradley |
| Weight | 0.45 kg |
| Dimensions | Single-slot SLC 500 rack module |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 55 mA @ 5 VDC / 90 mA @ 24 VDC backplane draw |
| Input Channels | 2 analog inputs |
| Output Channels | 2 analog current outputs |
| Input Signal Range | -20 mA to +20 mA, -10 VDC to +10 VDC |
| Output Range | 0-20 mA, -10 VDC to +10 VDC |
| Resolution | 16 bit input / 14 bit output |
| Update Time | 512 microseconds |
| Step Response | 60 ms in / 2.5 ms out |
| Isolation Voltage | 500 VAC tested |
| Bandwidth | 10 Hz |
| Mounting Style | Rack mount |
| Backplane Interface | SLC 500 backplane bus |
Backplane Signal Processing Characteristics
The module interfaces with the SLC 500 backplane using cyclic I/O scanning and end-of-scan update execution. Input conversion is performed via sigma-delta sampling with programmable filtering applied prior to backplane transfer. Backplane loading is defined by fixed current draw characteristics and deterministic scan timing, with no field-side hot-swap support.
Frequently Asked Questions (FAQ)
Q: Can the 1746-NIO4I be hot-swapped under energized rack conditions?
A: The module does not support field-side hot-swap operation. Removal or insertion requires rack power isolation to avoid backplane disturbance.
Q: How is backplane current distributed during module operation?
A: Current consumption is split between 5 VDC logic rail (55 mA) and 24 VDC backplane rail (90 mA), fixed during scan operation.
Q: Does firmware affect I/O update timing or conversion cycle?
A: Conversion timing (512 microseconds update time) is hardware-defined and not modified by firmware revision level.
Field Installation Guidelines
-
Insert module into an SLC 500 compatible rack slot with backplane alignment confirmed.
-
Ensure rack power is disabled before installation or removal to prevent backplane signal disturbance.
-
Use shielded twisted pair wiring for analog inputs and route away from high-voltage conductors.
-
Terminate cable shields at a single-point ground reference at the chassis end only.
-
Maintain separation between input and output wiring paths to reduce coupling on differential channels.
-
Verify terminal block seating prior to energizing system backplane.
