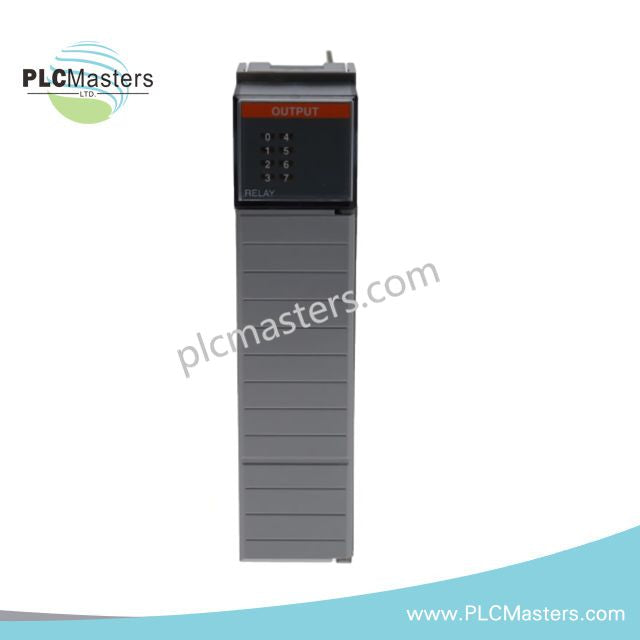

Allen-Bradley 1746-OW8 SLC 500 Relay Output Module
$123.00
$320.00
Description
Product Description

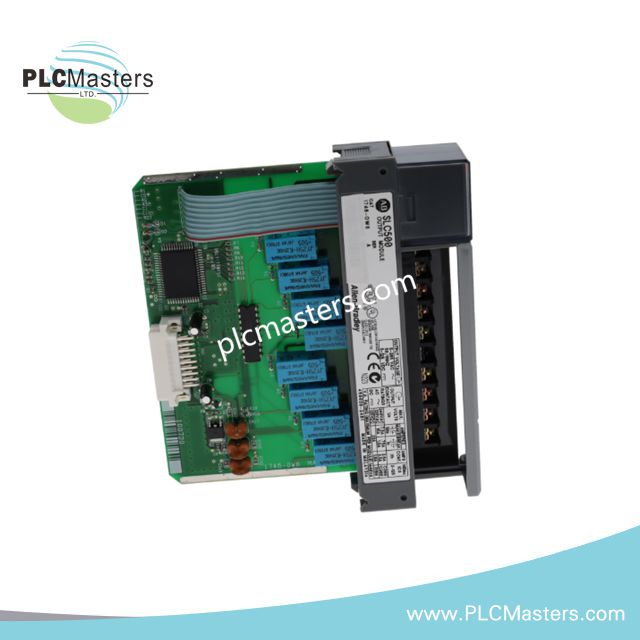

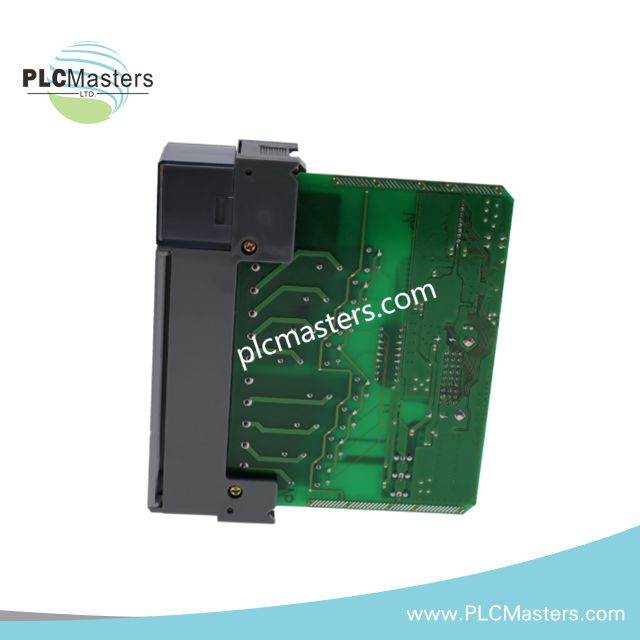

The Allen-Bradley 1746-OW8 digital relay output module is designed for the SLC 500 programmable controller platform, providing reliable isolated relay switching for industrial control systems. The module features eight normally open relay outputs divided into two isolated groups, with four channels sharing a common terminal per group.
Built for mixed-voltage control environments, the 1746-OW8 supports both AC and DC load switching, making it suitable for motor starters, pilot devices, solenoids, alarms, and interposing relay applications. Its chassis-mounted construction ensures stable installation within SLC 500 racks and control cabinets.
The 1746-OW8 module is commonly deployed in factory automation, material handling systems, packaging equipment, process control panels, and machine automation architectures requiring flexible relay-based output control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-OW8 |
| Product Series | SLC 500 |
| Product Type | Digital Relay Output Module |
| Module Category | PLC Output Module |
| Output Channels | 8 Relay Outputs |
| Output Configuration | Normally Open Relay Contacts |
| Output Groups | 2 Groups |
| Channels per Group | 4 Outputs per Common |
| Operating Voltage | 5–265 VAC |
| DC Operating Voltage | 5–125 VDC |
| Frequency Range | 50/60 Hz |
| Output Current at 120 VAC | 1.5 A per output |
| Output Current at 24 VDC | 1.2 A per output |
| Backplane Current Draw | 0.85–0.9 A |
| Signal ON Delay | 10 ms maximum |
| Signal OFF Delay | 10 ms maximum |
| Step Response Time | 60 ms ON / 2.5 ms OFF |
| Mounting Type | Chassis Mount |
| Isolation Type | Relay Isolation |
| Weight | 1.0 lb |
Key Features
-
Eight independent relay contact outputs
-
Compatible with SLC 500 PLC chassis systems
-
Supports both AC and DC switching applications
-
Two isolated commons for flexible wiring layouts
-
Suitable for inductive and resistive loads
-
Mechanical relay design for electrical isolation
-
Designed for industrial-duty control environments
Typical Applications
The 1746-OW8 relay output module is widely used in:
-
Conveyor and material handling systems
-
Packaging and assembly machinery
-
Industrial motor control panels
-
Pump and valve automation
-
Alarm and annunciation systems
-
OEM machine control platforms
-
Process automation interfaces
FAQ
What type of outputs does the 1746-OW8 provide?
The module uses normally open electromechanical relay contacts capable of switching both AC and DC loads.
Can the 1746-OW8 switch high-voltage loads?
Yes. The module supports load voltages from 5 to 265 VAC and 5 to 125 VDC within rated current limits.
How are the outputs grouped?
The eight outputs are divided into two isolated groups, with four channels sharing one common connection.
Is the 1746-OW8 compatible with all SLC 500 systems?
The module is designed for Allen-Bradley SLC 500 chassis-based PLC systems supporting 1746-series I/O modules.
