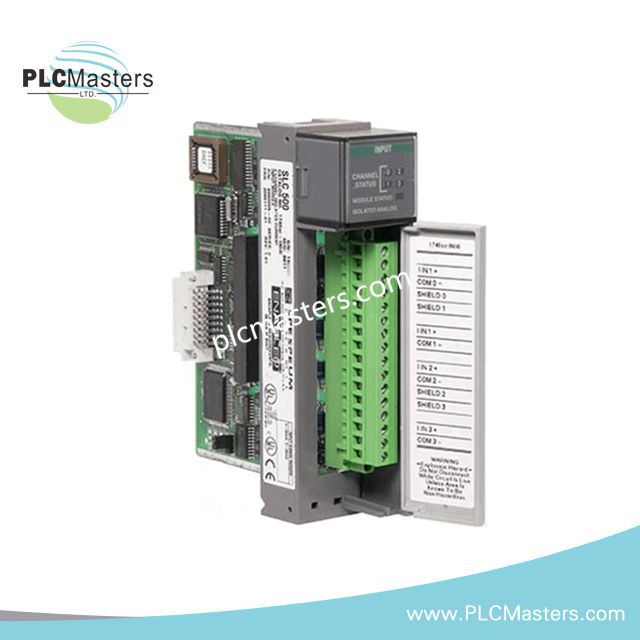

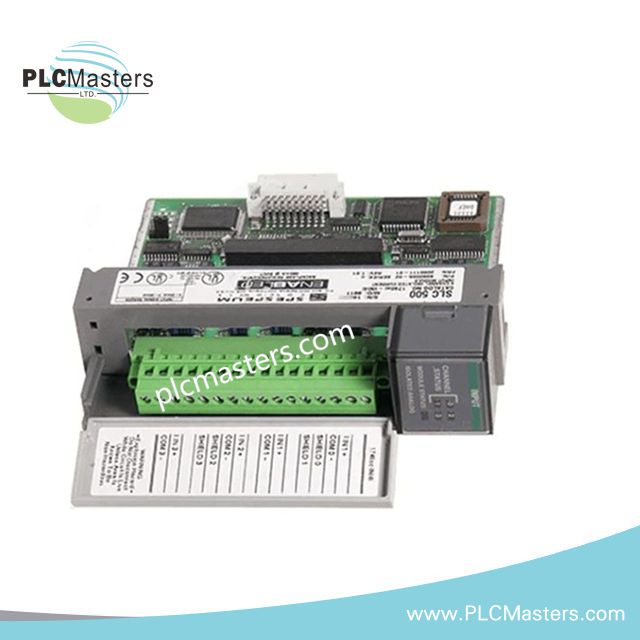

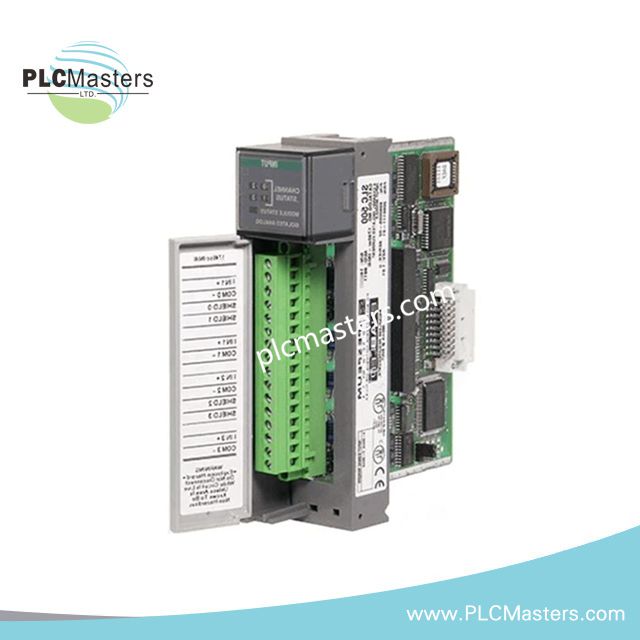

Allen-Bradley 1746SC-INI4VI Isolated Analog Input Module

The Allen-Bradley 1746SC-INI4VI, also cataloged as the 1746SC-INI4VI isolated analog input module, serves as the primary signal acquisition interface utilized to execute multi-channel analog voltage and current measurement across SLC 500 platforms. It provides four electrically isolated input channels supporting sigma-delta based analog-to-digital conversion within the SLC 500 I/O architecture.

Suffix Breakdown & Model Matrix

No structured suffix segmentation is defined for the 1746SC-INI4VI part number. The identifier corresponds directly to the module type and channel configuration within the SLC 500 compatible analog input family.

Hardware Specifications

Allen-Bradley SLC 500 Backplane Acquisition Characteristics

The module interfaces with the SLC 500 backplane using cyclic data exchange. Channel isolation is implemented at the input stage, separating field wiring from backplane logic domain. Sigma-delta conversion introduces oversampling behavior for low-frequency signal stabilization. Backplane loading is determined by continuous 570 mA consumption profile, affecting slot-level power budgeting across multi-module chassis configurations.

Frequently Asked Questions

Q: Does the 1746SC-INI4VI support hot insertion in an energized SLC 500 chassis?
A: The module is designed for chassis slot integration, but insertion under energized backplane conditions requires adherence to SLC 500 system power-down procedure to avoid bus disturbance.

Q: How is channel isolation implemented across the four inputs?
A: Each channel is electrically isolated from the backplane and adjacent channels through internal isolation barriers, reducing cross-channel coupling on mixed signal ranges.

Q: What is the impact of backplane current consumption on multi-slot configurations?
A: The module draws 570 mA from the 5 V backplane rail, which must be included in total chassis power budgeting to prevent backplane voltage sag under full slot loading.

Field Installation Guidelines

• Insert module into designated 1746 I/O slot with chassis power removed.

• Verify backplane connector alignment prior to full seating force application.

• Maintain separation of analog field wiring from high-noise conductors to reduce coupling into sigma-delta conversion front end.

• Use shielded twisted pair for voltage and current input channels where applicable.

• Ensure shield termination at single-point ground to prevent ground loop formation.
