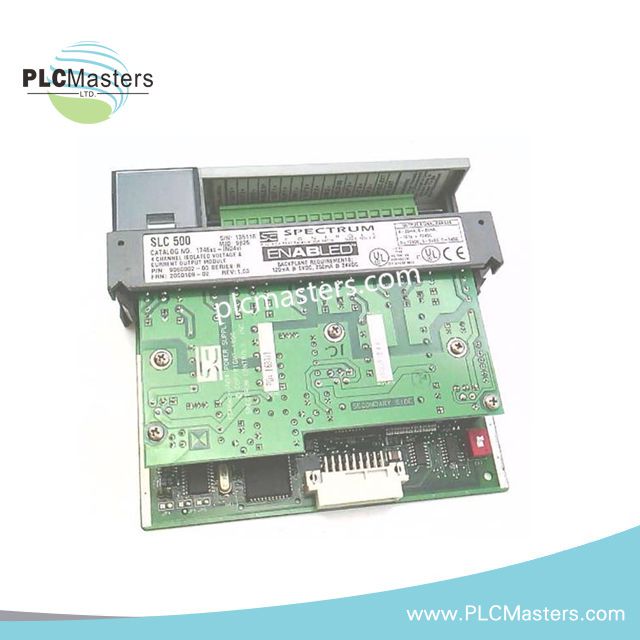

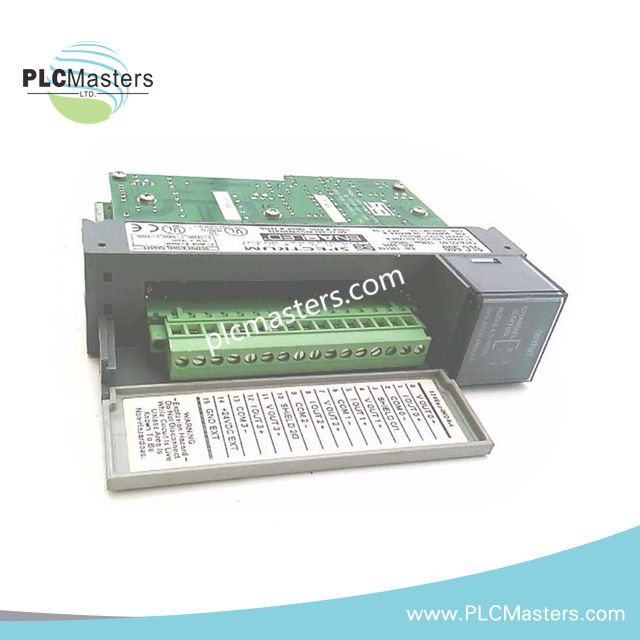

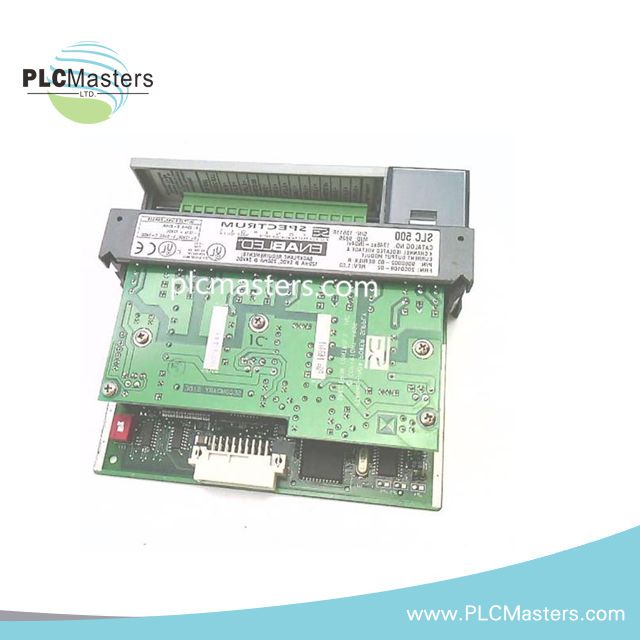

Allen-Bradley 1746SC-INO4VI Isolated Analog Output Module

The Allen-Bradley 1746SC-INO4VI, also cataloged as the 1746SC-INO4VI isolated analog output module, serves as the primary SLC 500 analog signal generation interface utilized to execute multi-channel voltage and current waveform output across SLC 500 backplane systems. It provides four galvanically isolated output channels supporting 16-bit digital-to-analog conversion for field device actuation.

Suffix Breakdown & Model Matrix

No documented suffix segmentation exists for 1746SC-INO4VI. The identifier maps directly to a fixed 4-channel isolated analog output configuration within the Spectrum Controls SLC 500 module family.

Hardware Specifications

SLC 500 Backplane Output Architecture

The module interfaces through the SLC 500 backplane as a deterministic output device with per-channel DAC update cycles. Each channel operates with independent isolation barriers separating field wiring from logic backplane domains. Output scaling is handled via 16-bit resolution conversion with linear mapping across voltage and current modes. Step response is constrained to 1 ms settling to 95% full-scale, defining loop update latency in closed-loop control applications.

Isolation structure is implemented as dual-domain separation: channel-to-channel isolation and field-to-backplane isolation, both rated at 500 VAC continuous. This prevents cross-channel interference under mixed voltage/current configuration.

Frequently Asked Questions

Q: Can all four channels operate in mixed voltage and current modes simultaneously?
A: Each channel supports independent configuration for voltage or current output modes. Mixed operation is determined per-channel via module configuration, with no global mode locking.

Q: What happens to outputs during backplane power interruption?
A: On loss of backplane power, output stages transition to defined safe state behavior as implemented in module firmware, with DAC outputs decaying according to internal discharge characteristics.

Q: Does channel-to-channel isolation affect update synchronization?
A: Channel isolation is electrical only. DAC update cycles remain synchronized through backplane timing, while isolation prevents analog cross-coupling between output stages.

Field Installation Guidelines

• Install module into a single SLC 500 chassis slot with power removed.

• Verify backplane connector seating alignment before applying mechanical locking force.

• Maintain separation between analog output wiring and high-frequency switching conductors.

• Use shielded cabling for low-level voltage outputs where noise susceptibility is present.

• Terminate cable shields at a single-point ground reference to avoid circulating current loops.
