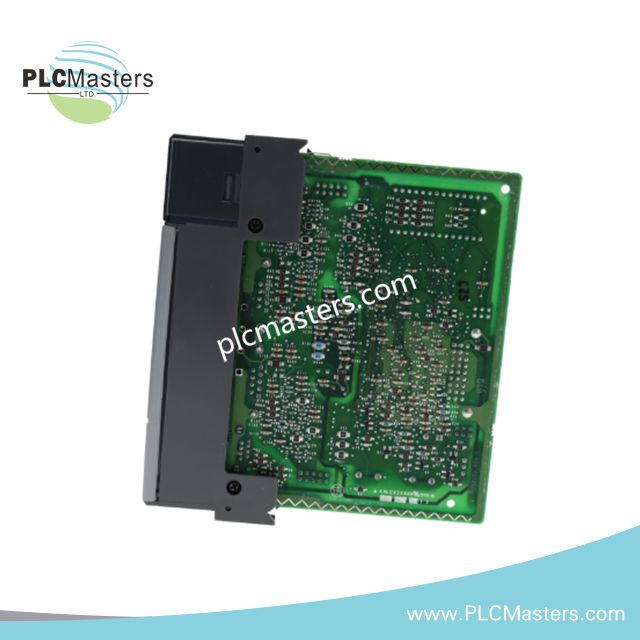

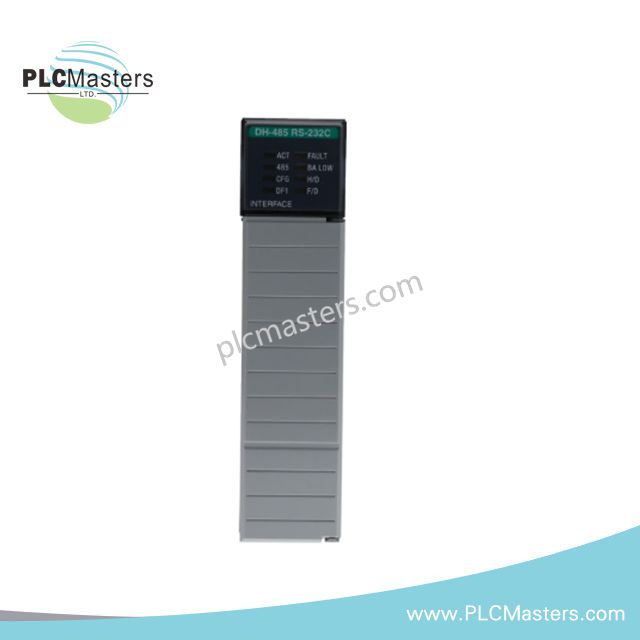

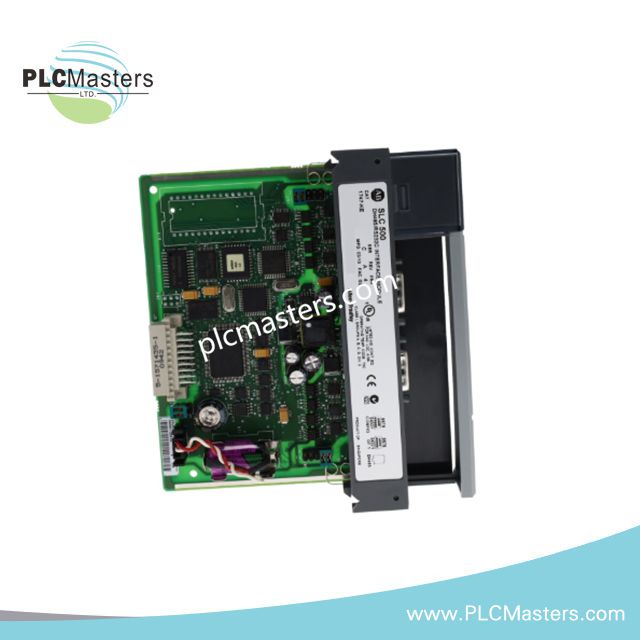

Allen-Bradley 1747-KE SLC 500 Interface Module
$123.00
$320.00
Description
Overview
The Allen-Bradley 1747-KE is a communication interface module engineered for the SLC 500 control platform. The module provides protocol conversion and serial communication capabilities between DH-485 networks and DF1-compatible devices, enabling integration of controllers, HMIs, programming terminals, and supervisory systems.
Designed as a single-slot chassis module, the 1747-KE installs directly into any standard SLC 500 rack and supports multiple serial communication standards including RS-232, RS-422, RS-423, and RS-485.
The module features dedicated communication and configuration interfaces, making it suitable for industrial applications requiring reliable data exchange between legacy automation equipment and host systems.
Key Features
-
Supports DH-485 and DF1 communication protocols
-
Compatible with Allen-Bradley SLC 500 chassis systems
-
Single-slot module design
-
Integrated configuration, DF1, and DH-485 communication ports
-
Supports RS-232/422/423/485 serial standards
-
Electrical isolation between ports and backplane
-
DIN industrial environment compliance
-
Compatible with 1747-C11, 1747-C13, and 1747-AIC accessories
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Allen-Bradley |
| Product Series | SLC 500 |
| Model Number | 1747-KE |
| Module Type | Communication Interface Module |
| Supported Protocols | DH-485, DF1 |
| Communication Interfaces | RS-232, RS-422, RS-423, RS-485 |
| Number of Ports | 3 Ports |
| Configuration Port | 1 x Configuration Port |
| DF1 Port | 1 x DF1 Serial Port |
| DH-485 Port | 1 x DH-485 Network Port |
| Transmission Speed | 300 bps to 19.2 Kbps |
| Slot Requirement | Single Slot |
| Backplane Current @ 5V DC | 150 mA |
| Backplane Current @ 24V DC | 40 mA |
| Port Isolation | 500 VDC isolation between ports and backplane |
| Connector Type | 6-Pin Phoenix Connector |
| Recommended Cable | Belden 9463 |
| Operating Voltage | 5–24 VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Shock Resistance | Industrial-grade |
| Vibration Resistance | Industrial-rated operation |
| Certifications | UL, C-UL, CE, C-Tick |
| Hazardous Location Rating | Class I, Division 2, Groups A, B, C, D |
| Weight | 0.93 lbs |
Communication Functions
The 1747-KE module enables communication between SLC processors and external serial devices over DH-485 networks. It is commonly used for:
-
PLC programming and diagnostics
-
SCADA and HMI integration
-
Data acquisition systems
-
Industrial serial networking
-
Legacy equipment communication
-
Remote monitoring applications
Installation Compatibility
The module mounts directly into any Allen-Bradley SLC 500 chassis without requiring additional slot adapters. For DH-485 networking, the interface can operate with:
-
1747-C11 communication cable
-
1747-C13 communication cable
-
1747-AIC isolated link coupler
FAQ
What protocols are supported by the 1747-KE module?
The 1747-KE supports both DH-485 and DF1 industrial communication protocols.
How many communication ports are available?
The module includes three dedicated interfaces: one configuration port, one DF1 port, and one DH-485 port.
Can the module communicate through RS-485 networks?
Yes. The interface supports RS-232, RS-422, RS-423, and RS-485 serial communication standards.
Is the 1747-KE compatible with all SLC 500 racks?
Yes. The module is designed for installation in standard Allen-Bradley SLC 500 chassis systems using a single slot.
