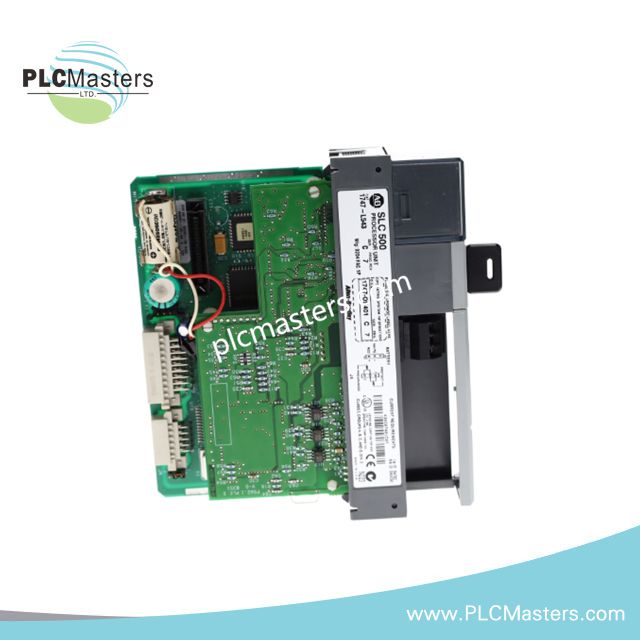

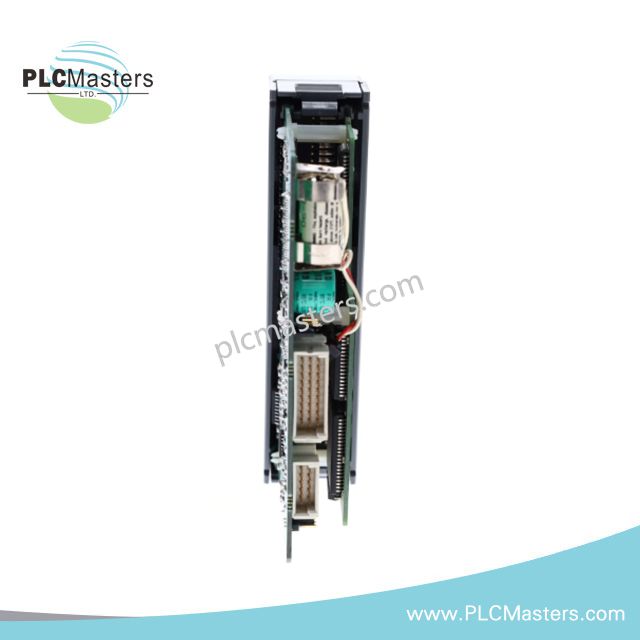

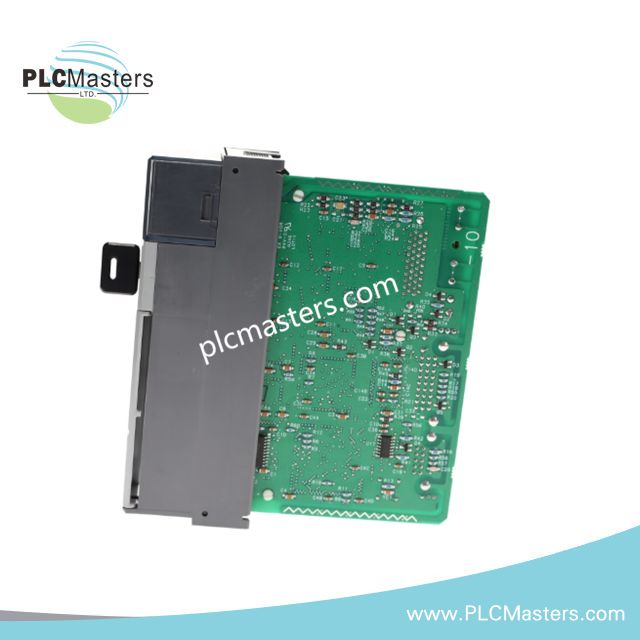

Allen-Bradley 1747-L543/C SLC 5/04 Processor Module

The Allen-Bradley 1747-L543/C, also cataloged as the 1747-L543/C SLC 5/04 processor module, operates as a dedicated CPU execution unit for scan-based logic processing and I/O image table management within SLC 500 backplane architectures.

Configured for large-scale cyclic control execution in SLC 5/04 networks, the Allen-Bradley 1747-L543/C (1747-L543/C CPU processor module) provides deterministic instruction processing across distributed digital and analog I/O systems using 64K-word memory and multi-protocol communication interfaces.

Suffix Breakdown & Model Matrix

The suffix “/C” denotes a revision-level hardware configuration within the 1747-L543 product family. No functional differentiation is defined in the provided dataset; core execution, memory mapping, and communication behavior remain consistent across SLC 5/04 architecture variants.

Hardware Specifications

Backplane Execution, I/O Scaling & Network Determinism

Within the Rockwell Automation SLC 500 control architecture, the 1747-L543/C executes cyclic scan logic through backplane-synchronized memory exchange between CPU, local chassis, and distributed I/O adapters. The processor maintains a unified I/O image table covering up to 8192 discrete and 480 analog points, enabling deterministic state updates during each scan cycle.

Backplane bus communication velocity is governed by scan-based execution timing (~0.9 ms/K instruction typical), where instruction sequencing is processed from 64K-word memory in linear execution order. Communication handling is integrated through RS-232, DH-485, and DH+ channels, enabling multi-layer data exchange between local control logic and remote I/O segments.

I/O density scaling is achieved via chassis expansion (up to 3 chassis / 30 slots) and distributed I/O adapters such as DeviceNet interfaces, where memory-mapped addressing maintains deterministic synchronization across heterogeneous networks.

Frequently Asked Questions (FAQ)

Q: Does the 1747-L543/C support simultaneous use of DH+ and DH-485 networks?
A: Yes. Communication ports operate independently, allowing concurrent DH+ and DH-485 operation without shared timing arbitration.

Q: What limits the maximum I/O capacity of the controller?
A: Limits are defined by I/O image table size and chassis segmentation, supporting up to 8192 digital and 480 analog points within system architecture constraints.

Q: Can the processor be hot-swapped during operation?
A: No hot-swapping is supported. CPU replacement requires full system power removal to avoid backplane data corruption.

Field Installation Guidelines

• Install CPU module into SLC 500 chassis with full backplane connector engagement.

• Ensure chassis power is fully isolated before insertion or removal of processor unit.

• Maintain shielded separation between communication cables (DH+, RS-232) and power conductors.

• Verify correct chassis addressing when using multiple chassis configurations.

• Ensure grounding continuity across all racks to stabilize backplane reference potential.

• Confirm firmware and memory backup integrity prior to commissioning sequence.
