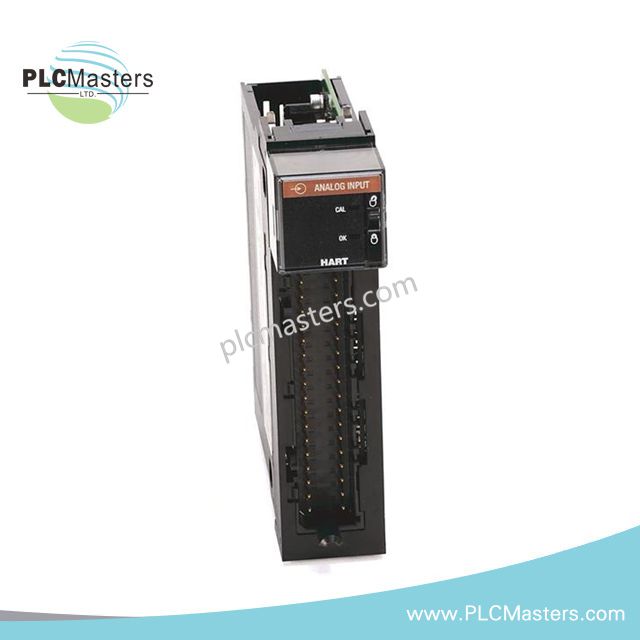

Allen-Bradley 1756-IF8HK HART Analog Input Module
$123.00
$320.00
Description
Allen-Bradley 1756-IF8HK HART Analog Input Module
Configured for differential analog signal acquisition with integrated HART communication in ControlLogix backplane systems, the Allen-Bradley 1756-IF8HK, also cataloged as the 1756-IF8HK HART analog input module, provides direct electrical conversion of 8-channel differential voltage/current inputs with embedded HART digital signal extraction across isolated I/O paths.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-IF8HK |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.81 lbs |
| Power Consumption | 3.21–4.01 W max |
| Channels | 8 differential inputs |
| Signal Types | Current and voltage with HART overlay |
| Resolution | 16–21 bits |
| Backplane Current | 300 mA at 5.1 VDC, 70 mA at 24 VDC |
| Thermal Dissipation | 13.7 BTU/hour |
| Enclosure | Open input module |
| Protocol Support | HART |
EtherNet/IP Backplane HART Signal Decoupling Behavior
The module performs simultaneous acquisition of analog process signals and superimposed HART digital communication over shared current loop wiring. Within the ControlLogix backplane architecture, analog-to-digital conversion and HART demodulation are executed in parallel processing paths, separating low-frequency process variables from high-frequency HART FSK signals. Channel-level differential measurement reduces common-mode noise, while backplane scheduling distributes scan load across cyclic I/O updates.
Frequently Asked Questions (FAQ)
Q: Can the module process HART and analog signals simultaneously?
A: Yes. The module extracts HART digital communication while maintaining continuous analog signal conversion per channel.
Q: Are all 8 channels galvanically isolated?
A: The module supports differential inputs with channel-level isolation behavior defined by ControlLogix architecture and terminal configuration.
Q: What limits the number of active channels in high-load operation?
A: Backplane current availability and scan cycle timing determine effective channel update rates under full configuration.
Field Installation Guidelines
The module shall be installed in a ControlLogix chassis slot with system power removed prior to insertion of the RTB assembly. All HART-enabled loops must maintain proper 250 Ω minimum loop resistance to ensure signal modulation integrity. Shielded twisted pair cabling is required for differential inputs, with shield termination performed at a single control cabinet ground point. Wiring routes shall be separated from high-frequency switching conductors to prevent induced noise on HART FSK carrier signals. Terminal block seating must be verified before energizing backplane power.
