Allen-Bradley 1761-CBL-AM00 MicroLogix Communication Cable
$123.00
$320.00
Description

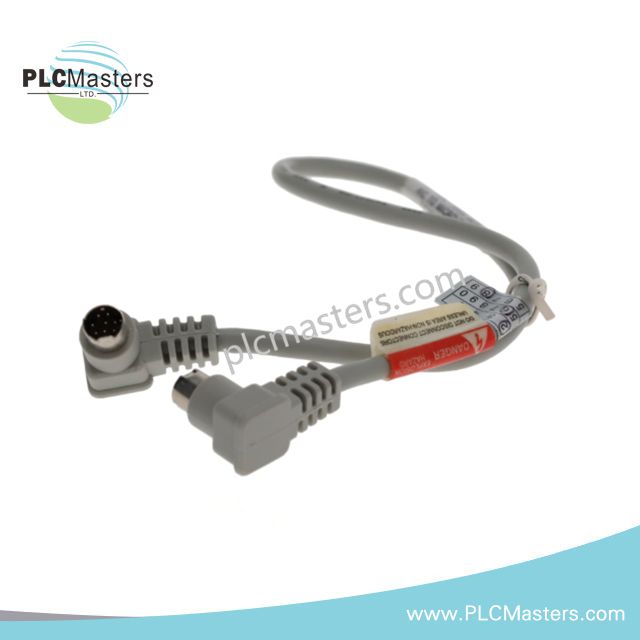

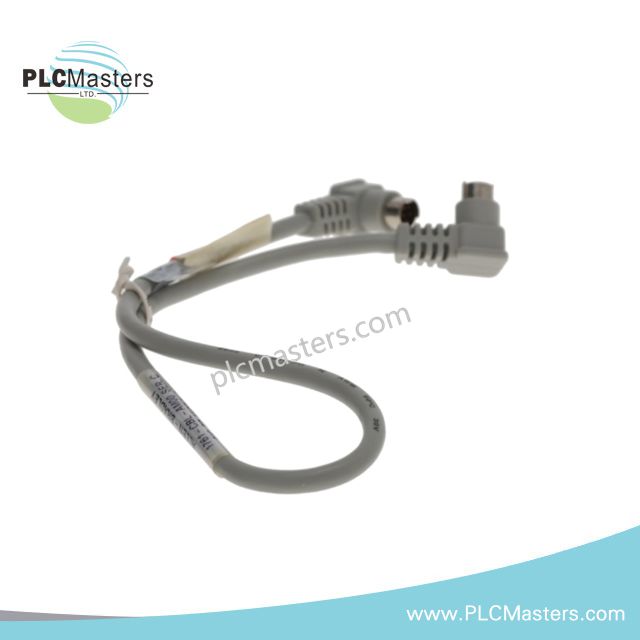

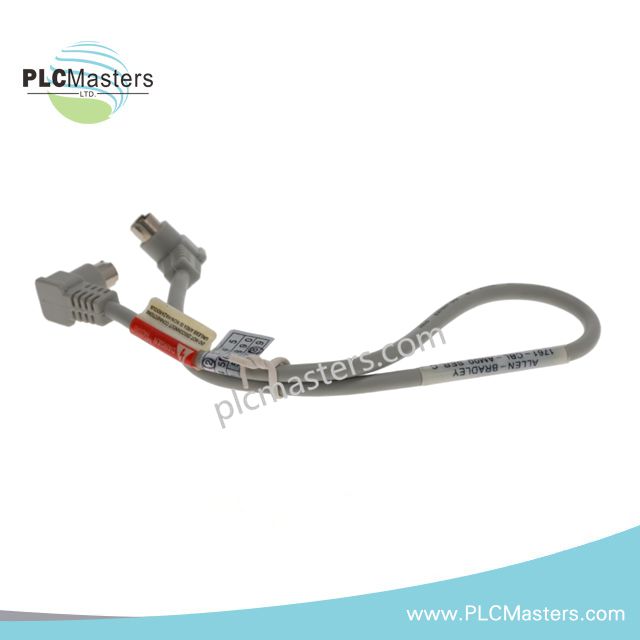

Allen-Bradley 1761-CBL-AM00 MicroLogix Communication Cable
The Allen-Bradley 1761-CBL-AM00, also cataloged as the 1761-CBL-AM00 Communication Cable, operates as a dedicated hardware component for RS-232 and DH-485 serial data transfer within MicroLogix controller communication systems. The cable provides a physical connection path between MicroLogix controllers and programming or interface devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1761-CBL-AM00 |
| Brand | Allen-Bradley |
| Origin | United States |
| Product Type | MicroLogix Communication Cable |
| Compatible Platform | MicroLogix 1000 controllers |
| Communication Protocol | RS-232 / DH-485 |
| Connector Configuration | 8-pin Mini-DIN to 8-pin Mini-DIN |
| Alternate Connector | DB-9 female to Mini-DIN variant |
| Cable Length | 0.5 m |
| Data Transfer Rate | Up to 19.2 Kbps |
| Shielding | Industrial EMI shielding |
| Application Interface | AIC+, DNI modules, programming terminals |
| Weight | 0.04 lbs |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive cable, no external power required |
EtherNet/IP and Industrial Serial Communication Compatibility
The 1761-CBL-AM00 is a passive communication accessory designed for MicroLogix serial connectivity. It provides direct signal routing between controller communication ports and external programming or interface equipment.
The cable supports MicroLogix communication architectures based on RS-232 and DH-485 serial protocols. Shielded construction is applied to reduce signal interference during installation near industrial electrical equipment. The cable is used for programming, monitoring, diagnostics, and controller network connection through compatible MicroLogix interfaces.
Frequently Asked Questions
Q: What communication protocols are supported by the 1761-CBL-AM00 cable?
A: The cable supports RS-232 and DH-485 serial communication connections used with compatible MicroLogix systems.
Q: Does the 1761-CBL-AM00 require an external power supply?
A: No. The cable is a passive communication accessory and does not require an external power source.
Q: Which controller family is compatible with this cable?
A: The cable is designed for MicroLogix 1000 controllers and related programming or interface equipment.
Field Installation Guidelines
Install the 1761-CBL-AM00 between compatible Mini-DIN communication ports with connectors fully seated and mechanically secured. Avoid excessive cable bending or physical stress at connector points.
Route the communication cable separately from high-voltage power wiring, motor cables, and sources of electromagnetic noise. Maintain proper shielding practices and connect only to approved industrial communication interfaces.
Verify serial communication settings, including protocol selection and baud rate configuration, before establishing controller communication through programming or diagnostic software.
