Allen-Bradley 1761-CBL-PM02/C MicroLogix Programming Cable
$123.00
$320.00
Description
Allen-Bradley 1761-CBL-PM02/C MicroLogix Programming Cable

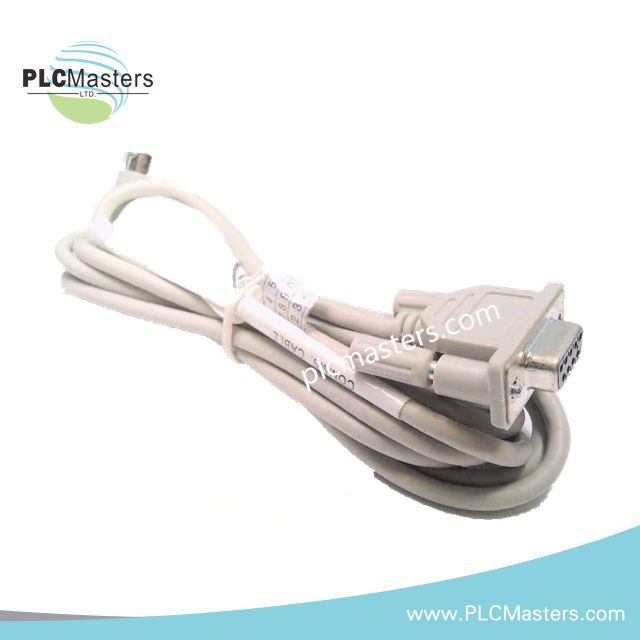

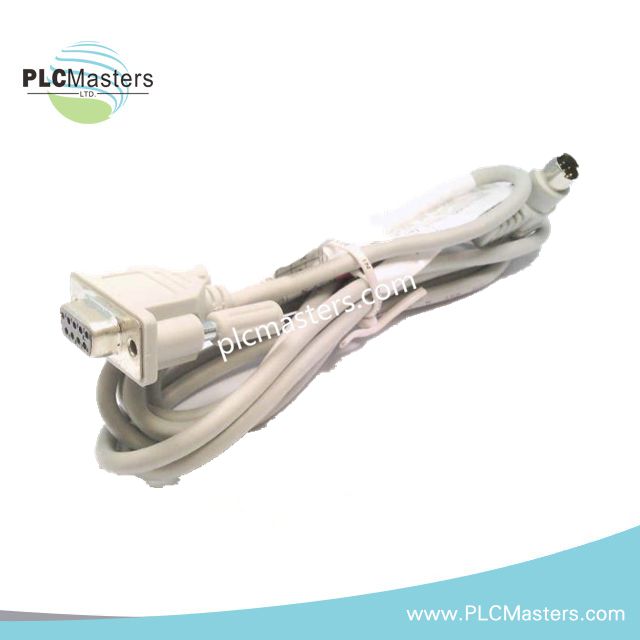

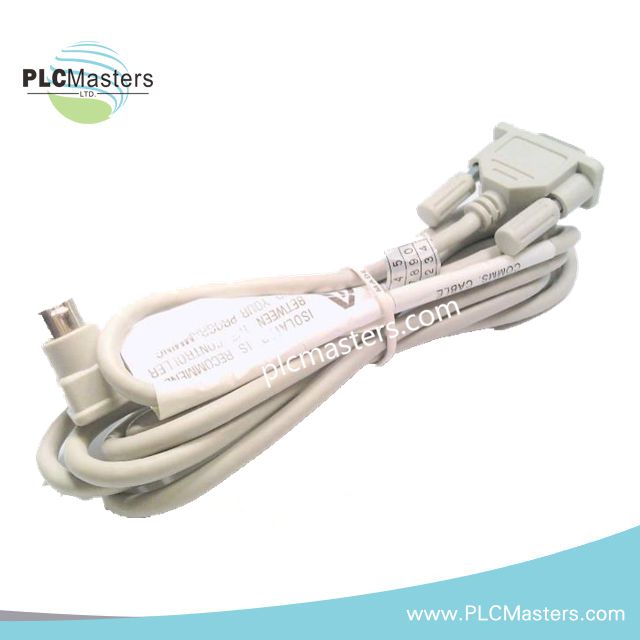

Configured for RS-232 programming communication in MicroLogix controller systems, the Allen-Bradley 1761-CBL-PM02/C (1761-CBL-PM02 Programming Cable) provides direct physical/electrical execution between PC serial interfaces and MicroLogix controller ports. The Series C cable assembly uses a DB-9 female connector to 8-pin Mini-DIN connector for controller programming, monitoring, and diagnostics.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1761-CBL-PM02/C |
| Brand | Allen-Bradley |
| Origin | USA |
| Product Type | Programming Cable |
| Product Line | MicroLogix |
| Connector Configuration | DB-9 female to 8-pin Mini-DIN |
| Communication Interface | RS-232 |
| Compatible Controllers | MicroLogix 1000, MicroLogix 1200, MicroLogix 1500 |
| Cable Length | 2 m (6.6 ft) |
| Data Transfer Rate | Up to 19.2 Kbps |
| Shielding | EMI-resistant industrial-grade shielding |
| Weight | 0.20 kg |
| Dimensions | 2 m cable assembly length |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive cable assembly, no external power required |
EtherNet/IP and MicroLogix Serial Communication Characteristics
The 1761-CBL-PM02/C is a passive serial communication cable designed for MicroLogix controller connections. The cable provides RS-232 signal routing between controller communication ports and PC serial interfaces used with RSLogix 500 programming software.
The cable assembly follows Allen-Bradley MicroLogix connectivity requirements, supporting ladder logic transfer, controller monitoring, and diagnostic operations. The industrial shielding construction reduces susceptibility to electromagnetic interference during control panel installation.
For Allen-Bradley PLC systems, firmware flash compatibility and communication parameter matching must be verified between the connected MicroLogix controller and programming software environment before operation. The cable does not contain active communication processing hardware or firmware.
Frequently Asked Questions
Q: Does the 1761-CBL-PM02/C contain an internal communication converter?
A: No. The cable is a passive RS-232 connection assembly and does not include active signal conversion electronics.
Q: Which MicroLogix controllers are compatible with the 1761-CBL-PM02/C?
A: The cable supports MicroLogix 1000, MicroLogix 1200, and MicroLogix 1500 controller communication connections.
Q: What connector interfaces are provided by the cable assembly?
A: The cable provides a DB-9 female connector for the PC side and an 8-pin Mini-DIN connector for the MicroLogix controller side.
Field Installation Guidelines
Install the cable with correct connector alignment and secure the DB-9 and Mini-DIN interfaces before controller communication testing. Route the cable separately from motor power conductors, high-current switching lines, and sources of electromagnetic interference.
Maintain the cable shield connection according to the control cabinet grounding design. Avoid excessive bending, mechanical pulling force, and installation locations exposed to abrasion or environmental damage.
Verify RS-232 communication settings, controller port configuration, and programming software communication parameters before downloading or monitoring controller applications.
