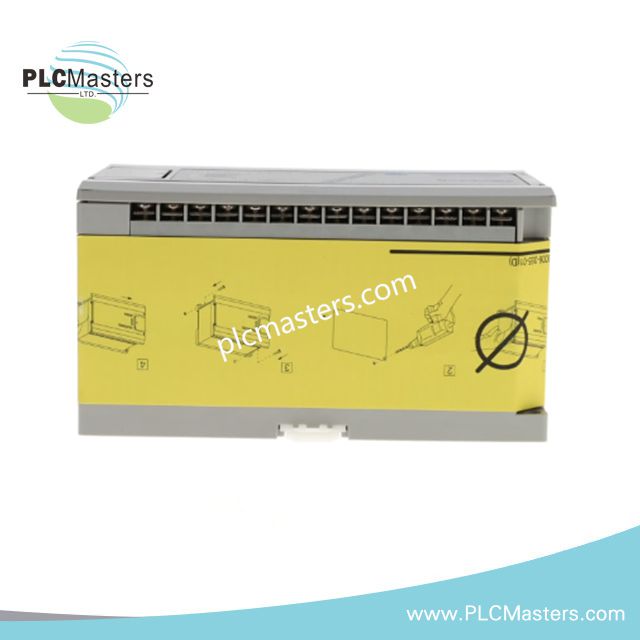

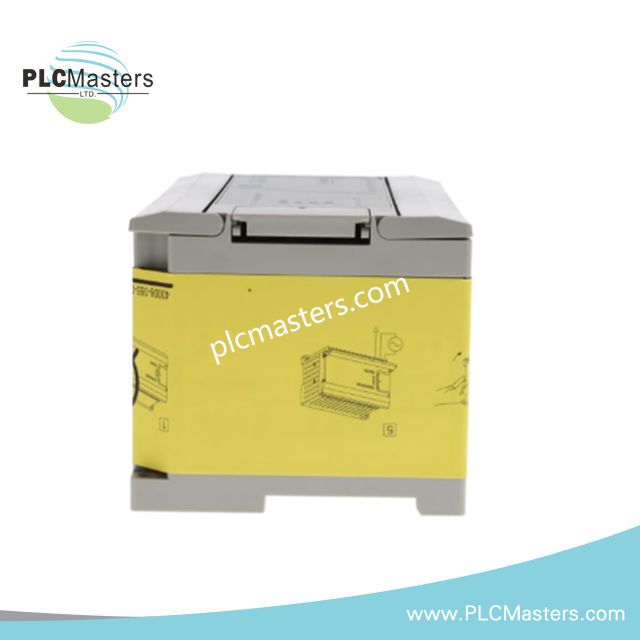

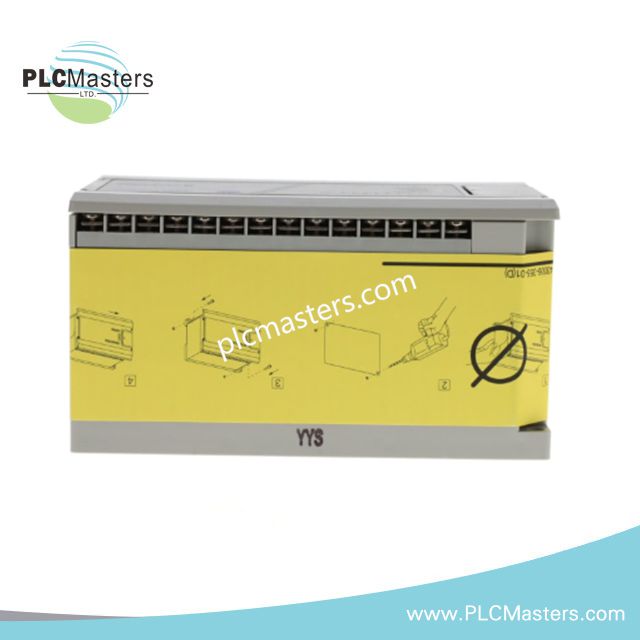

Allen-Bradley 1761-L16AWA MicroLogix 1000 Controller Module
$123.00
$320.00
Description
Allen-Bradley 1761-L16AWA MicroLogix 1000 Controller Module
The Allen-Bradley 1761-L16AWA, also cataloged as the 1761-L16AWA Programmable Logic Controller, operates as a dedicated hardware component for discrete I/O execution and RS-232 control communication within MicroLogix 1000 automation systems. The controller integrates AC input processing, relay output switching, EEPROM program storage, and DF1 serial communication functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1761-L16AWA |
| Brand | Allen-Bradley |
| Origin | USA |
| Product Type | Programmable Logic Controller (PLC) |
| Product Line | MicroLogix 1000 |
| I/O Configuration | 16 sinking discrete inputs and 6 relay outputs |
| Input Type | 120 VAC |
| Output Type | Relay contact outputs |
| Memory | 1 K EEPROM (approximately 737 instruction words and 437 data words) |
| Communication Interface | RS-232 |
| Communication Protocol | DF1 |
| Power Supply | 120/240 VAC |
| Operating Frequency | 47-63 Hz |
| Weight | 0.40 kg |
| Dimensions | 5.24 x 2.87 x 3.15 inches |
| Operating Temp | Not specified in provided data |
| Power Consumption | 7 W |
| Shock Resistance | 10 G operating, 20 G non-operating |
EtherNet/IP and MicroLogix Control Architecture
The 1761-L16AWA controller provides integrated PLC execution functions with discrete I/O density scaling through 16 input channels and 6 relay output channels. The controller communicates through an RS-232 port using DF1 protocol for programming, monitoring, and data exchange operations.
The MicroLogix 1000 platform uses compact PLC architecture with integrated memory and fixed I/O configuration. Firmware flash compatibility and programming software version matching must be verified when maintaining existing installations or transferring controller applications.
The controller supports industrial control tasks through local I/O processing without requiring additional I/O modules. Relay output circuits provide direct switching interfaces for connected field devices within the controller electrical ratings.
Frequently Asked Questions
Q: What type of memory is installed in the 1761-L16AWA controller?
A: The controller contains 1 K EEPROM memory, providing storage for approximately 737 instruction words and 437 data words.
Q: Which communication interface is available on the 1761-L16AWA?
A: The controller includes an integrated RS-232 communication port supporting DF1 protocol communication.
Q: What are the discrete I/O capabilities of this controller?
A: The 1761-L16AWA provides 16 sinking discrete inputs and 6 relay outputs in a fixed I/O configuration.
Field Installation Guidelines
Install the controller on a suitable control panel surface with sufficient clearance for wiring access and heat dissipation. Connect AC power wiring according to the controller electrical specifications and verify protective grounding practices.
Separate RS-232 communication wiring from high-voltage power conductors and motor switching circuits to reduce electromagnetic interference. Use proper cable routing and shielding methods for serial communication connections.
Verify input voltage type, relay output wiring, and I/O addressing before controller startup. Confirm the application program and communication parameters match the installed MicroLogix controller configuration.
