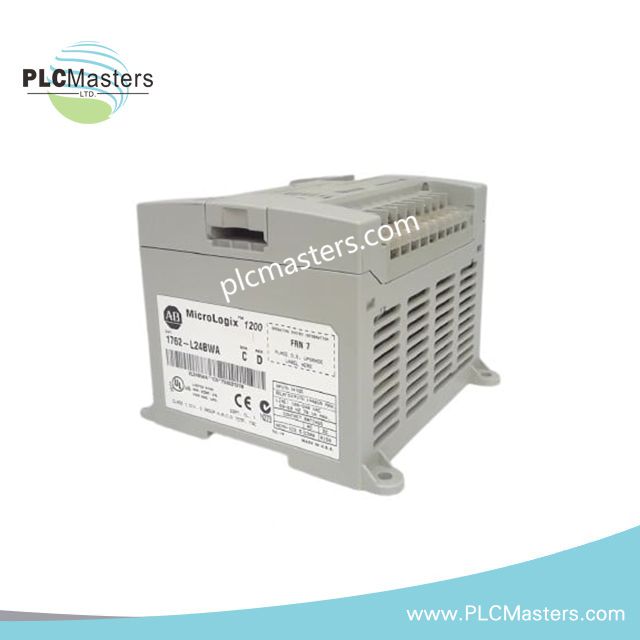

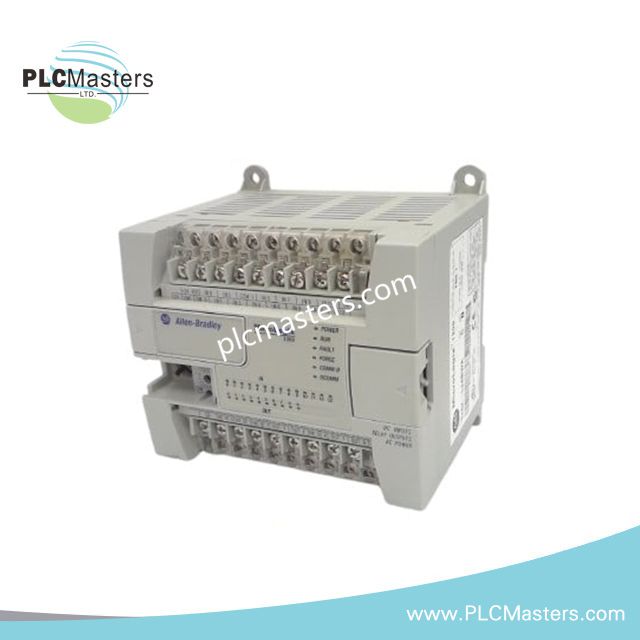

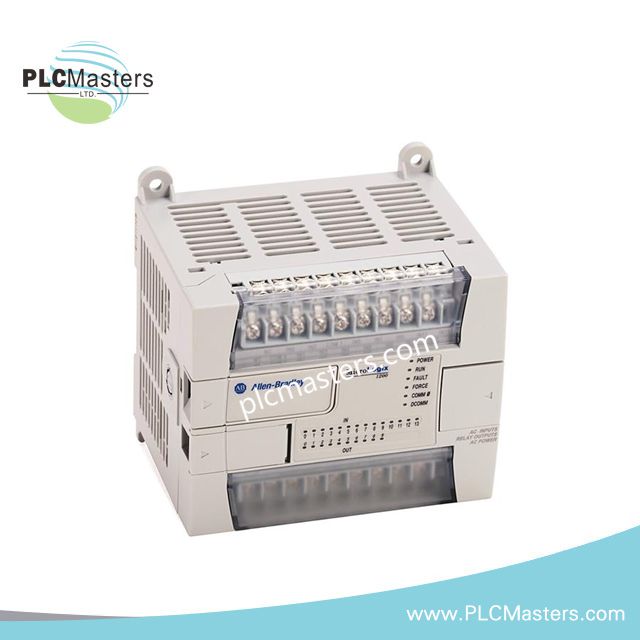

Allen-Bradley 1762-L24BWA MicroLogix 1200 PLC Module
$123.00
$320.00
Description
Overview
The Allen-Bradley 1762-L24BWA is a compact programmable logic controller (PLC) from the MicroLogix 1200 family, designed for small and mid-sized machine automation tasks requiring integrated digital I/O and reliable relay-based output control.
Powered by a 120/240 VAC supply, this controller combines standard and high-speed digital inputs with relay outputs in a compact DIN rail-mount housing. Its architecture supports flexible machine control, discrete process management, and standalone automation applications where dependable operation and simplified installation are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1762-L24BWA |
| Product Series | MicroLogix 1200 |
| Product Type | Programmable Logic Controller |
| Controller Type | Compact PLC |
| Total I/O Points | 24 Points |
| Digital Inputs | 14 Inputs Total |
| Standard Inputs | 10 x 24 VDC Inputs |
| Fast Inputs | 4 x High-Speed 24 VDC Inputs |
| Output Channels | 10 Relay Outputs |
| Power Supply Voltage | 120/240 VAC |
| Input Voltage Rating | 24 VDC |
| Input Impedance | 3.3 kΩ (Inputs 0–3), 2.7 kΩ (Inputs 4–13) |
| Input OFF-State Voltage | 0 to 5 VDC |
| Input ON-State Voltage | 14 to 26.4 VDC (Inputs 0–3) |
| Input ON-State Voltage Range | 10 to 26.4 VDC (Inputs 4–13) |
| OFF-State Leakage Current | 1.5 mA |
| Output Type | Relay |
| Mounting Method | DIN Rail Mount |
| Terminal Type | Screw Terminal |
| Status Indication | Integrated LED Indicators |
| Weight | 0.99 lbs |
Integrated I/O Configuration
The 1762-L24BWA controller includes a mixed I/O arrangement suitable for machine sequencing, conveyor systems, packaging equipment, and OEM automation panels.
| I/O Type | Quantity |
|---|---|
| Standard Digital Inputs | 10 |
| High-Speed Digital Inputs | 4 |
| Relay Outputs | 10 |
Key Functional Characteristics
-
Compact integrated PLC with built-in digital I/O
-
High-speed input capability for pulse and encoder applications
-
Relay outputs suitable for mixed voltage load control
-
AC-powered platform for industrial cabinet installations
-
DIN rail mounting simplifies panel integration
-
Front-panel LED diagnostics for input, output, and controller status
-
Screw terminal wiring for secure field connections
Typical Applications
The 1762-L24BWA is commonly used in:
-
Packaging machinery
-
Conveyor automation
-
Material handling systems
-
Small process control systems
-
Pump and motor control
-
OEM equipment panels
-
Standalone industrial machines
FAQ
Does the 1762-L24BWA support high-speed input functions?
Yes. The controller includes four fast 24 VDC inputs designed for applications requiring rapid signal processing.
What type of outputs are included?
This model uses relay outputs, allowing control of various AC and DC field devices within rated specifications.
How is the controller mounted?
The unit is designed for DIN rail installation inside industrial control cabinets.
