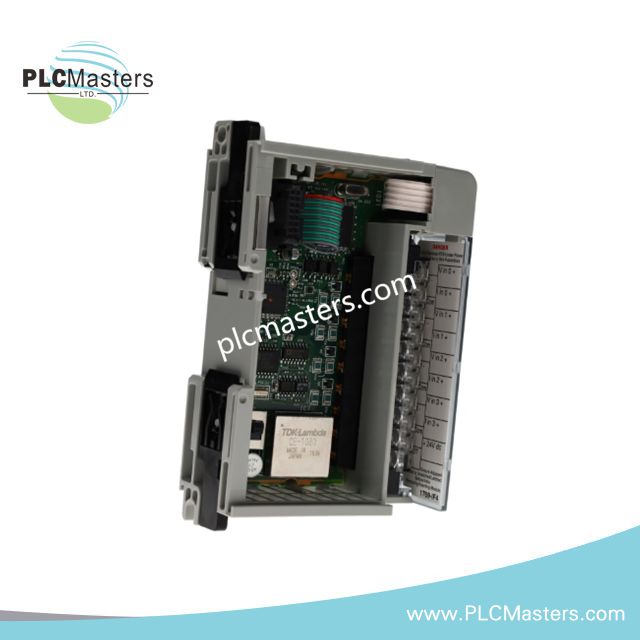

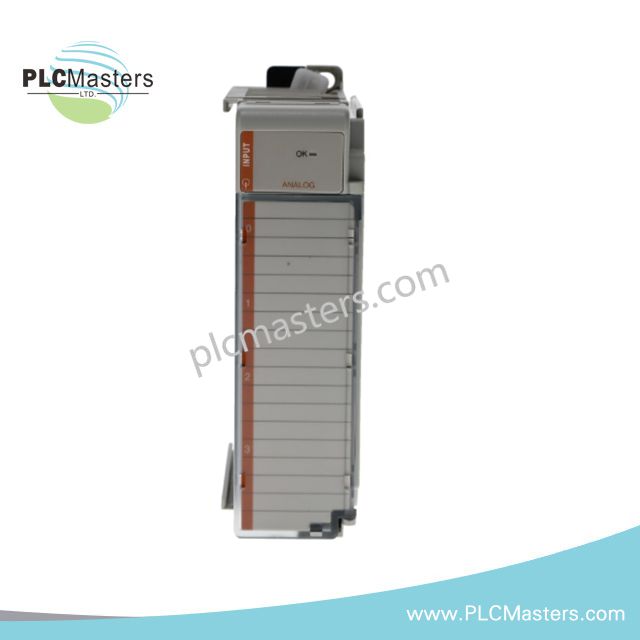

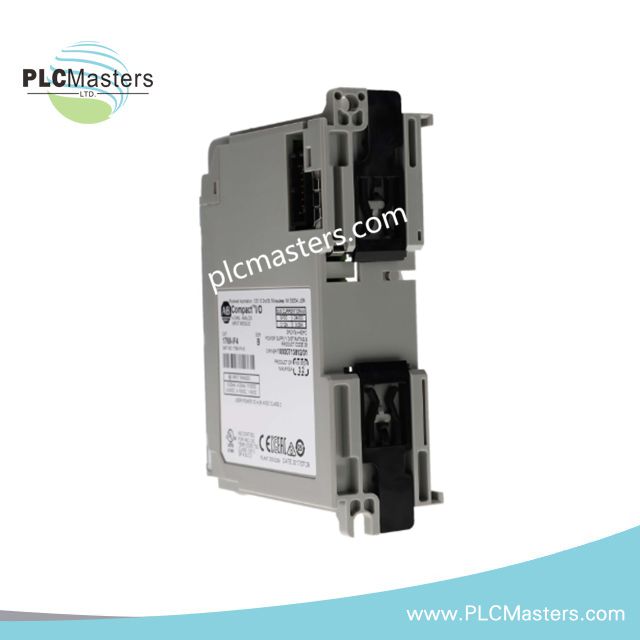

Allen-Bradley 1769-IF4 CompactLogix Analog Input Module
$123.00
$320.00
Description
Product Description
The 1769-IF4 by Rockwell Automation Allen-Bradley is a CompactLogix™ series analog input module engineered for high-accuracy industrial signal monitoring. Designed for distributed I/O architectures, this module supports four configurable analog input channels that can operate in either differential or single-ended mode, allowing flexible integration with sensors, transmitters, and process instrumentation.
The Allen-Bradley 1769-IF4 module accepts both current and voltage analog signals, making it suitable for process control, manufacturing automation, machine monitoring, and utility applications requiring reliable analog data acquisition within CompactLogix and MicroLogix systems.
Built with rack-mounted architecture and screw-type terminal connections, the module provides stable signal conditioning, high noise immunity, and precise 14-bit analog conversion performance for industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | CompactLogix |
| Product Type | Analog Input Module |
| Model Number | 1769-IF4 |
| Input Channels | 4 Analog Inputs |
| Input Configuration | Differential or Single-Ended |
| Supported Signal Ranges | 0–20 mA, 4–20 mA |
| Input Type | Voltage / Current Analog Input |
| Resolution | 14-Bit Unipolar / 14-Bit + Sign Bipolar |
| Rated Supply Voltage | 24 VDC |
| Maximum Working Voltage | 30V AC / 30V DC |
| Bus Current Draw @ 5V DC | 120 mA |
| Bus Current Draw @ 24V DC | 60 mA |
| Heat Dissipation | 2.63 W |
| Voltage Input Impedance | 220 kΩ Typical |
| Current Input Impedance | 250 Ω |
| Terminal Type | Screw Connection |
| Mounting Method | Rack Mount |
| Operating Temperature | 0°C to 60°C |
| Module Weight | 0.44 lbs |
| Product Family | CompactLogix I/O |
Key Features
-
Four independently configurable analog input channels
-
Supports differential and single-ended wiring modes
-
Compatible with CompactLogix distributed I/O systems
-
High-resolution 14-bit analog conversion
-
Current and voltage signal compatibility
-
Compact rack-mounted industrial design
-
Screw terminal connections for secure field wiring
-
Stable operation in industrial temperature environments
-
Low power consumption with efficient bus current utilization
Application Areas
The 1769-IF4 analog module is commonly deployed in:
-
Process automation systems
-
PLC-based manufacturing lines
-
Water and wastewater treatment equipment
-
Industrial instrumentation monitoring
-
Packaging and conveyor systems
-
Chemical process control
-
Energy management systems
-
OEM machinery integration
Compatibility Information
The module is designed for use with CompactLogix and selected MicroLogix expansion systems from Rockwell Automation Allen-Bradley. It integrates directly into 1769 Compact I/O assemblies and communicates through the CompactLogix backplane architecture.
FAQ
What signal types does the 1769-IF4 support?
The module supports analog current and voltage input signals, including standard industrial ranges such as 0–20 mA and 4–20 mA.
Can the channels be individually configured?
Yes. Each input channel can be configured independently for differential or single-ended operation depending on application requirements.
Is the 1769-IF4 suitable for harsh industrial environments?
Yes. The module is designed for industrial automation environments and operates reliably within a temperature range of 0°C to 60°C.
