Allen-Bradley 1769-IQ6XOW4 Compact I/O Digital Combo Module
$123.00
$320.00
Description

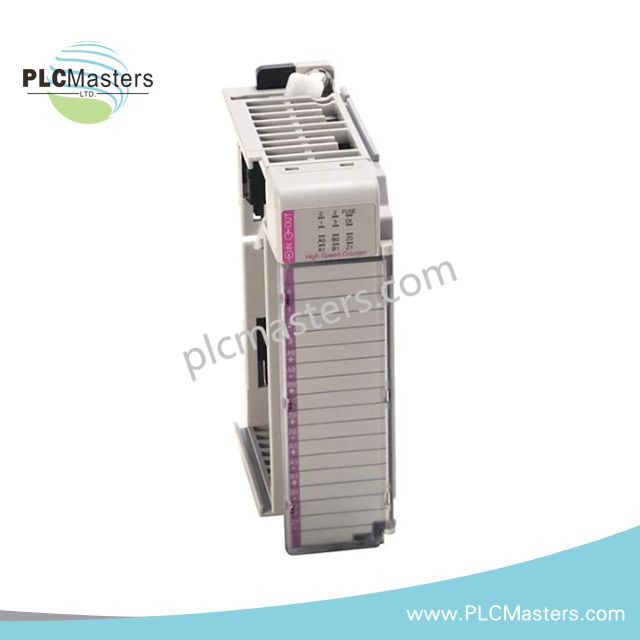

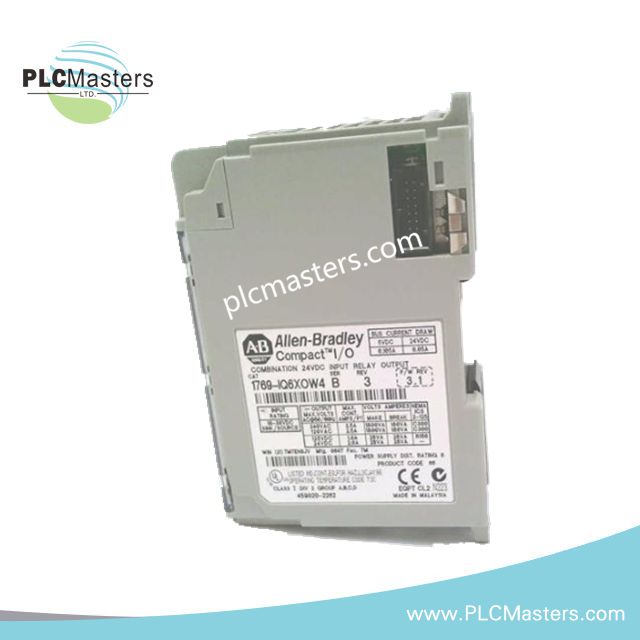

Allen-Bradley 1769-IQ6XOW4 Compact I/O Digital Combo Module
The Allen-Bradley 1769-IQ6XOW4/A serves as the primary 1769-IQ6XOW4 Digital Combo Module utilized to execute mixed DC input acquisition and relay output switching across CompactLogix platforms. The module integrates 6 sink/source 24 VDC inputs and 4 isolated relay outputs within a single Compact I/O assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-IQ6XOW4/A |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.40 lbs |
| Power Consumption | Not specified in supplied data |
| Product Type | Digital Combo Modules |
| Series | CompactLogix 1769 Compact I/O |
| Input Type | Digital DC Input |
| Output Type | Relay Digital Output |
| Input Channels | 6 sink/source DC inputs |
| Input Voltage Range | 10-30 VDC |
| Output Channels | 4 isolated normally open relay contacts |
| Relay Contact Rating | 2.5 A at 5-265 VAC / 5-125 VDC |
| Voltage Rating | 24 VDC sink/source input |
| Replacement Terminal Block | 1769-RTBN18 |
| Wiring Type | Copper, 90 deg C |
| Wire Size | 22-14 AWG solid |
EtherNet/IP and I/O Signal Processing Characteristics
The 1769-IQ6XOW4/A operates as a mixed signal Compact I/O module by combining discrete DC input monitoring and relay output control within one backplane device. The module supports I/O density scaling in CompactLogix systems by reducing separate input and output module requirements.
The module architecture supports deterministic PLC backplane communication and firmware flash compatibility within supported CompactLogix configurations. Relay output isolation provides electrical separation between output contact circuits and the controller communication structure.
Frequently Asked Questions
Q: What signal types are supported by the 1769-IQ6XOW4/A?
A: The module supports 6 sink/source 24 VDC digital inputs and 4 isolated normally open relay outputs.
Q: What is the relay output contact rating of the module?
A: Each relay output contact is rated for 2.5 A at 5-265 VAC or 5-125 VDC.
Q: What terminal block is used with the module?
A: The replacement terminal block is the 1769-RTBN18 terminal block.
Field Installation Guidelines
Install the 1769-IQ6XOW4/A module within the CompactLogix I/O assembly according to the controller installation requirements. Maintain the recommended module position relative to the power supply and provide sufficient enclosure ventilation for normal operation.
Use copper field wiring within the specified 22-14 AWG range. Separate relay output wiring from low-level DC input signal wiring where possible to reduce electrical coupling. Verify terminal block seating, polarity, and field device connections before energizing the system.
Configure input and output addresses within the controller software before commissioning. Confirm relay contact operation and DC input status through controller diagnostics during startup.
