Allen-Bradley 1769-L33ER CompactLogix Controller Module
$123.00
$320.00
Description

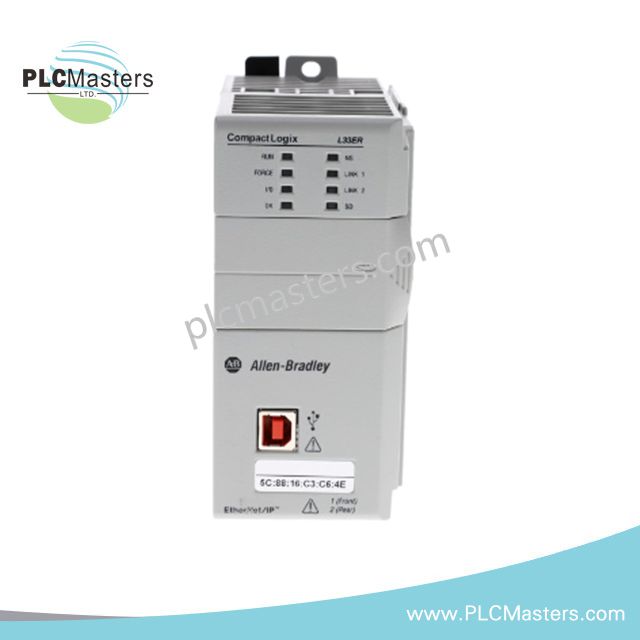

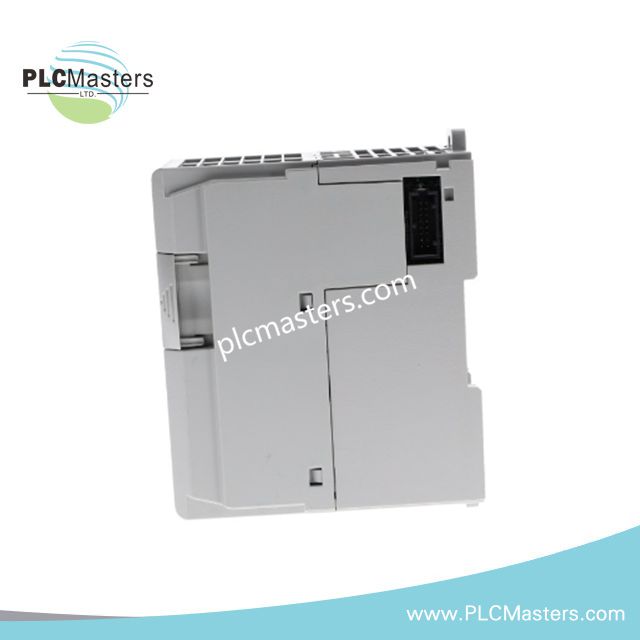

Allen-Bradley 1769-L33ER CompactLogix Controller Module
Configured for programmable logic execution and Ethernet/IP communication in CompactLogix L3 platforms, the Allen-Bradley 1769-L33ER (1769-L33ER CompactLogix Controller Module) provides direct processor control, modular I/O coordination, and industrial network communication functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-L33ER |
| Brand | Allen-Bradley |
| Origin | United States |
| Weight | 0.73 lbs |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 24 VDC power supply input |
| Controller Type | CompactLogix L3 Programmable Automation Controller |
| Product Family | CompactLogix L3 |
| User Memory | 2 MB |
| Local Module Capacity | Up to 16 local 1769 modules |
| Supported Banks | 2 banks |
| Communication Ports | 1 x USB, 1 x Ethernet |
| Network Protocol | EtherNet/IP |
| Memory Card Support | 1 GB Secure Digital memory card |
| Task Capacity | 32 tasks |
| Programs per Task | Up to 100 programs |
| Mounting Method | DIN rail and panel mounting |
| Embedded I/O | No |
| Vibration Rating | Operating: 10 to 500 Hz, 0.030 in peak-to-peak |
EtherNet/IP and CompactLogix Control Features
The 1769-L33ER controller uses EtherNet/IP deterministic network communication for controller programming, device communication, and industrial data exchange. The Ethernet interface supports integration with CompactLogix distributed control architectures.
The CompactLogix backplane communication structure manages local module data transfer and supports I/O density scaling through modular 1769 expansion. The controller supports up to 16 local modules across two banks for system configuration flexibility.
Firmware flash compatibility and Secure Digital memory card support provide options for controller program storage and maintenance operations. The USB interface provides a direct programming connection for supported engineering tools.
Frequently Asked Questions
Q: Does the 1769-L33ER include embedded local I/O channels?
A: No. The controller does not contain embedded I/O. Field signals are handled through connected 1769 Compact I/O modules.
Q: How many local expansion modules can be connected to the controller?
A: The controller supports up to 16 local 1769 modules distributed across two supported banks.
Q: What communication interfaces are available on the controller?
A: The controller provides one USB port and one Ethernet port supporting EtherNet/IP communication.

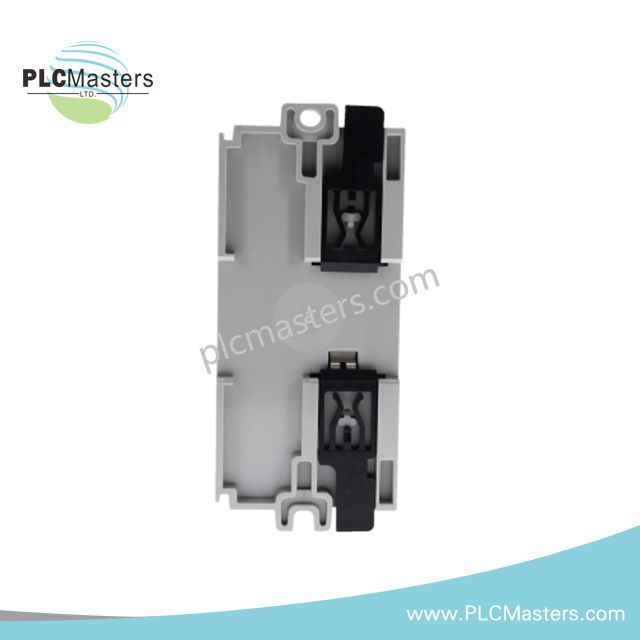

Field Installation Guidelines
Install the controller on a properly grounded DIN rail or panel mounting surface inside an industrial enclosure. Verify that the 24 VDC power supply wiring follows standard control cabinet grounding practices.
Route Ethernet communication cables separately from high-voltage conductors, motor wiring, and switching power sources to reduce electromagnetic interference. Use shielded cables where required by the installation environment and connect shields according to site grounding requirements.
Before connecting or removing modules, remove system power and confirm that all connectors and mounting hardware are properly secured. Maintain adequate access for SD card installation, USB connection, and Ethernet cable service.
