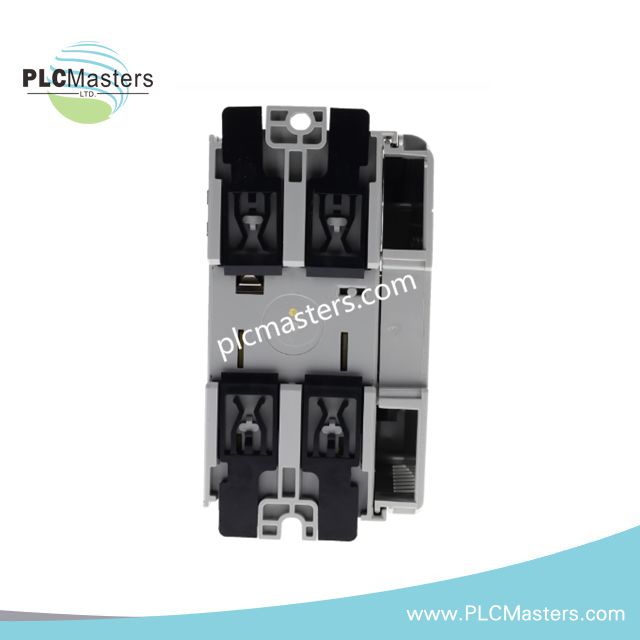

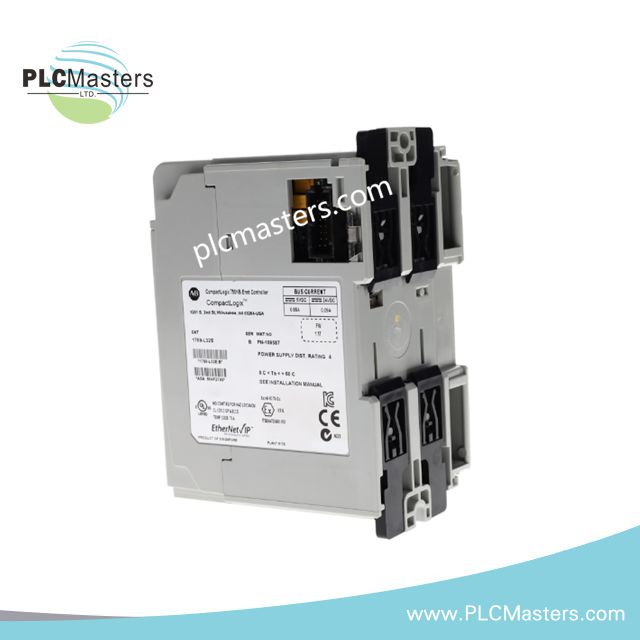

Allen-Bradley 1769-L35E CompactLogix Ethernet Controller Module
$123.00
$320.00
Description
Overview
The 1769-L35E from Rockwell Automation Allen-Bradley is a CompactLogix Ethernet-enabled programmable controller designed for scalable machine control and distributed automation systems. It integrates processing, communication, and expansion capability into a compact, rack-based architecture suitable for mid-range industrial applications.
With increased memory capacity and expanded I/O handling capability, this controller supports more complex control strategies while maintaining high-speed Ethernet communication and legacy serial connectivity for hybrid system integration.
Key Features
-
Integrated CompactLogix controller with embedded Ethernet/IP interface
-
1.5 MB user memory for application logic and data handling
-
Supports up to 30 local I/O modules
-
Expansion capability for up to 3 I/O banks
-
Dual communication ports: Ethernet and RS-232 serial
-
Compatible with CompactFlash memory expansion (1784-CF128)
-
DIN rail or panel mounting options
-
Open-style modular housing for control cabinet integration
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | CompactLogix |
| Model Number | 1769-L35E |
| Product Type | Ethernet Programmable Controller |
| User Memory | 1.5 MB |
| Communication Ports | 1 × Ethernet/IP, 1 × RS-232 |
| Maximum I/O Modules | 30 |
| Maximum I/O Banks | 3 |
| CompactFlash Compatibility | 1784-CF128 |
| Current Draw @ 5V DC | 660 mA |
| Current Draw @ 24V DC | 90 mA |
| Power Dissipation | 5.5 W |
| Isolation Voltage | 30 V continuous |
| Mounting Type | DIN Rail / Panel Mount |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C |
| Weight | 0.71 lbs |
System Functionality
The 1769-L35E is engineered to support higher-capacity control applications where increased memory and expanded I/O are required. Ethernet connectivity enables integration with supervisory systems, SCADA networks, and distributed I/O architectures, while RS-232 provides compatibility with legacy field devices.
Its modular design allows system expansion without redesigning the controller platform, making it suitable for scalable automation environments.
Typical Applications
-
Mid-size manufacturing automation systems
-
Packaging and assembly machinery
-
Material handling and conveyor systems
-
Process support and auxiliary control systems
-
Distributed machine control networks
-
Industrial system upgrades and retrofits
FAQ
What is the memory capacity of the 1769-L35E?
The controller provides 1.5 MB of user memory for program execution and data handling.
How many I/O modules can be connected?
It supports up to 30 CompactLogix I/O modules across 3 I/O banks.
What communication interfaces are included?
The unit includes one Ethernet/IP port and one RS-232 serial port.
Can it support CompactFlash storage?
Yes, it is compatible with the 1784-CF128 CompactFlash module.
