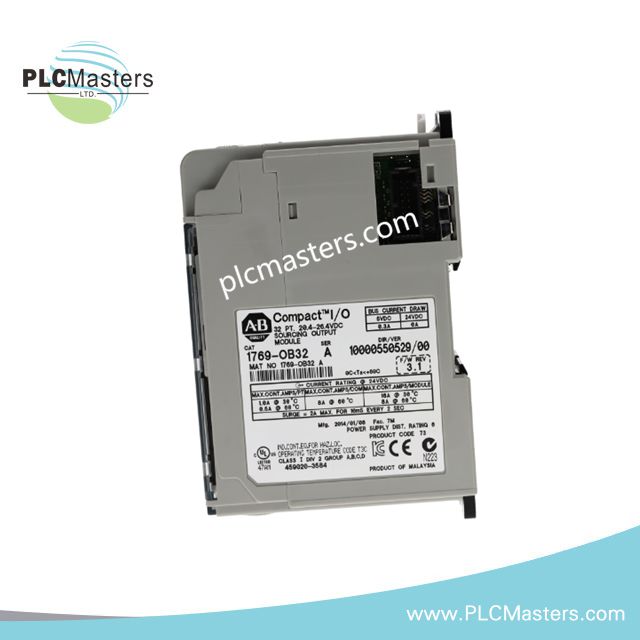

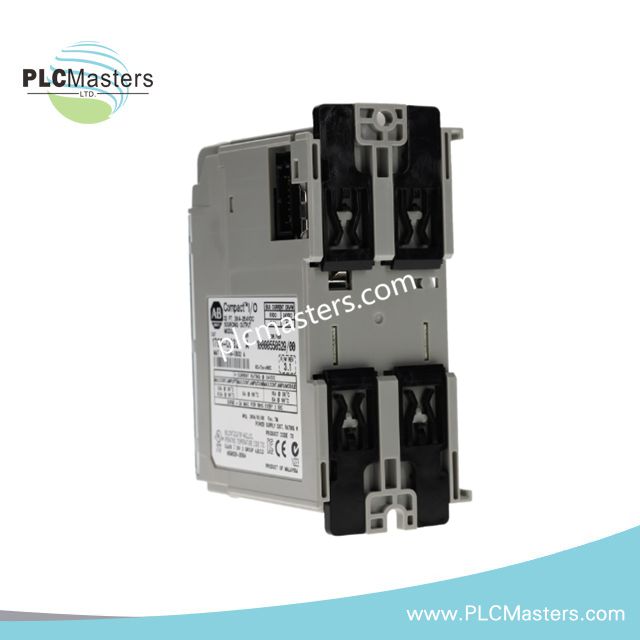

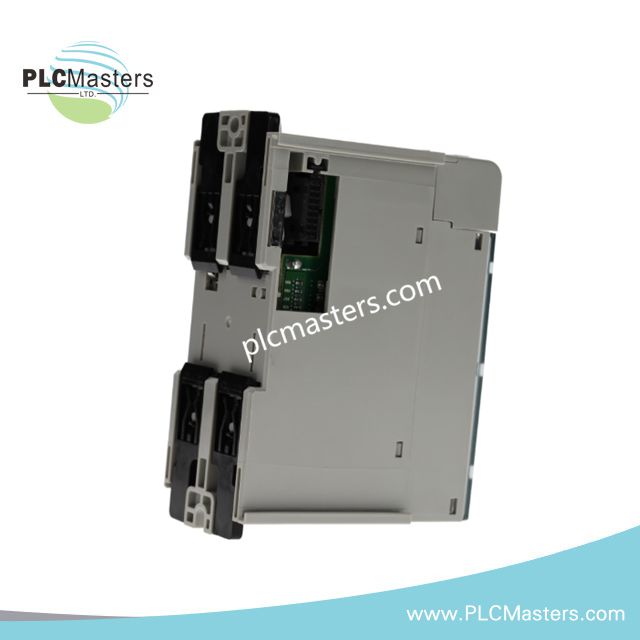

Allen-Bradley 1769-OB32 CompactLogix Output Module
$123.00
$320.00
Description
Product Description
The 1769-OB32 from Rockwell Automation under the Allen-Bradley CompactLogix family is a 32-channel DC digital output module designed for high-density industrial control applications. The module provides solid-state transistor outputs for controlling field devices such as relays, solenoids, indicator lamps, and DC actuators.
This Compact I/O module features two isolated output groups with 16 outputs per group and operates on a nominal 24 VDC power system. Its compact form factor supports both DIN rail and panel mounting, making it suitable for space-constrained automation cabinets and distributed I/O architectures.
The 1769-OB32 is commonly deployed in CompactLogix and MicroLogix 1500 control systems requiring fast switching performance and reliable transistor-based output control.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model Number | 1769-OB32 |
| Product Series | CompactLogix / 1769 Compact I/O |
| Product Type | Digital DC Output Module |
| Output Channels | 32 Outputs |
| Output Configuration | 2 Groups of 16 Outputs |
| Output Type | Solid-State Transistor |
| Signal Type | DC Digital Output |
| Nominal Voltage | 24 VDC |
| Operating Voltage Range | 20.4 to 26.4 VDC |
| Minimum On-State Current | 1 mA |
| On-State Delay | 0.1 ms |
| Off-State Delay | 1 ms |
| Backplane Current Draw | 300 mA at 5.1 V |
| Maximum Heat Dissipation | 4.5 W |
| Isolation Groups | 2 |
| Mounting Options | DIN Rail or Panel Mount |
| Module Width | 1.5 Slots |
| Maximum Operating Temperature | 60°C |
| Weight | 0.88 lbs |
Key Functional Features
The 1769-OB32 module provides:
-
High-density 32-point DC output capability
-
Fast transistor switching response
-
Compact installation footprint
-
Reliable solid-state output operation
-
Compatibility with CompactLogix architectures
-
Flexible mounting options for industrial panels
Compatible Systems
The module is typically used with:
-
CompactLogix controllers
-
1769 Compact I/O assemblies
-
MicroLogix 1500 distributed I/O systems
-
OEM machine automation platforms
-
Packaging and material handling systems
Application Areas
Common industrial applications include:
-
Conveyor and transport systems
-
Automated assembly equipment
-
Process control machinery
-
Packaging line automation
-
Motor starter signaling
-
Industrial relay and solenoid control
FAQ
What type of outputs does the 1769-OB32 provide?
The 1769-OB32 uses solid-state transistor outputs designed for 24 VDC field devices.
How are the outputs organized?
The module contains 32 outputs divided into two independent groups of 16 channels each.
Can the module be mounted on DIN rail systems?
Yes. The module supports both DIN rail mounting and direct panel installation.
Is the 1769-OB32 compatible with CompactLogix controllers?
Yes. It is specifically engineered for CompactLogix and 1769 Compact I/O platforms.
