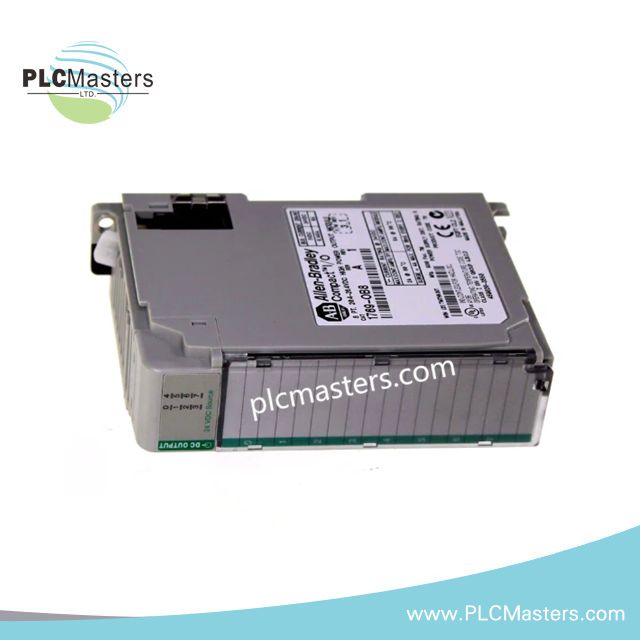

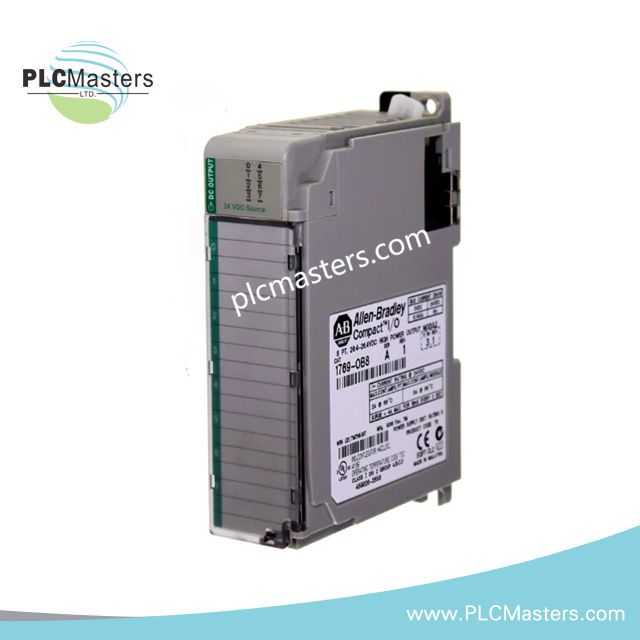

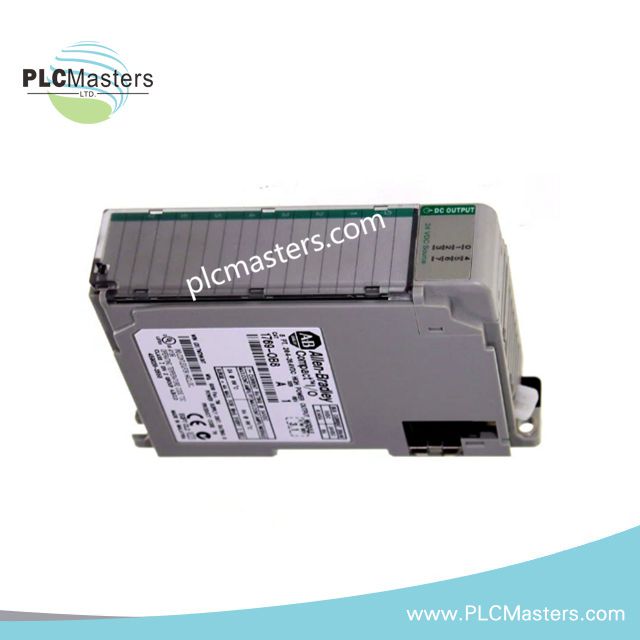

Allen-Bradley 1769-OB8 CompactLogix DC Output Module
$123.00
$320.00
Description
Product Description
The 1769-OB8 by Rockwell Automation / Allen-Bradley is an 8-channel CompactLogix digital DC output module designed for high-current sourcing applications in distributed and compact PLC architectures. This module belongs to the Compact I/O family and is engineered for reliable switching of 24V DC field devices including relays, solenoids, indicator lamps, and industrial actuators.
The 1769-OB8 module supports CompactLogix and MicroLogix 1500 systems with flexible installation using either DIN rail or panel mounting methods. Its compact form factor allows efficient cabinet integration while maintaining dependable output performance in industrial automation environments.
Designed with removable terminal blocks and replaceable front components, the module simplifies maintenance and minimizes downtime during servicing or field replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | CompactLogix / Compact I/O |
| Part Number | 1769-OB8 |
| Module Type | Digital DC Output Module |
| Output Channels | 8 Outputs |
| Output Configuration | Sourcing Outputs |
| Rated Output Voltage | 24V DC |
| Output Category | High-Current DC Output |
| Backplane Current Draw | Approx. 220 mA at 5.1V DC |
| Isolation Voltage | 30V Continuous |
| Mounting Options | DIN Rail or Panel Mount |
| Wiring Size | 22…16 AWG Stranded Copper |
| Removable Terminal Block | 1769-RTBN18 |
| Replacement Door | 1769-RD |
| Compatible Controllers | CompactLogix, MicroLogix 1500 |
| Series Compatibility | Series A and B |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 0.56 lb |
Key Features
-
8 isolated 24V DC sourcing outputs
-
High-current output capability for industrial loads
-
Compact I/O architecture for space-saving installations
-
Supports hot maintenance of removable terminal block
-
Replaceable front door and labeling components
-
Electronic protection and diagnostic support
-
Compatible with CompactLogix distributed I/O systems
-
Flexible DIN rail and direct panel mounting
Applications
The 1769-OB8 output module is commonly used in:
-
Packaging machinery
-
Conveyor control systems
-
Industrial process automation
-
Material handling equipment
-
OEM control panels
-
Factory discrete output control
-
Motor starter and relay interfacing
Compatibility Information
The module integrates directly with CompactLogix processors and Compact I/O expansion systems. It is frequently deployed alongside:
-
1769-L3x CompactLogix Controllers
-
1769-IF4 Analog Input Modules
-
1769-IQ16 Digital Input Modules
-
1769-OW8 Relay Output Modules
FAQ
What type of outputs does the 1769-OB8 provide?
The module provides 8 sourcing-type 24V DC digital outputs intended for controlling DC field devices.
Can the terminal block be replaced separately?
Yes. The compatible removable terminal block replacement part is 1769-RTBN18.
Is the module suitable for DIN rail installation?
Yes. The module supports both standard DIN rail mounting and direct panel mounting.
Which PLC platforms support the 1769-OB8?
The module is compatible with CompactLogix controllers and selected MicroLogix 1500 systems using Compact I/O architecture.
