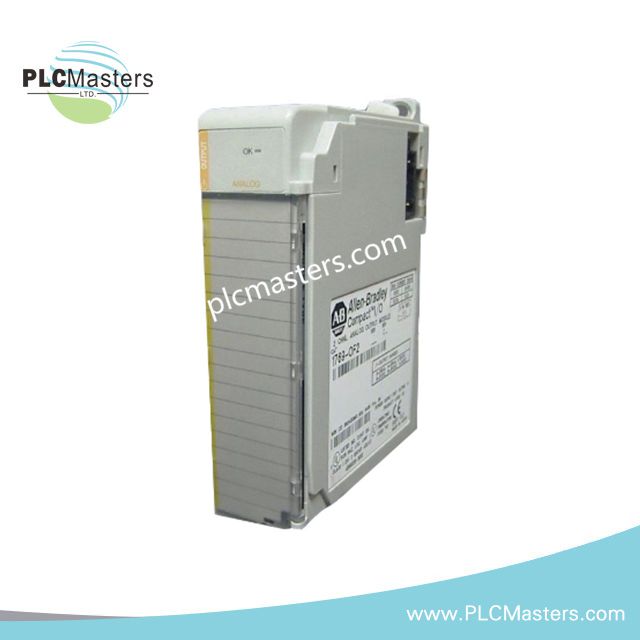

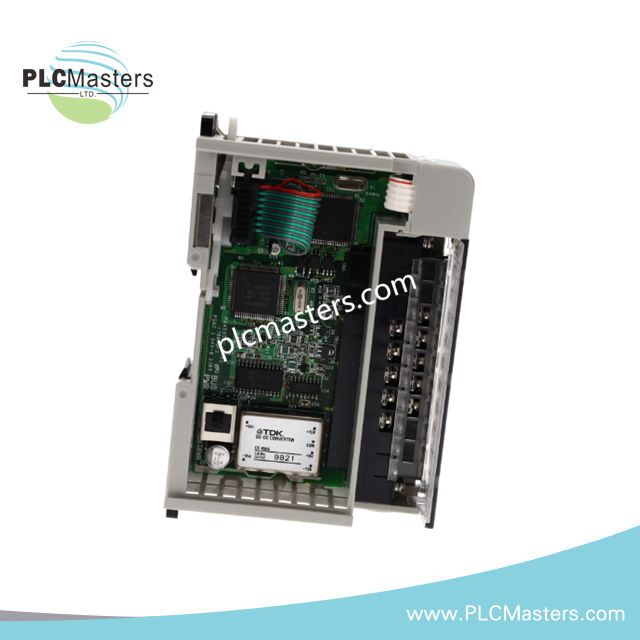

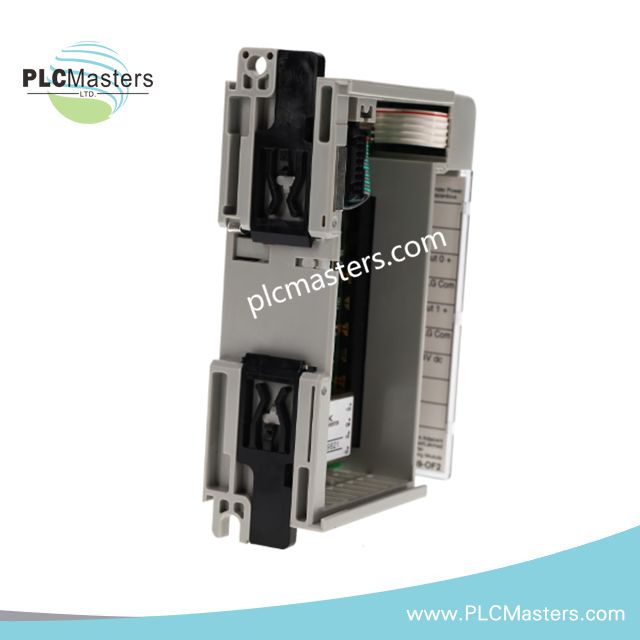

Allen-Bradley 1769-OF2 Analog Output Module CompactLogix
$123.00
$320.00
Description
Product Description
The 1769-OF2 is a compact analog output module developed by Allen-Bradley for use within the CompactLogix platform. It delivers two single-ended analog output channels capable of generating both voltage and current signals, making it suitable for precise control of actuators, drives, and process equipment.
This module utilizes a delta-sigma conversion architecture to achieve stable signal generation with high resolution. Designed for integration into Compact I/O racks, it offers flexible mounting, fast update rates, and built-in protection features to ensure reliable field operation.
The 1769-OF2 supports multiple output ranges, allowing it to adapt to a wide variety of industrial control requirements without additional signal conditioning hardware.
Key Features
-
Two independent analog output channels (single-ended)
-
Configurable voltage and current output ranges
-
High-resolution signal output with delta-sigma conversion
-
Fast update time for responsive control applications
-
Integrated diagnostic LED indicators
-
Protection against short circuit, overvoltage, and open circuit conditions
-
Compact mechanical design for dense I/O configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1769-OF2 |
| Product Type | Analog Output Module |
| Series | CompactLogix 1769 |
| Number of Outputs | 2 (single-ended) |
| Output Signal Type | Voltage / Current |
| Voltage Output Ranges | ±10 V, 0–10 V, 0–5 V, 1–5 V |
| Current Output Ranges | 0–20 mA, 4–20 mA |
| Resolution | 14-bit (unipolar), 14-bit + sign (bipolar) |
| Converter Technology | Delta-Sigma |
| Conversion Time | 2.5 ms (all channels) |
| Backplane Current | Approx. 120 mA @ 5.1 V DC |
| Power Consumption | Approx. 1.2 W @ 24 V DC |
| Heat Dissipation | Max. 2.63 W |
| Isolation Voltage | 500 V AC / 710 V DC (test), reinforced insulation |
| Working Voltage | 30 V AC / 30 V DC |
| Protection Features | Short-circuit, overvoltage, open-circuit protection |
| Mounting Options | DIN rail or panel mount |
| Module Width | 1 slot |
| Dimensions (H×W×D) | 118 × 35 × 87 mm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Compatible Power Supplies | 1769-PA2, PA4, PB2, PB4 |
| Power Supply Distance Rating | Up to 8 modules |
| Enclosure Type | Open-style (requires cabinet installation) |
Application Scenarios
The 1769-OF2 module is typically deployed in applications requiring precise analog signal output, such as variable frequency drive control, valve positioning, dosing systems, and process automation loops. It is well-suited for manufacturing lines, packaging systems, and hybrid discrete/process environments where CompactLogix controllers are used.
FAQ
What types of signals can the 1769-OF2 output?
It supports both voltage (±10 V, 0–10 V, etc.) and current (0–20 mA, 4–20 mA) signals, configurable per channel.
Is the module isolated?
The module provides reinforced isolation between the backplane and output group, but the output channels themselves are not individually isolated.
How fast is the output update rate?
All channels are updated within a maximum of 2.5 ms, suitable for most real-time control tasks.
Can it be used with MicroLogix systems?
No, the 1769-OF2 is designed specifically for CompactLogix and compatible Compact I/O platforms.
