Allen-Bradley 1769-SDN CompactLogix DeviceNet Module
$123.00
$320.00
Description
Product Description

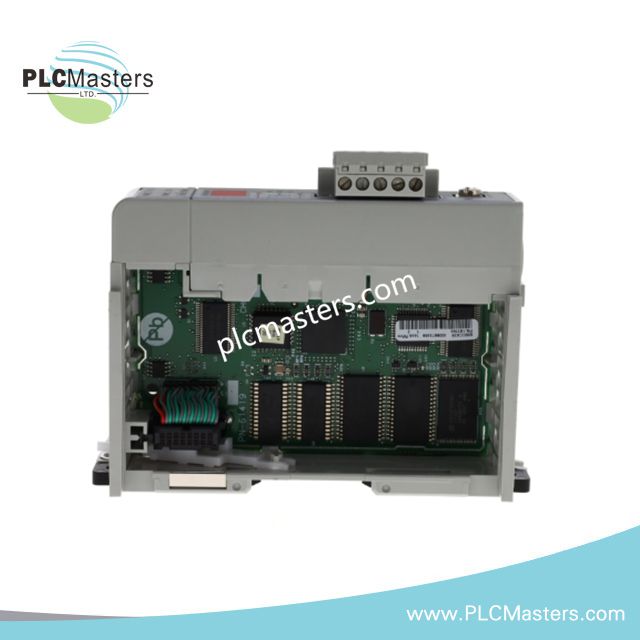

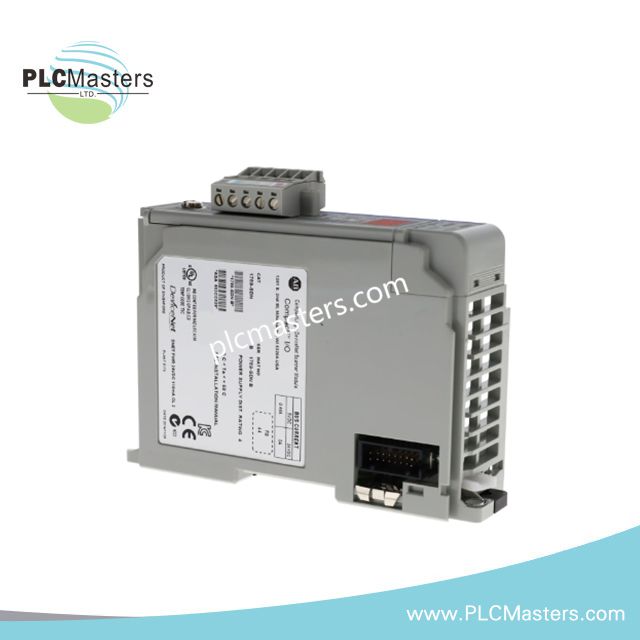

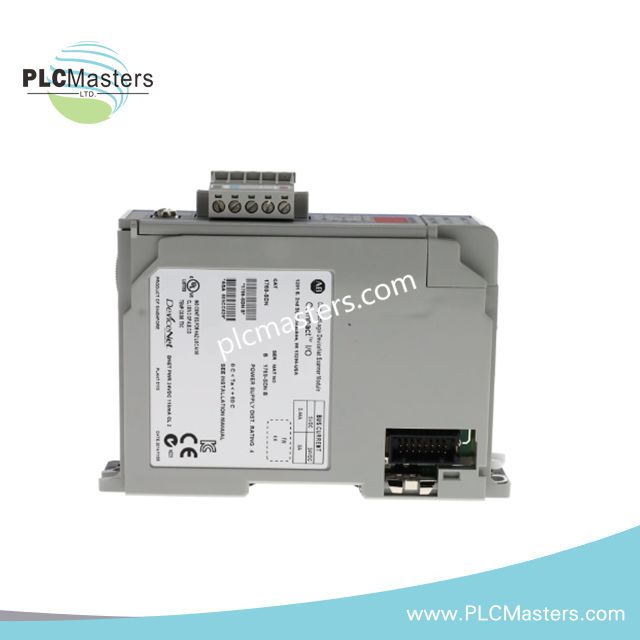

The 1769-SDN DeviceNet communication module from Allen-Bradley is a Compact I/O network interface module developed for CompactLogix and MicroLogix control platforms. Manufactured by Rockwell Automation, this module functions as a DeviceNet scanner, enabling communication between PLC controllers and distributed field devices across DeviceNet networks.
The 1769-SDN supports both master and slave node functionality, allowing integration with sensors, drives, remote I/O, operator interfaces, and other DeviceNet-compatible equipment. It also supports explicit messaging for diagnostics, configuration, and peer-level communication.
Designed for compact automation architectures, the module installs directly into CompactLogix local or distributed I/O assemblies and supports both DIN rail and panel-mounted control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Family | CompactLogix / Compact I/O |
| Part Number | 1769-SDN |
| Module Type | DeviceNet Scanner Communication Module |
| Communication Protocol | DeviceNet |
| Network Functions | Master and Slave Device Support |
| Explicit Messaging | Supported |
| Number of Channels | 1 DeviceNet Channel |
| Connector Type | 5-Pin Male Phoenix Connector |
| Maximum Communication Speed | 500 Kbps |
| Supported Nodes | Up to 64 DeviceNet Nodes |
| Power Dissipation | Approx. 4.7 W |
| Current Draw at 5.1V DC | Approx. 440 mA |
| Isolation Voltage | 30V Continuous |
| Slot Width | Single Slot |
| Mounting Options | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Status Indicators | Integrated LED Diagnostics |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Compatible Controllers | CompactLogix, MicroLogix 1500 |
| Maximum Power Supply Distance | 4 Modules |
| Weight | 0.35 lb |
Key Features
-
DeviceNet scanner interface for CompactLogix systems
-
Supports both scanner/master and slave device operation
-
Explicit messaging capability for diagnostics and configuration
-
Compatible with distributed DeviceNet field architectures
-
High-speed communication up to 500 Kbps
-
Supports up to 64 network nodes
-
Front-panel LED indicators for network and module diagnostics
-
Compact single-slot design for space-efficient installations
-
DIN rail and panel mounting flexibility
Typical Applications
The 1769-SDN communication module is commonly used in:
-
Distributed I/O systems
-
Packaging and conveying equipment
-
Motor control and drive integration
-
Machine automation networks
-
DeviceNet fieldbus communication systems
-
OEM machinery panels
-
Industrial sensor and actuator networks
Compatibility Information
The module is compatible with Compact I/O platforms and is frequently deployed with:
-
1769-L32E CompactLogix Controllers
-
1769-L35E CompactLogix Processors
-
PowerFlex AC Drives
-
DeviceNet Remote I/O Adapters
-
Compact I/O Digital and Analog Modules
FAQ
What is the primary function of the 1769-SDN module?
The module operates as a DeviceNet scanner interface, allowing CompactLogix controllers to exchange data with DeviceNet field devices.
Does the module support explicit messaging?
Yes. The 1769-SDN supports explicit messaging for configuration, diagnostics, and advanced device communication.
How many DeviceNet nodes can be connected?
The module supports communication with up to 64 DeviceNet nodes on a single network segment.
Can the module operate as both a master and a slave?
Yes. The module supports both master/scanner and slave device functionality depending on application requirements.
