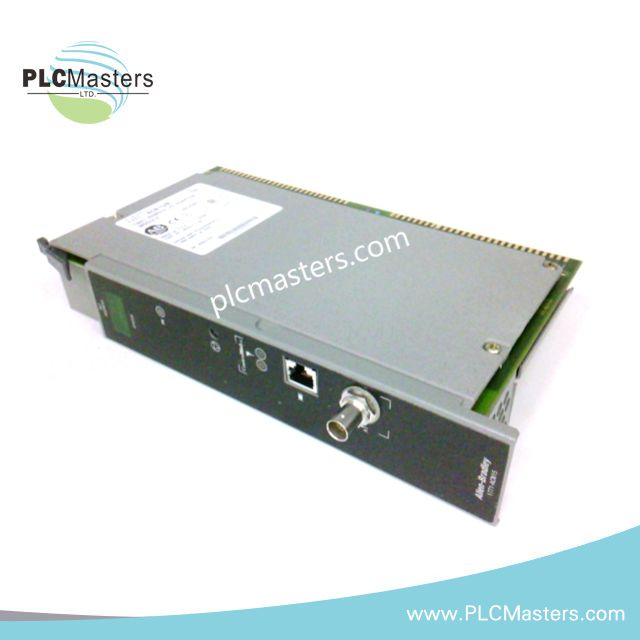

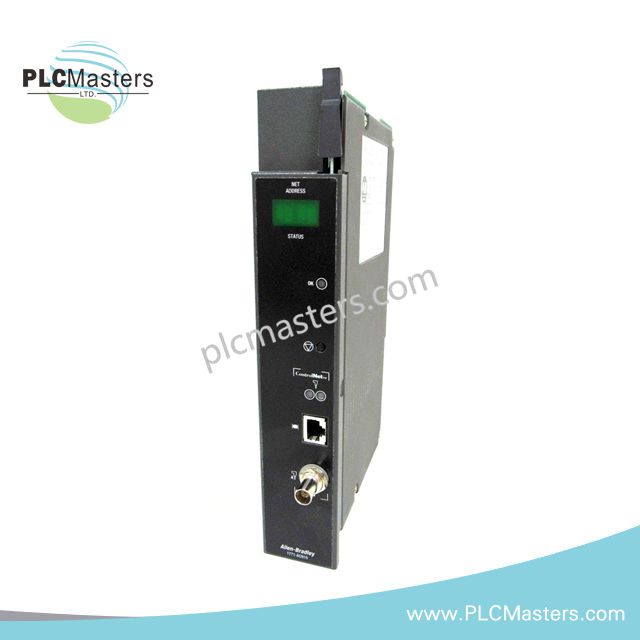

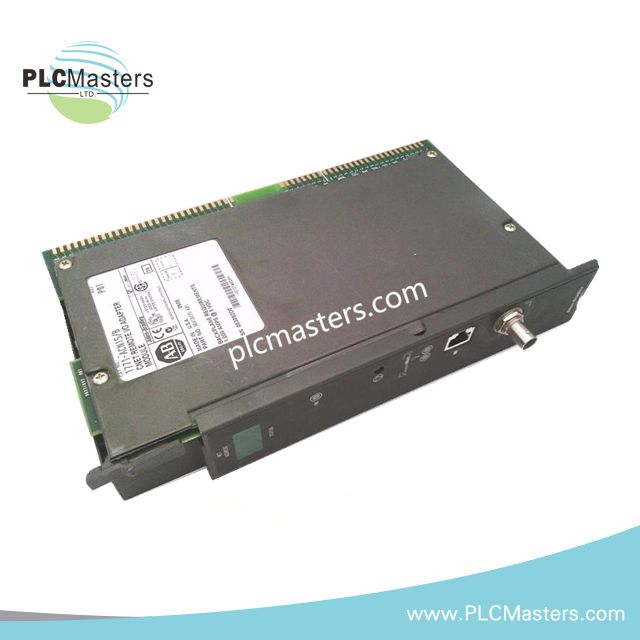

Allen-Bradley 1771-ACN15 PLC-5 ControlNet Adapter
$123.00
$320.00
Description
Product Description
The Allen-Bradley 1771-ACN15 is a single-port ControlNet communication adapter developed for PLC-5 and 1771 remote I/O systems. This module enables high-speed data exchange between distributed I/O racks and ControlNet-based controllers, providing deterministic communication for industrial automation applications.
Installed within a 1771 I/O chassis, the 1771-ACN15 functions as a remote I/O adapter that manages data transfer between field devices and the ControlNet network infrastructure. The module supports scheduled and unscheduled messaging, diagnostic reporting, and remote network access through its integrated Network Access Port (NAP).
Designed for non-redundant media configurations, the adapter uses a BNC coaxial connection for ControlNet communication and supports transmission rates up to 5 Mbps. Its architecture is suitable for manufacturing systems that require stable real-time communication and centralized PLC control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PLC-5 / 1771 Series |
| Model Number | 1771-ACN15 |
| Product Type | ControlNet Communication Adapter |
| Module Function | Remote I/O Adapter |
| Network Protocol | ControlNet |
| Communication Speed | 5 Mbit/s |
| Network Configuration | Single-Port Non-Redundant Media |
| ControlNet Connector | BNC Coaxial Connector |
| Network Access Port | RJ-45 8-Pin Shielded NAP |
| Compatible Cable Type | RG-6 Quad-Shield Coaxial Cable |
| Backplane Current Draw | 1.0 A at 5V DC |
| Power Dissipation | 5 W |
| Thermal Dissipation | 17.06 BTU/hr |
| Upper Keying Position | 54–56 |
| Lower Keying Position | 16–18 |
| Chassis Compatibility | 1771 I/O Chassis |
| Operating Mode | Remote I/O Communication |
| Weight | 0.91 kg |
| Enclosure Style | Open-Type |
Key Features
-
Supports ControlNet remote I/O communication
-
Single-port non-redundant media configuration
-
Deterministic high-speed network performance
-
Integrated Network Access Port for diagnostics
-
Supports scheduled and unscheduled messaging
-
Designed for PLC-5 distributed I/O systems
-
Compatible with 1771 chassis installations
-
Stable communication for remote automation architectures
Typical Applications
The 1771-ACN15 adapter module is commonly installed in:
-
PLC-5 control systems
-
Distributed manufacturing lines
-
Remote I/O networks
-
Process automation facilities
-
Material handling systems
-
Packaging and assembly equipment
-
Industrial communication infrastructures
-
Legacy ControlNet migration project
FAQ
What is the primary function of the 1771-ACN15?
The module serves as a ControlNet remote I/O adapter for 1771 PLC-5 systems, enabling communication between remote chassis and ControlNet controllers.
Does the module support redundant ControlNet media?
No. The 1771-ACN15 is designed for single-port, non-redundant network configurations.
What type of network cable is required?
The module uses RG-6 quad-shield coaxial cable with BNC connectors for ControlNet communication.
What is the purpose of the NAP port?
The integrated Network Access Port allows local access for diagnostics, configuration, and maintenance tasks.
Which chassis systems are compatible with this adapter?
The module is intended for Allen-Bradley 1771 series I/O chassis platforms.
